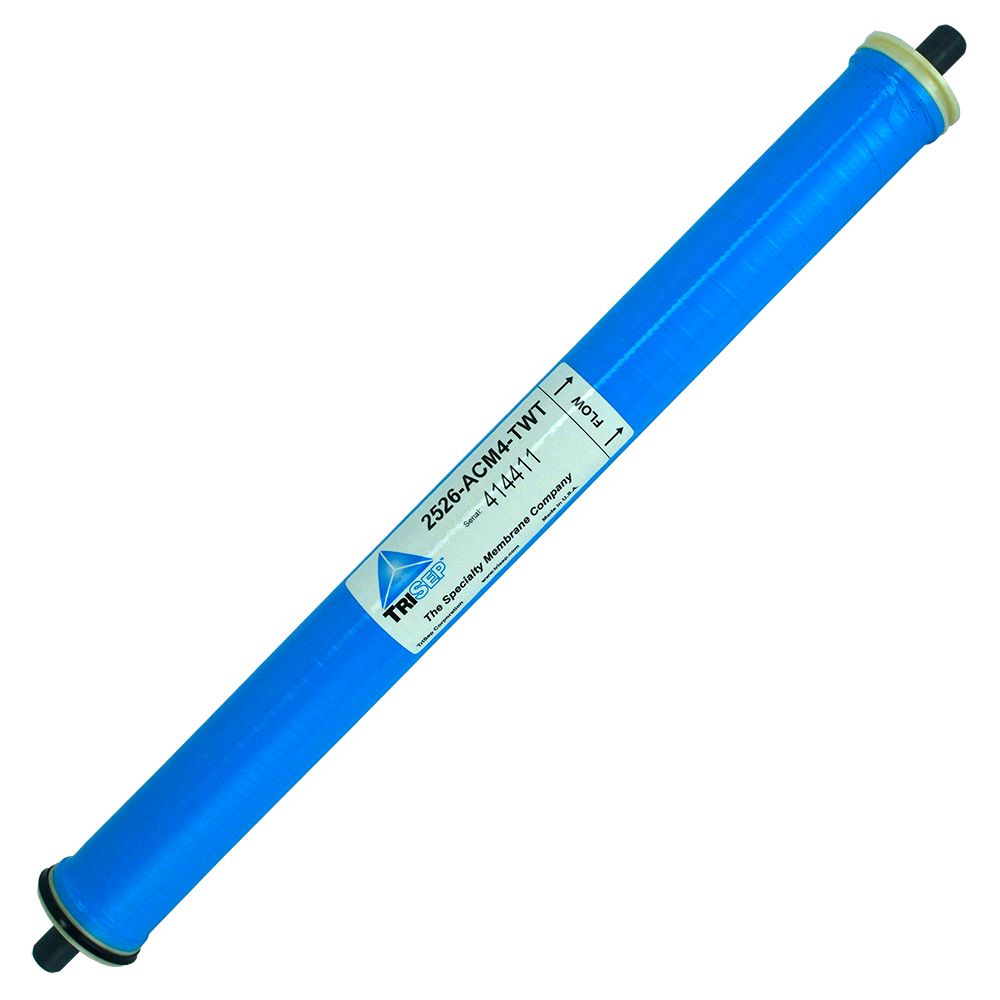

TriSep 2526-ACM4-TWT 600 gpd Tap Water RO Membrane

The TriSep 2526-ACM4-TWT is a high performance RO membrane with flow rates up to 600 gallons per day. The 2526-ACM4-TWT Tap Water Membrane is a fully aromatic polyamide advanced composite membrane and is made in the USA.

Specifications:

Fully Aromatic Polyamide Advanced Composite Membrane
Flow rate: 600 Gallon Per Day
Maximum Operating Temperature: 113°F
Length: 26"
Diameter: 2.5"
Made in the USA

Compatible with:

RO Membranes

66-13151, NP2626-ACMF-TWT, TW30HP-2526

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	15 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Inlet Pressure	100-200 PSI
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	4.0 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Flow Rate	6 GPM (1.4 m3 /hr
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	300psi
Max Temp (°F)	113°F
Minimum Salt Rejection Cl- (%)	0.98
Permeate Flow Rate	600 gpd (2.3)
Permeate Tube Diameter	3/4"
Ph Range	2-10
Stabilized Salt Rejection Cl- (%)	0.99
Diameter	2-1/2"
Shipping Dimensions
Shipping Length	26 in.
Product Weight & Dimensions
Product Length	26 in.
Product Weight (lbs)	2
