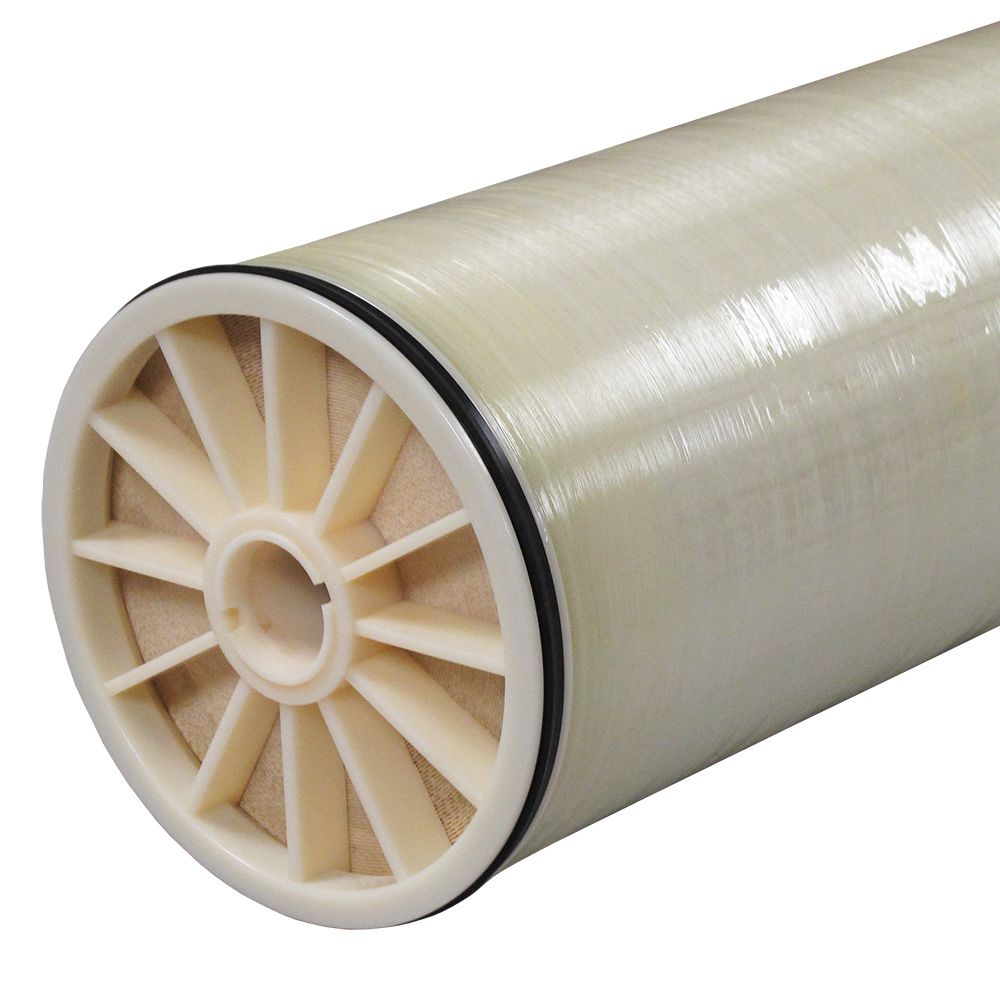

Toray TM820C-370 6000 gpd Sea Water Membrane 8 x 40
Part Number: TM820C-370
Alt. Part Number: CDTM820C370
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Permeate Flow Rate: 6000 gallons per day
- Membrane Type: Polyamide Composite
- Applied Pressure: 800 psi
- Dimensions: 8" x 40"
- Chlorine Tolerance: 0 ppm
- Maximum Operating Temperature: 113° F
- Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal
Product Details | |
---|---|
Active Area | 370 sq. ft. |
Average Nacl Rejection | 0.99 |
Boron Rejection | 0.93 |
Cleaning Ph Range | 1-12 |
Feed Spacer Thickness | 31 mil |
Feed Water Concentration | 32,000 mg/l NaCl |
Feed Water Temperature | 77°F |
Inlet Pressure | 800 PSI |
Max Feed Silt Density Index | 5 Silt Density Index |
Max Pressure Drop | 20 PSI Differential |
Max Pressure (Psi) | 1200 psi |
Max Temp (°F) | 113°F |
Min Flow Rate | 4,800 gpd (18.2 m3 /d) |
Minimum Salt Rejection Cl- (%) | 0.995 |
Permeate Flow Rate | 6,000 gpd (22.7) |
Permeate Tube Diameter | 1-1/8" |
Ph Range | 2-11 |
Recovery Rate | 0.08 |
Stabilized Salt Rejection Cl- (%) | 0.9975 |
Diameter | 8" |
Origin | USA |
Shipping Dimensions | |
Shipping Length | 40 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 42 |
Specifications:
- Permeate Flow Rate: 6000 gallons per day
- Membrane Type: Polyamide Composite
- Applied Pressure: 800 psi
- Dimensions: 8" x 40"
- Chlorine Tolerance: 0 ppm
- Maximum Operating Temperature: 113° F
- Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal
Product Details | |
---|---|
Active Area | 370 sq. ft. |
Average Nacl Rejection | 0.99 |
Boron Rejection | 0.93 |
Cleaning Ph Range | 1-12 |
Feed Spacer Thickness | 31 mil |
Feed Water Concentration | 32,000 mg/l NaCl |
Feed Water Temperature | 77°F |
Inlet Pressure | 800 PSI |
Max Feed Silt Density Index | 5 Silt Density Index |
Max Pressure Drop | 20 PSI Differential |
Max Pressure (Psi) | 1200 psi |
Max Temp (°F) | 113°F |
Min Flow Rate | 4,800 gpd (18.2 m3 /d) |
Minimum Salt Rejection Cl- (%) | 0.995 |
Permeate Flow Rate | 6,000 gpd (22.7) |
Permeate Tube Diameter | 1-1/8" |
Ph Range | 2-11 |
Recovery Rate | 0.08 |
Stabilized Salt Rejection Cl- (%) | 0.9975 |
Diameter | 8" |
Origin | USA |
Shipping Dimensions | |
Shipping Length | 40 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 42 |
