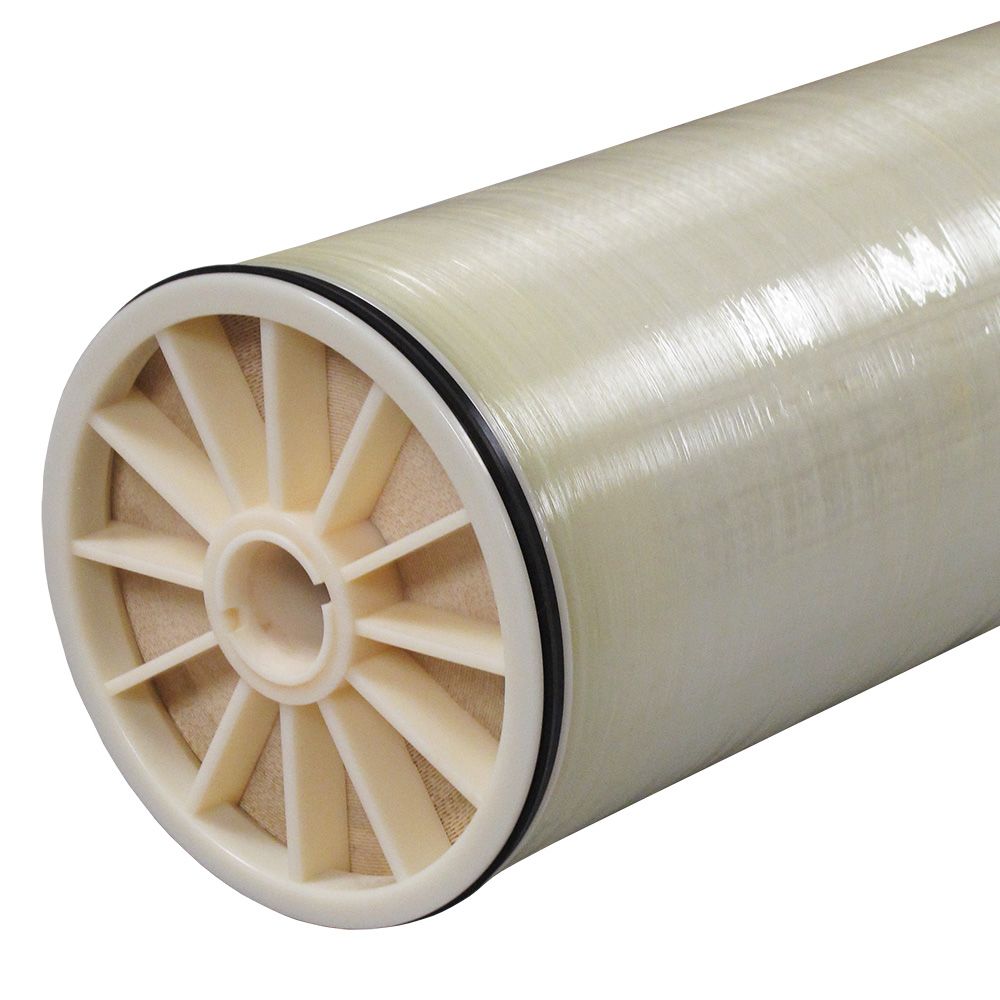

Toray TM720D-370 10200 gpd Brackish Water Membrane 8 x 40

The Toray TM720D-370 10,200 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:

Dimensions: 8" x 40"
Applied Pressure: 225 psi
Chlorine Tolerance: 0 ppm
Membrane Type: Polyamide Composite
Maximum Operating Temperature: 113° F
Permeate Flow Rate: 10,200 gallons per day
Applications: Tap Water, Brackish Water, Well Water, & Surface Water

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	370 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Material Of Construction	Cross-Linked Polyamide
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	20 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.9965
Permeate Flow Rate	10,200 gpd (38.6)
Permeate Tube Diameter	1-1/8"
Ph Range	2-11
Recovery Rate	0.15
Diameter	8"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	38
