Colder Products

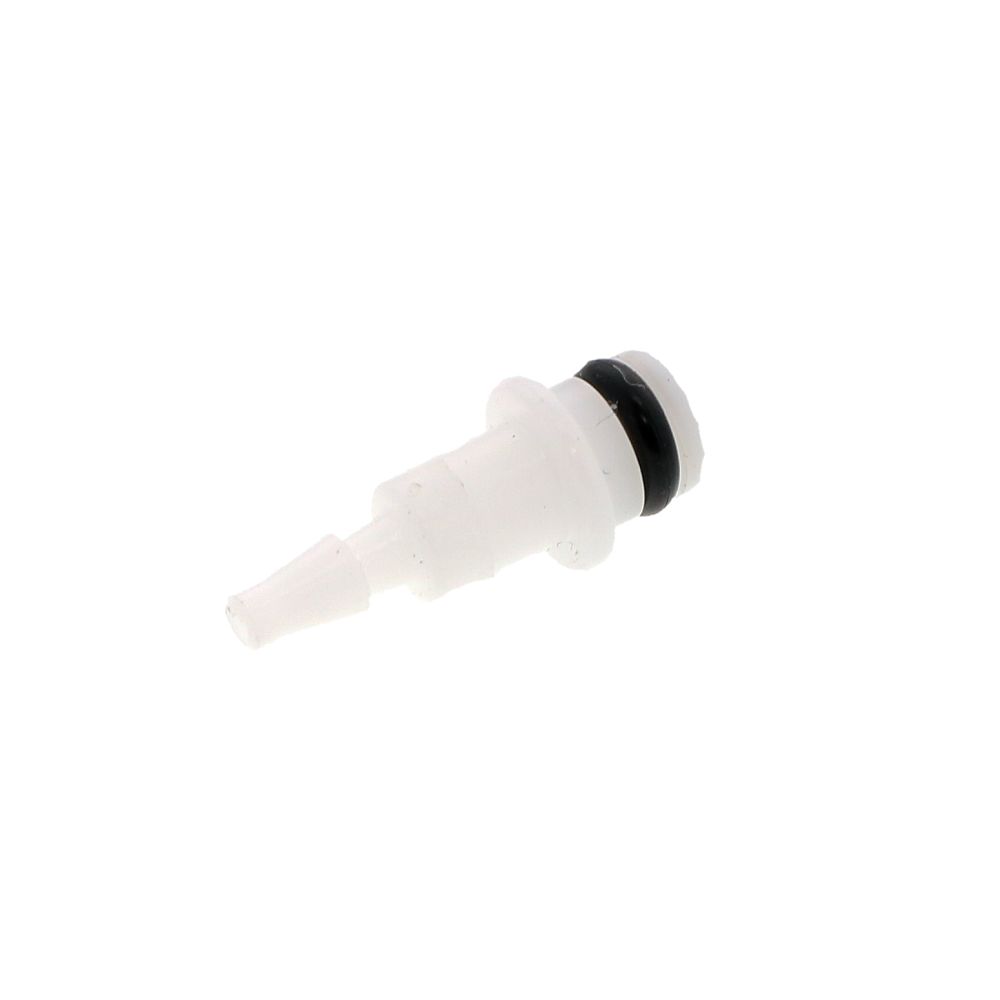

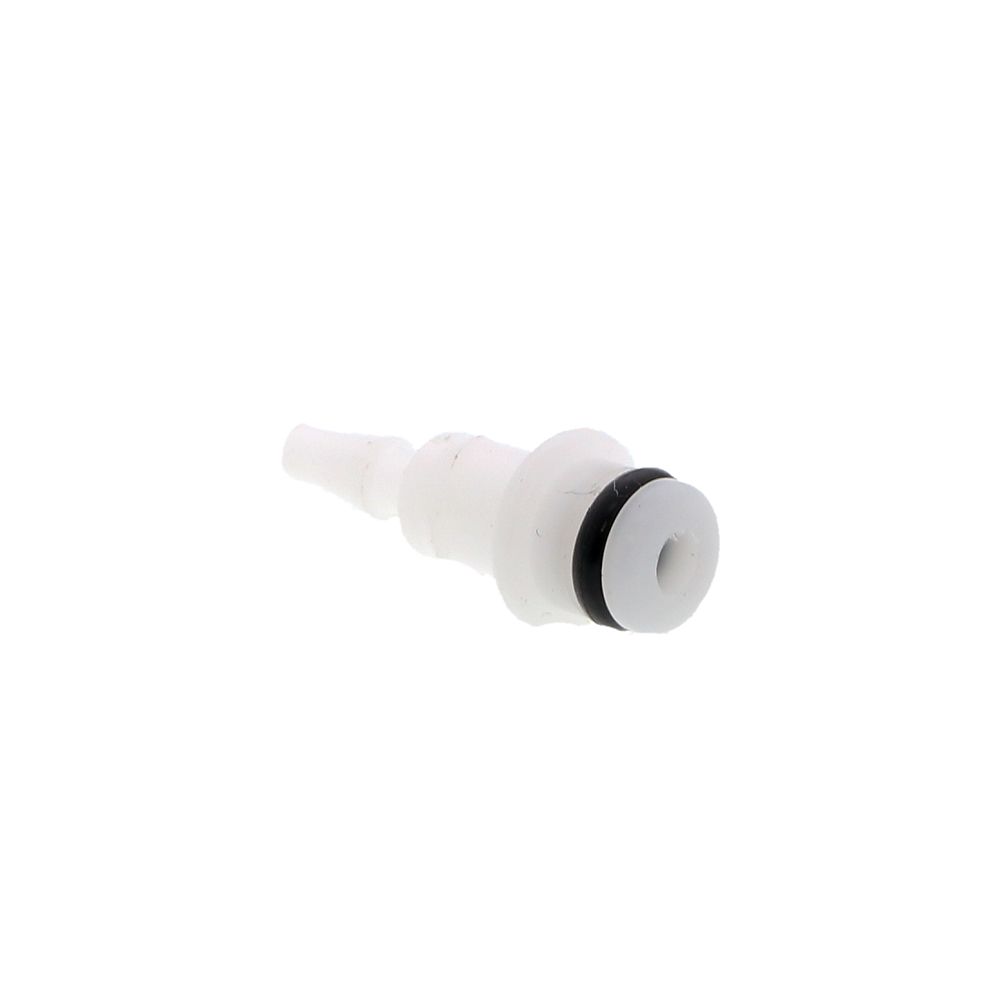

TMFM3MWHT Non-Valved Hose Barb Fitting Insert 3mm ID Barb

Part Number: TMFM3MWHT

In Stock

out of stock

In Stock

$1.61

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N




Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3mm ID

Application

Water

Bag Quantity

100

Body Material

Acetal Copolymer

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Acetal

Seal Material

Buna-N

Valve Type

Non-Valved


TMFM3MWHT




The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Natural
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N



Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3mm ID

Application

Water

Bag Quantity

100

Body Material

Acetal Copolymer

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Acetal

Seal Material

Buna-N

Valve Type

Non-Valved
