Colder Products

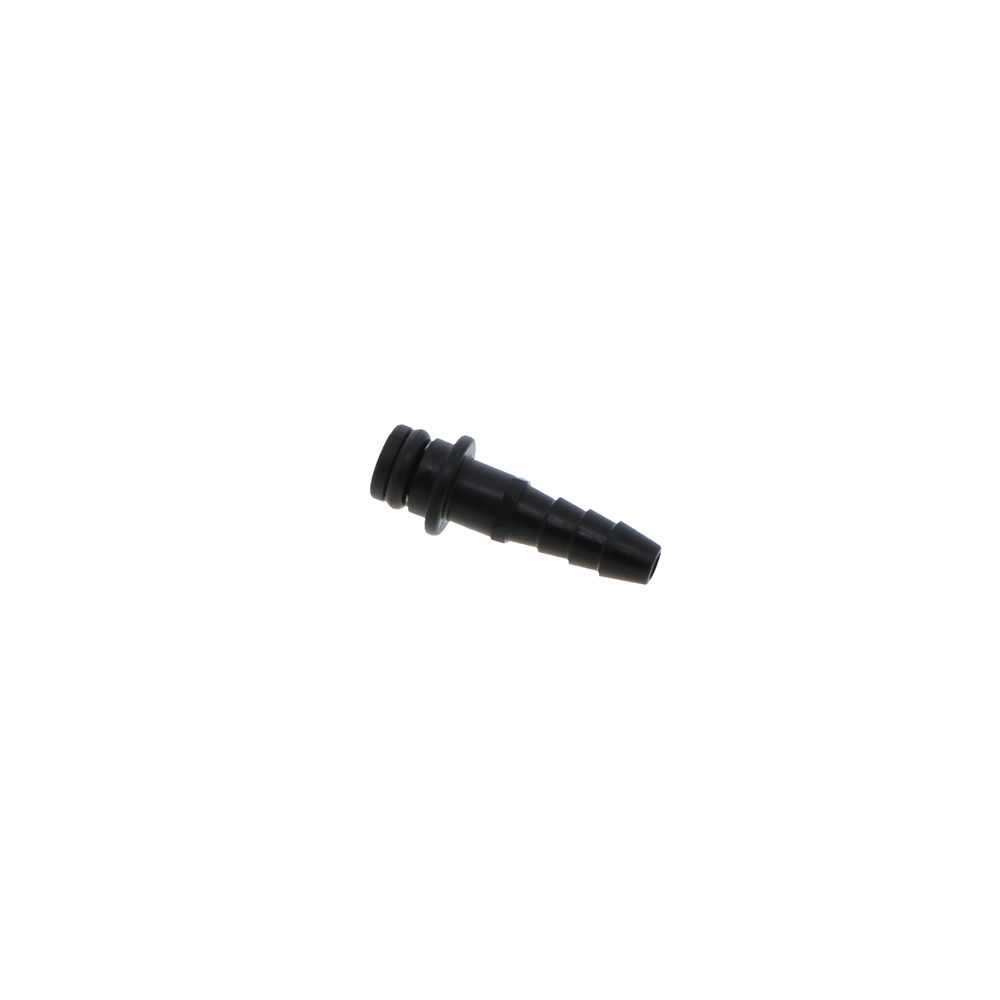

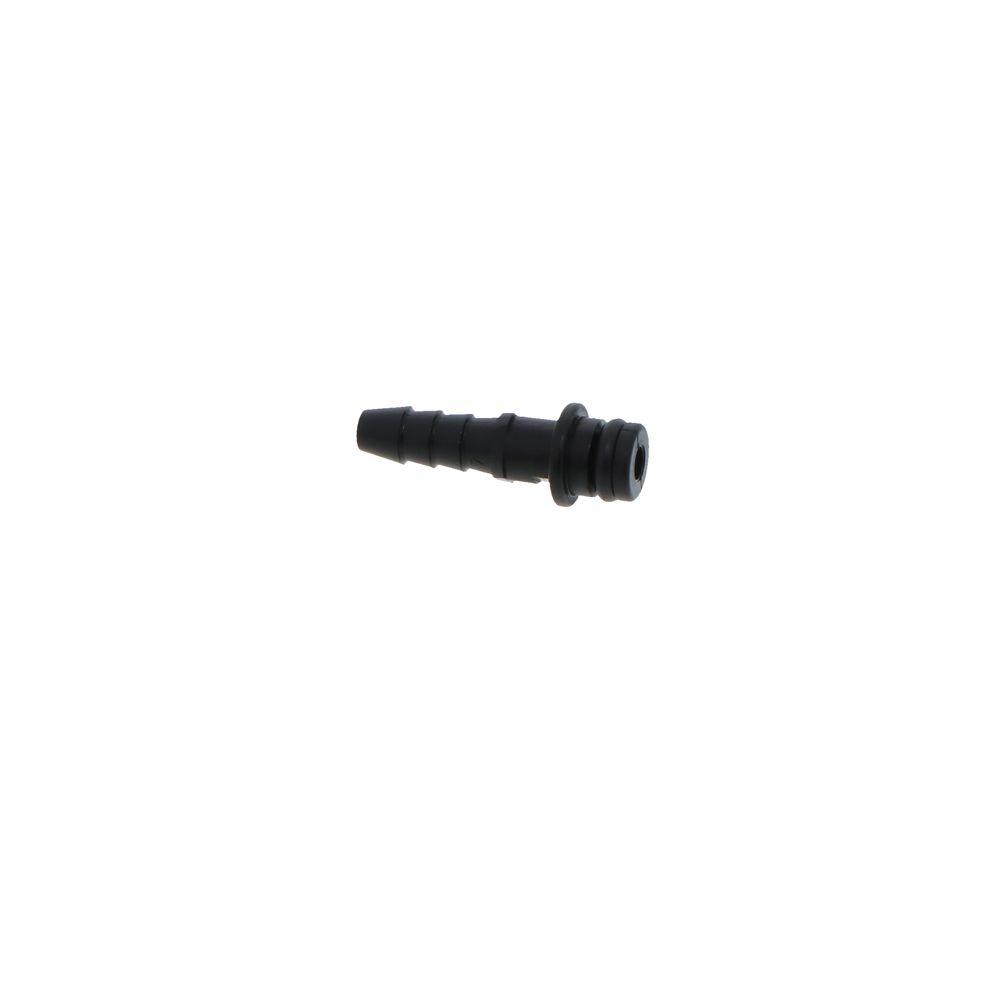

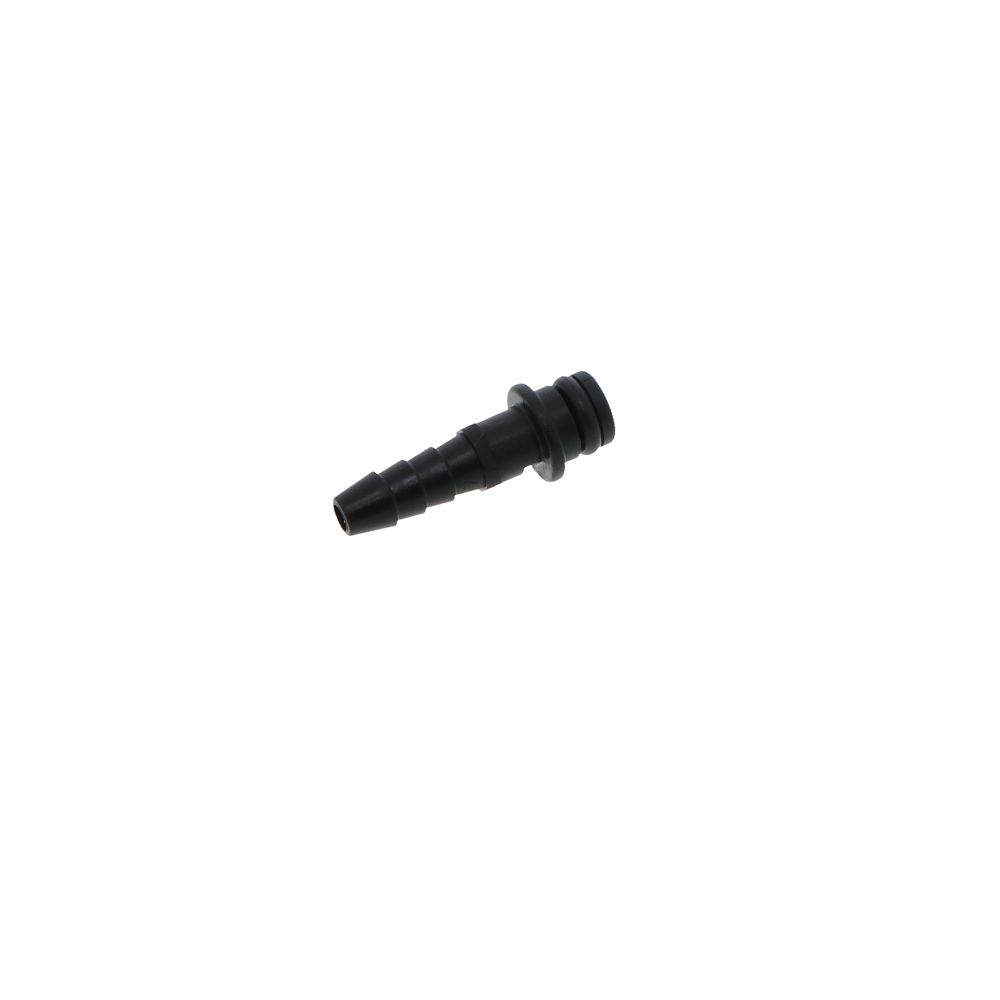

TMF02 Non-Valved Hose Barb Fitting Insert 1/8 ID Barb

Part Number: TMF02

In Stock

out of stock

In Stock

$1.24

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N


Details

Series

Tentube

Barb Size

1/8"

Bag Quantity

100

Body Material

Acetal

Color / Finish

Black, Molded Black

Nut / Fitting Material

Acetal

O Rings

Buna-N

Operating Pressure Range

Vacuum to 100psi, 6.9 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Non-Valved


TMF02




The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N

Details

Series

Tentube

Barb Size

1/8"

Bag Quantity

100

Body Material

Acetal

Color / Finish

Black, Molded Black

Nut / Fitting Material

Acetal

O Rings

Buna-N

Operating Pressure Range

Vacuum to 100psi, 6.9 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Non-Valved
