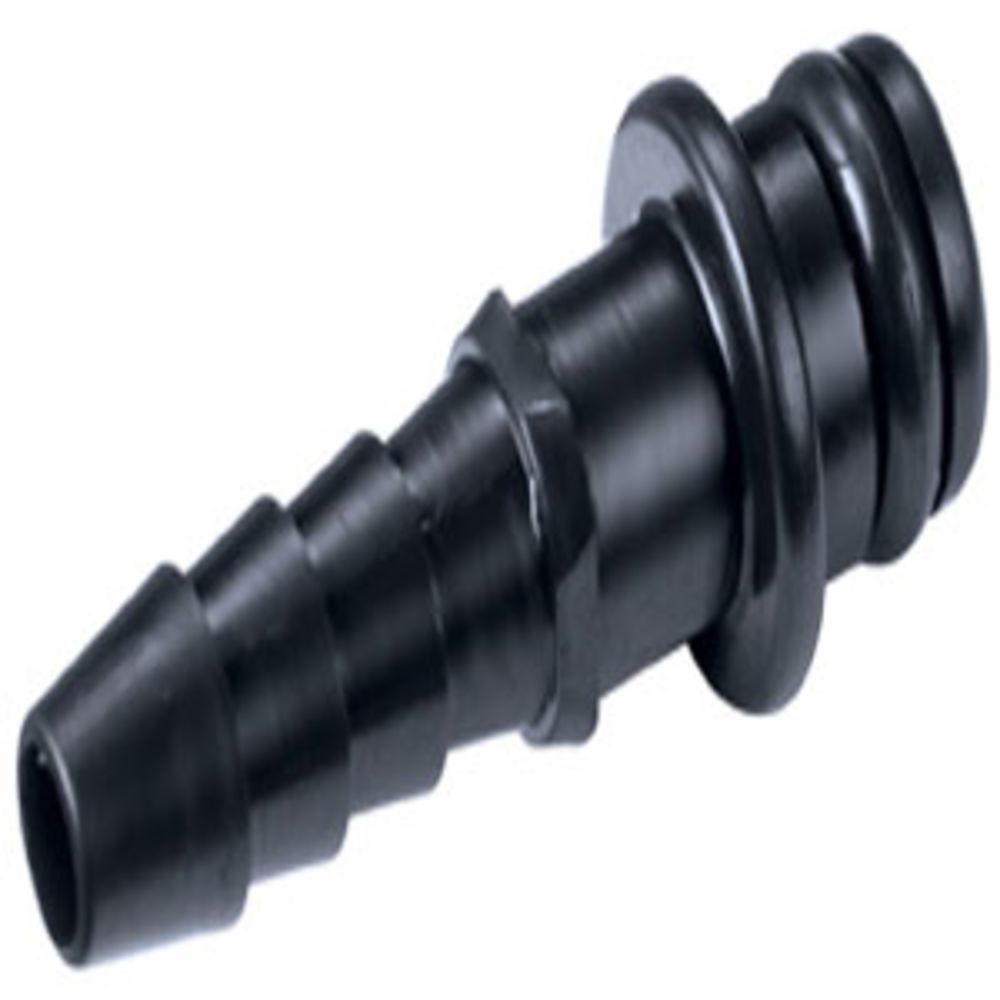

TMF01MWHT Non-Valved Hose Barb Fitting Insert 1/16 ID Barb

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:

Material: Acetal
Material Finish: Natural
Valve Option: Non-Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 100psi, 6.9 bar per line
Seal Options: BUNA-N

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Nut / Fitting Material	Acetal
Seal Material	Buna-N
Series	Tentube
Shape	Straight
Valve Type	Non-Valved
Color / Finish	Black
Type	Coupling Insert
