Colder Products

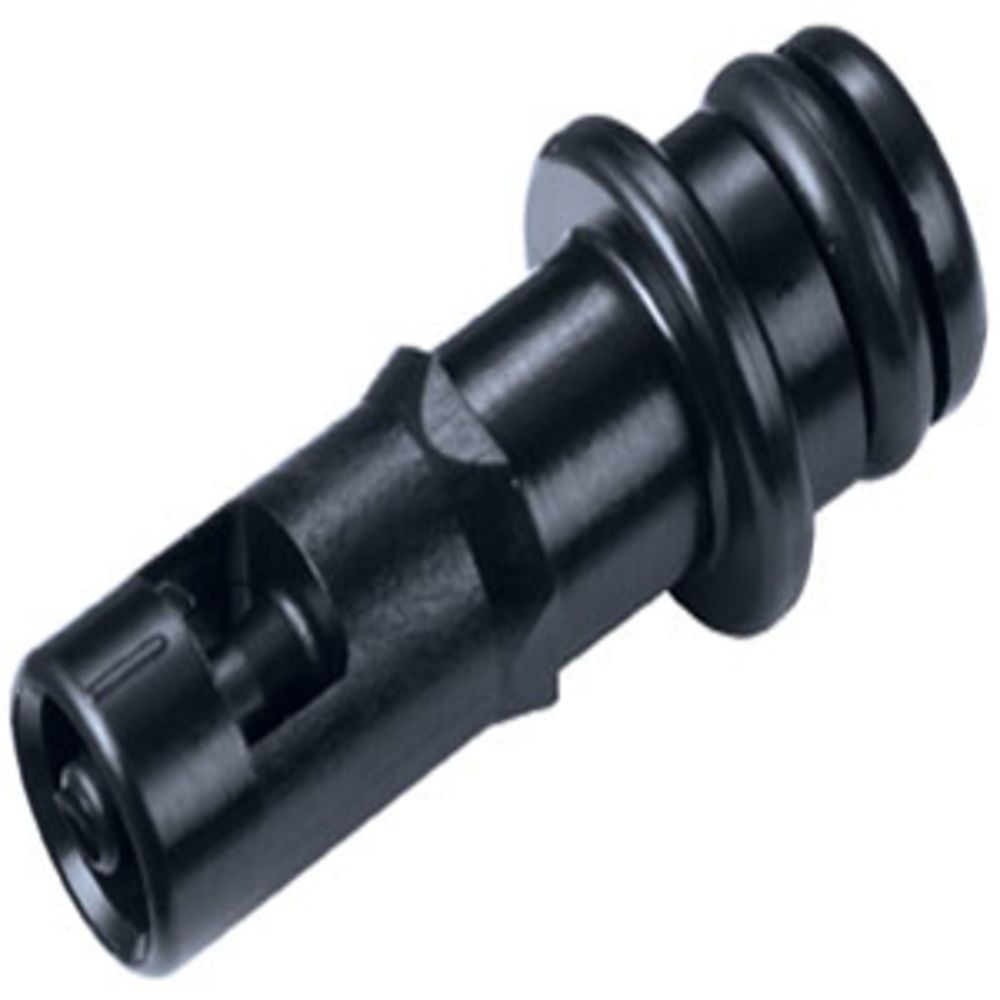

TMF01 Non-Valved Hose Barb Fitting Insert 1/16 ID Barb

Part Number: TMF01

In Stock

out of stock

In Stock

$1.31

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N




Weight & Dimensions

Weight (lbs)

0.3

Details

Application

Water

Barb Size

1/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

Tentube

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Black

Type

Coupling Insert


TMF01




The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line
  • Seal Options: BUNA-N



Weight & Dimensions

Weight (lbs)

0.3

Details

Application

Water

Barb Size

1/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

Tentube

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Black

Type

Coupling Insert

Documentation
TMF01
