GE Water

TFM Encapsulated Module (75 GPD) W/ Check Valve, NO Flow Control

Part Number: TFM-75EN

Alt. Part Number: 1220539

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Pentair GRO-75EN TLC Encapsulated Membrane 75gpd w/Check Valve as a substitute.

Features:
  • ANSI/NSF 58 listed for material safety, structural integrity & for performance
  • Color-coded ports and quick connect fittings for easy connection to an existing system
  • Check-valve
  • Membrane-separation technology
  • Thin-Film Membrane
  • NOTE: This Membrane is not chlorine resistant. A CTO reduction water filter must be used before the RO membrane if chlorine is present in your water supply

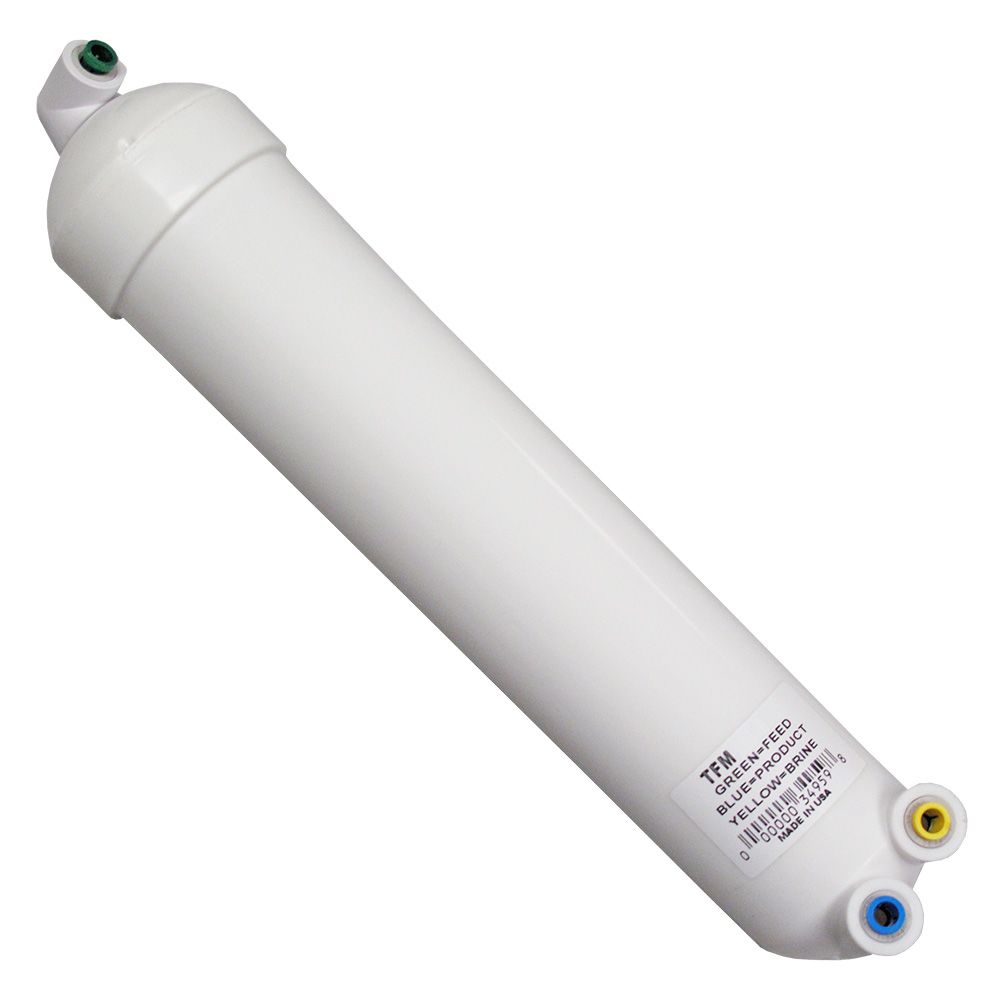

GE TFM-75-CV is an 75 Gallon per Day Encapsulated Reverse Osmosis Membrane which includes a Control Valve. It has a built-in permeate check-valve which eliminates the need for additional fittings and reduces the potential for water leaks within the system. Unlike conventional filtration which can be maintenance-intensive, membrane-separation technology uses crossflow filtration where impurities are captured on the membrane and are constantly swept away by the concentrate stream. Thus the membrane surface is continuously cleaned, which prolongs the life of the membrane and reduces maintenance costs.The spiral-wound membrane element is constructed of one or more membrane envelopes which are wound around a perforated central tube. The permeate water passes through the reverse osmosis membrane into the envelope and spirals inward to the central tube.



Compatible with:
Encapsulated Membrane Elements (Dry)1220539
VertexMH-4206

Weight & Dimensions

Weight (lbs)

1.65

Approx Length (Inches)

13-1/4"

Details

Max Temp (°F)

120

Max Pressure (Psi)

90

Capacity

24-36 Months

Cartridge Style

Encapsulated

Diameter

2-1/2"

Features

Check Valve

Flow Rate

75 GPD

Average Nacl Rejection

0.96

Warranty & Certifications

Certifications

ANSI/NSF 58


TFM




Features:
  • ANSI/NSF 58 listed for material safety, structural integrity & for performance
  • Color-coded ports and quick connect fittings for easy connection to an existing system
  • Check-valve
  • Membrane-separation technology
  • Thin-Film Membrane
  • NOTE: This Membrane is not chlorine resistant. A CTO reduction water filter must be used before the RO membrane if chlorine is present in your water supply
GE TFM-75-CV is an 75 Gallon per Day Encapsulated Reverse Osmosis Membrane which includes a Control Valve. It has a built-in permeate check-valve which eliminates the need for additional fittings and reduces the potential for water leaks within the system. Unlike conventional filtration which can be maintenance-intensive, membrane-separation technology uses crossflow filtration where impurities are captured on the membrane and are constantly swept away by the concentrate stream. Thus the membrane surface is continuously cleaned, which prolongs the life of the membrane and reduces maintenance costs.The spiral-wound membrane element is constructed of one or more membrane envelopes which are wound around a perforated central tube. The permeate water passes through the reverse osmosis membrane into the envelope and spirals inward to the central tube.



Compatible with:
Encapsulated Membrane Elements (Dry)1220539
VertexMH-4206

NOTE: This item is discontinued. We recommend the Pentair GRO-75EN TLC Encapsulated Membrane 75gpd w/Check Valve as a substitute.

Weight & Dimensions

Weight (lbs)

1.65

Approx Length (Inches)

13-1/4"

Details

Max Temp (°F)

120

Max Pressure (Psi)

90

Capacity

24-36 Months

Cartridge Style

Encapsulated

Diameter

2-1/2"

Features

Check Valve

Flow Rate

75 GPD

Average Nacl Rejection

0.96

Warranty & Certifications

Certifications

ANSI/NSF 58

Documentation
TFM
