SUEZ

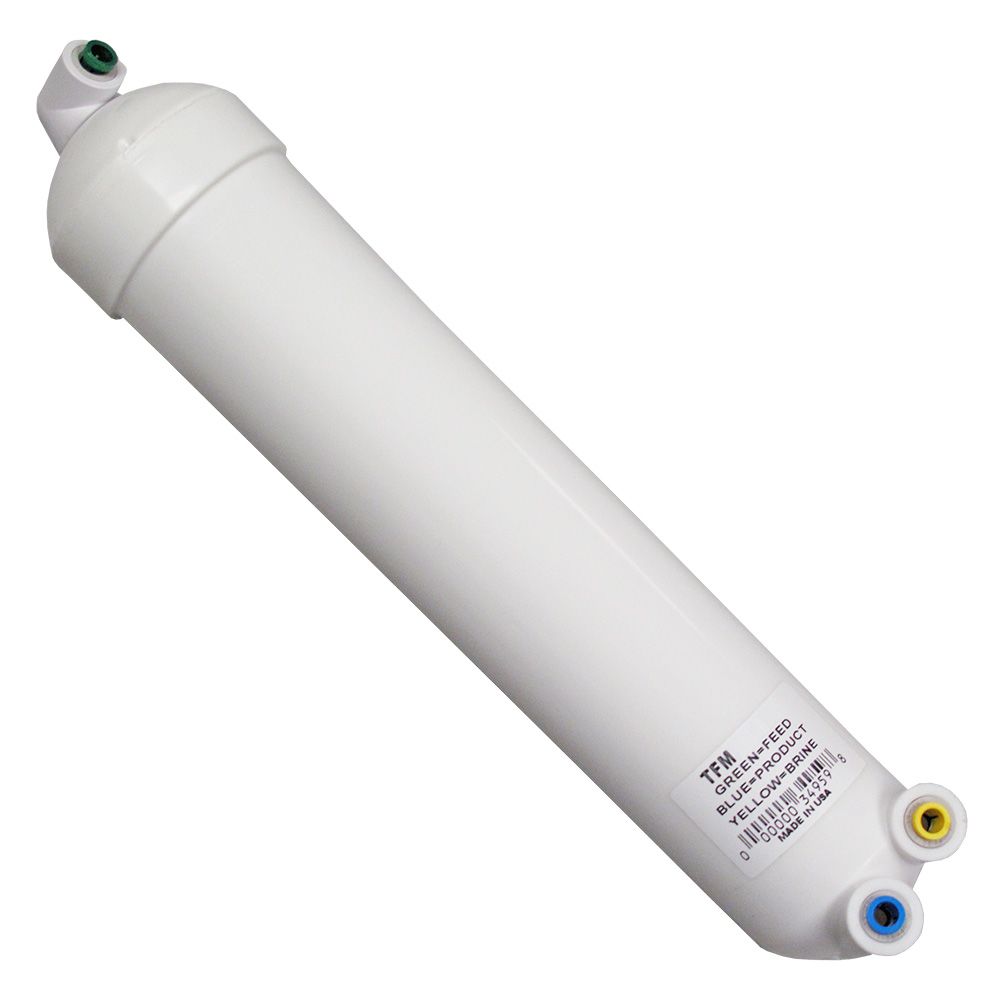

TFM Encapsulated Module (75 GPD) W/ Check Valve & Flow Control

Part Number: TFM-75EB

Alt. Part Number: 1223077, GRO-75EB

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


SUEZ TFM-75-CV is a 75 Gallon per Day Encapsulated Reverse Osmosis Membrane which includes a Control Valve & Flow Control. It has a built-in permeate check-valve which eliminates the need for additional fittings and reduces the potential for water leaks within the system. Unlike conventional filtration which can be maintenance-intensive, membrane-separation technology uses crossflow filtration where impurities are captured on the membrane and are constantly swept away by the concentrate stream. Thus the membrane surface is continuously cleaned, which prolongs the life of the membrane and reduces maintenance costs.The spiral-wound membrane element is constructed of one or more membrane envelopes which are wound around a perforated central tube. The permeate water passes through the reverse osmosis membrane into the envelope and spirals inward to the central tube.
Features:
  • ANSI/NSF 58 listed for material safety, structural integrity & for performance
  • Color-coded ports and quick connect fittings for easy connection to an existing system
  • Check-valve and flow control
  • Membrane-separation technology
  • Thin-Film Membrane
NOTE: This Membrane is not chlorine resistant. A CTO reduction water filter must be used before the RO membrane if chlorine is present in your water supply


Compatible with:
VertexMH-4206, ETFC-75

Weight & Dimensions

Approx Length (Inches)

13-1/4"

Weight (lbs)

1.65

Details

Average Nacl Rejection

0.96

Capacity

24-36 Months

Features

Check Valve, Flow Control

Max Pressure (Psi)

90

Max Temp (°F)

120

Cartridge Style

Encapsulated

Change Frequency

24-36 Months

Diameter

2-1/2"

Flow Rate

75 GPD

Warranty & Certifications

Certifications

ANSI/NSF 58


TFM





SUEZ TFM-75-CV is a 75 Gallon per Day Encapsulated Reverse Osmosis Membrane which includes a Control Valve & Flow Control. It has a built-in permeate check-valve which eliminates the need for additional fittings and reduces the potential for water leaks within the system. Unlike conventional filtration which can be maintenance-intensive, membrane-separation technology uses crossflow filtration where impurities are captured on the membrane and are constantly swept away by the concentrate stream. Thus the membrane surface is continuously cleaned, which prolongs the life of the membrane and reduces maintenance costs.The spiral-wound membrane element is constructed of one or more membrane envelopes which are wound around a perforated central tube. The permeate water passes through the reverse osmosis membrane into the envelope and spirals inward to the central tube.
Features:
  • ANSI/NSF 58 listed for material safety, structural integrity & for performance
  • Color-coded ports and quick connect fittings for easy connection to an existing system
  • Check-valve and flow control
  • Membrane-separation technology
  • Thin-Film Membrane
NOTE: This Membrane is not chlorine resistant. A CTO reduction water filter must be used before the RO membrane if chlorine is present in your water supply


Compatible with:
VertexMH-4206, ETFC-75

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

13-1/4"

Weight (lbs)

1.65

Details

Average Nacl Rejection

0.96

Capacity

24-36 Months

Features

Check Valve, Flow Control

Max Pressure (Psi)

90

Max Temp (°F)

120

Cartridge Style

Encapsulated

Change Frequency

24-36 Months

Diameter

2-1/2"

Flow Rate

75 GPD

Warranty & Certifications

Certifications

ANSI/NSF 58

Documentation
TFM
