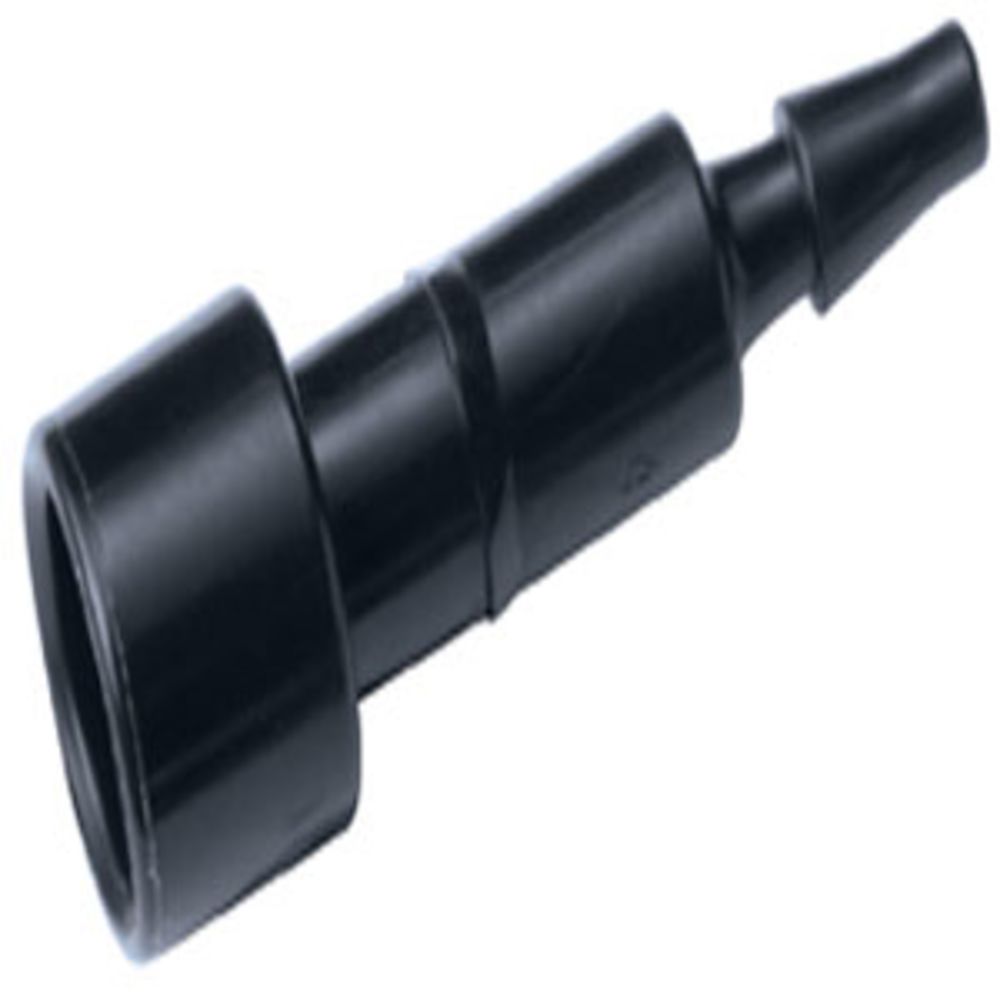

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.
Specifications:
Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Color: Black
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
Weight & Dimensions
Weight (lbs) | 0.3 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nut / Fitting Material | Acetal |
Series | Tentube |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | Black |
Type | Coupling Body |
The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.
Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Color: Black
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
Weight & Dimensions
Weight (lbs) | 0.3 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Nut / Fitting Material | Acetal |
Series | Tentube |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | Black |
Type | Coupling Body |
