Colder Products

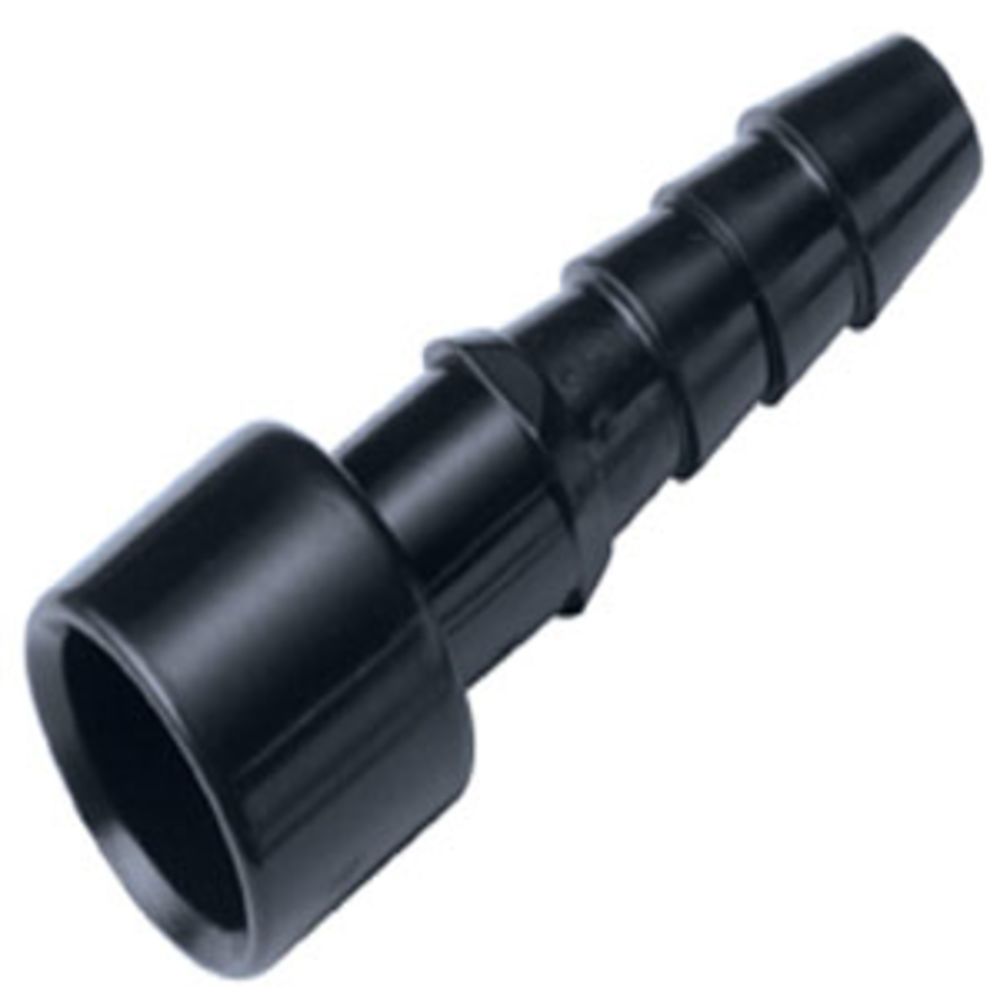

TFF02 Non-Valved Hose Barb Fitting Body 1/8 ID Barb

Part Number: TFF02

In Stock

out of stock

In Stock

$0.92

The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line




Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

100

Body Material

Acetal Copolymer

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Acetal

Spring

316 stainless steel

Valve Type

Non-Valved


TFF02




The Tentube™ coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.

Specifications:
  • Material: Acetal
  • Material Finish: Molded Black
  • Color: Black
  • Valve Option: Non-Valved
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 100psi, 6.9 bar per line



Details

Series

Tentube

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

100

Body Material

Acetal Copolymer

Color / Finish

Black

Mounting Options

Free Floating

Nut / Fitting Material

Acetal

Spring

316 stainless steel

Valve Type

Non-Valved

Documentation
TFF02
