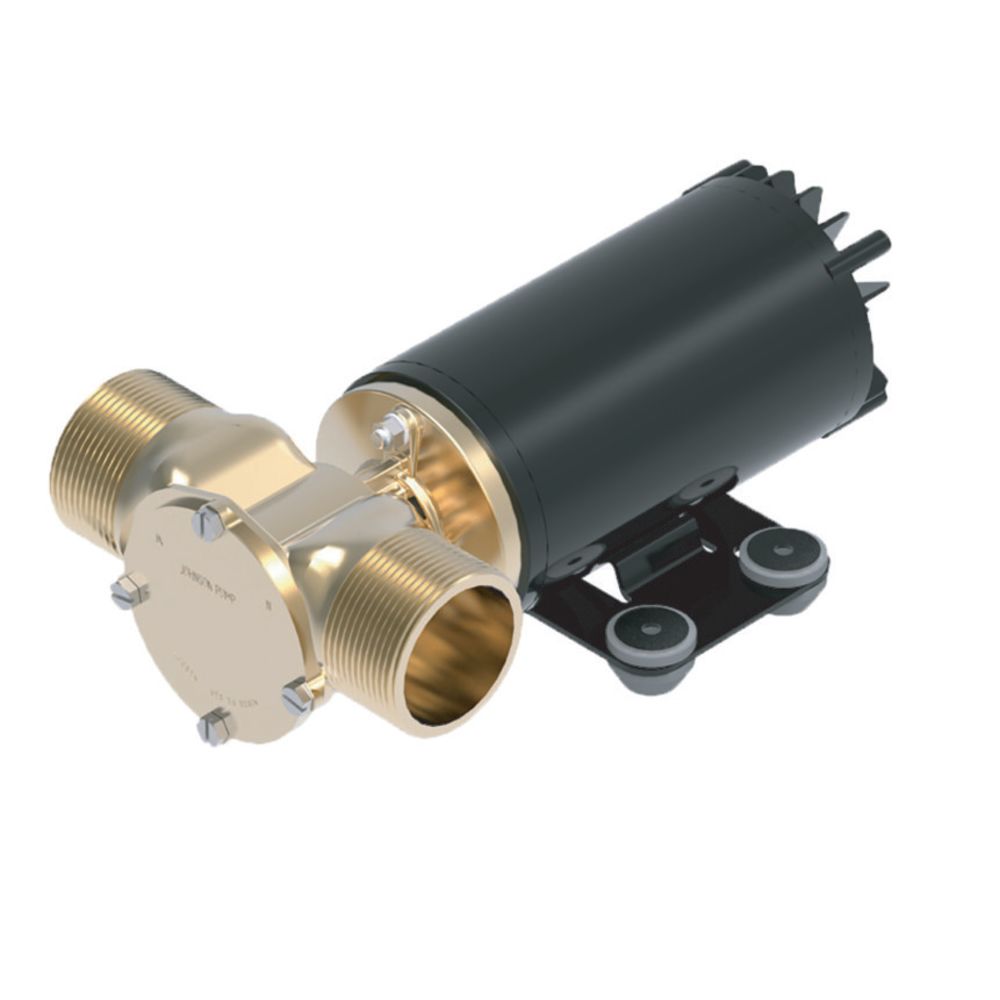

TALULAH HF (HIGH FLOW) BALLAST PUMP 30 GPM 12V
Part Number: 10-24939-18
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Built in Thermal Overload Protection with automatic reset upon cooling
- Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
- Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
- Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
- High Performance and High Output for intermittent duty cycles
- Professional installation recommended (Acc. to ISO 10133)
- Best used with fully charged battery banks and alternators running
- Limited 3 Year Warranty
*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.
Technical Data
Talulah Impeller Kit | 09-849P-2 |
---|---|
Flow | 30 GPM (1ft lift) 1 1/2" Hose |
Voltage | 13.6VDC |
Connection | External 1 1/2" NPTF |
Minimum Hose Size | 1 1/2" (Ø38 mm) |
Standards | Meets ISO 8846 & SAE J1171 |
Degree of Protection | IP 54 |
Wire Size | Min. 12 AWG |
Fuse Size | 50A |
Amp Draw @ Pumping | 25A |
Amp Draw @ Reversal | Up to 45A |
Product Catalog
SPX Flow Product CatalogProduct Details | |
---|---|
Inlet Connection | 1-1/2" NPTF (female) |
Outlet Connection | 1-1/2" NPTF (female) |
Flow Rate | 30 GPM |
Voltage | 13.6VDC |
Product Weight & Dimensions | |
Product Weight (lbs) | 4 |
Features:
- Built in Thermal Overload Protection with automatic reset upon cooling
- Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
- Retrofit Ready for existing wake and watersport boats with approved electrical and plumbing specifications
- Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
- High Performance and High Output for intermittent duty cycles
- Professional installation recommended (Acc. to ISO 10133)
- Best used with fully charged battery banks and alternators running
- Limited 3 Year Warranty
*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.
Technical Data
Talulah Impeller Kit | 09-849P-2 |
---|---|
Flow | 30 GPM (1ft lift) 1 1/2" Hose |
Voltage | 13.6VDC |
Connection | External 1 1/2" NPTF |
Minimum Hose Size | 1 1/2" (Ø38 mm) |
Standards | Meets ISO 8846 & SAE J1171 |
Degree of Protection | IP 54 |
Wire Size | Min. 12 AWG |
Fuse Size | 50A |
Amp Draw @ Pumping | 25A |
Amp Draw @ Reversal | Up to 45A |
Product Catalog
SPX Flow Product CatalogProduct Details | |
---|---|
Inlet Connection | 1-1/2" NPTF (female) |
Outlet Connection | 1-1/2" NPTF (female) |
Flow Rate | 30 GPM |
Voltage | 13.6VDC |
Product Weight & Dimensions | |
Product Weight (lbs) | 4 |
