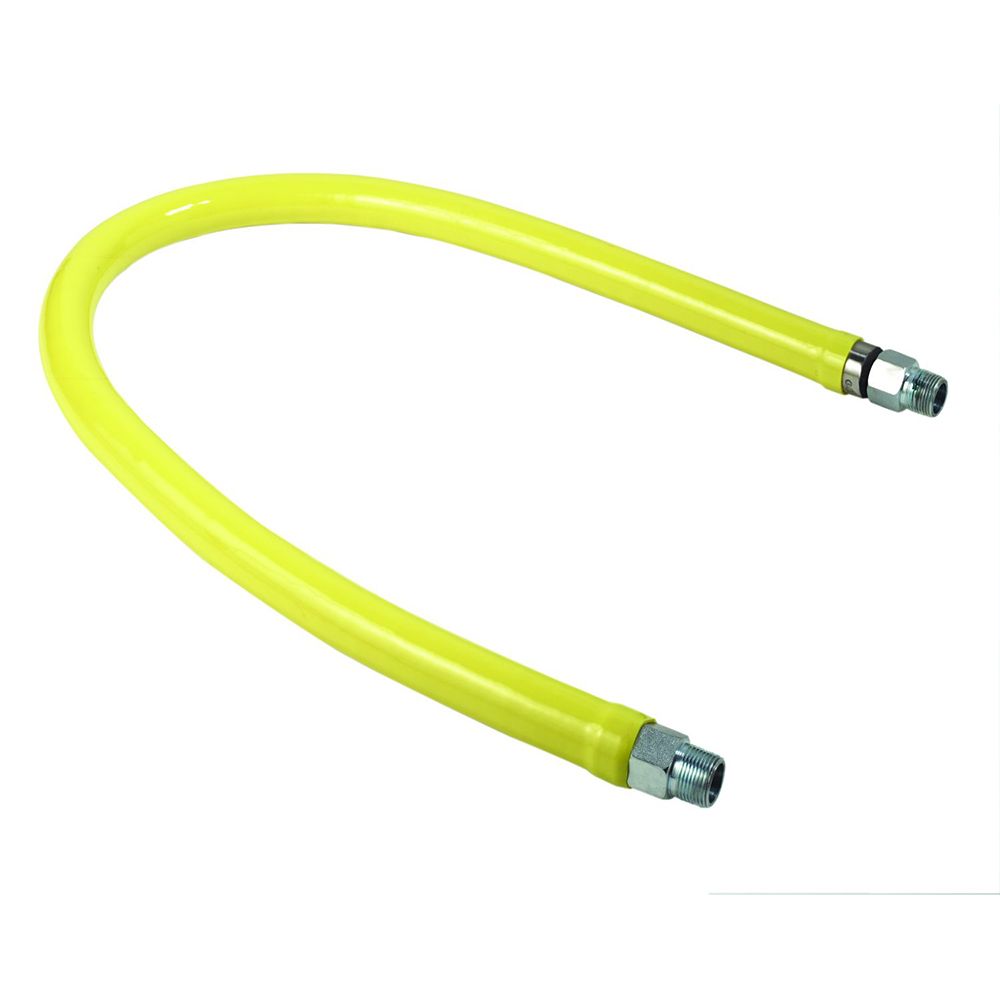

T&S Brass HG-2C-72 Safe-T-Link Gas Hose, FreeSpin, 1/2 NPT x 72"L

Part Number: HG-2C-72

In Stock

out of stock

In Stock

$108.48

HG-2 Series is the ultimate in efficiency and safety.

Standard features include:
Features:
  • FreeSpin rotating fittings
  • Welded fitting connections
  • Safe stainless braid
  • Extruded coating
  • 1/2" N.P.T. Male to Male Thread
  • 72" long hose
Minimum B.T.U. Capacity (In Thousands):
  • Without Swivelink Connectors: 86
  • With Swivelink Connectors: 84


Weight & Dimensions

Approx Length (Inches)

72 Inches

Approx Weight

4.00 Lbs

Details

Capacity

86,000 BTU/ hr min

Material Of Construction

Extruded coated stainless steel braids

Max Operating Pressure

1/2 PSI

Max Operating Temperature

350 Degrees Fahrenheit

Origin

USA

Inner Diameter

1/2 Inches

Warranty & Certifications

Certifications

ANSI Z21.69/CSA 6.16 and NSF 2

Warranty

Five Year (Limited)


T&S




HG-2 Series is the ultimate in efficiency and safety.

Standard features include:
Features:
  • FreeSpin rotating fittings
  • Welded fitting connections
  • Safe stainless braid
  • Extruded coating
  • 1/2" N.P.T. Male to Male Thread
  • 72" long hose
Minimum B.T.U. Capacity (In Thousands):
  • Without Swivelink Connectors: 86
  • With Swivelink Connectors: 84

Weight & Dimensions

Approx Length (Inches)

72 Inches

Approx Weight

4.00 Lbs

Details

Capacity

86,000 BTU/ hr min

Material Of Construction

Extruded coated stainless steel braids

Max Operating Pressure

1/2 PSI

Max Operating Temperature

350 Degrees Fahrenheit

Origin

USA

Inner Diameter

1/2 Inches

Warranty & Certifications

Certifications

ANSI Z21.69/CSA 6.16 and NSF 2

Warranty

Five Year (Limited)
