T&S Brass

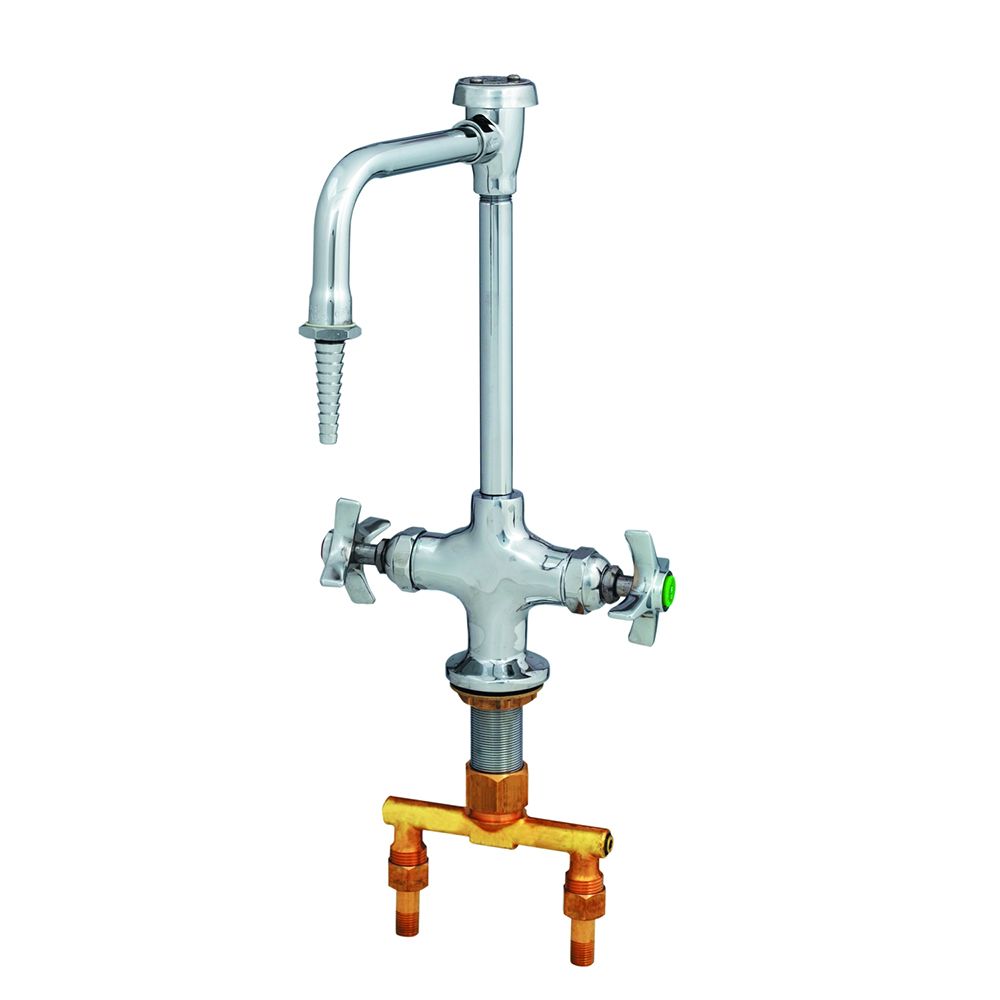

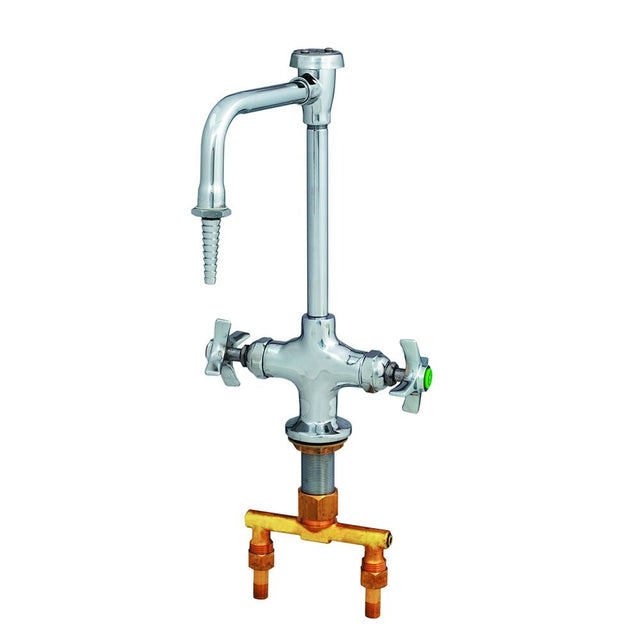

T&S Brass BL-5700-08 Deck Mount Lab Mixing Faucet With Vacuum Breaker Rigid Gooseneck

Part Number: BL-5700-08

In Stock

out of stock

In Stock

$231.12

Specifications:
  • Double ledge faucet with vacuum breaker gooseneck
  • 1/4" IPS union tailpieces on 4" (102mm) centers
  • 3/8" NPSM gooseneck with 5-7/16" (138mm) spread
  • 1-1/8" (29mm) shank diameter
  • 12-3/8" (314mm) height
  • Plastic mounting gasket included


Weight & Dimensions

Approx Height (Inches)

12-3/8 Inches

Approx Length (Inches)

16 Inches

Approx Weight

6.27 Lbs

Details

Shank

1-1/8 Inches

Base Size

4 Inches

Color / Finish

Chrome Plated Brass

Max Flow Rate

4.21 Gallons Per Minute

Operating Pressure Range

20-125 PSI

Operating Temperature Range

40-140 Degrees Fahrenheit

Origin

USA

Warranty & Certifications

Certifications

NSF/ANSI 61; ASME A112.18.1; CSA B125.1

Warranty

12 months


T&S




Specifications:
  • Double ledge faucet with vacuum breaker gooseneck
  • 1/4" IPS union tailpieces on 4" (102mm) centers
  • 3/8" NPSM gooseneck with 5-7/16" (138mm) spread
  • 1-1/8" (29mm) shank diameter
  • 12-3/8" (314mm) height
  • Plastic mounting gasket included

Weight & Dimensions

Approx Height (Inches)

12-3/8 Inches

Approx Length (Inches)

16 Inches

Approx Weight

6.27 Lbs

Details

Shank

1-1/8 Inches

Base Size

4 Inches

Color / Finish

Chrome Plated Brass

Max Flow Rate

4.21 Gallons Per Minute

Operating Pressure Range

20-125 PSI

Operating Temperature Range

40-140 Degrees Fahrenheit

Origin

USA

Warranty & Certifications

Certifications

NSF/ANSI 61; ASME A112.18.1; CSA B125.1

Warranty

12 months
