T&S Brass

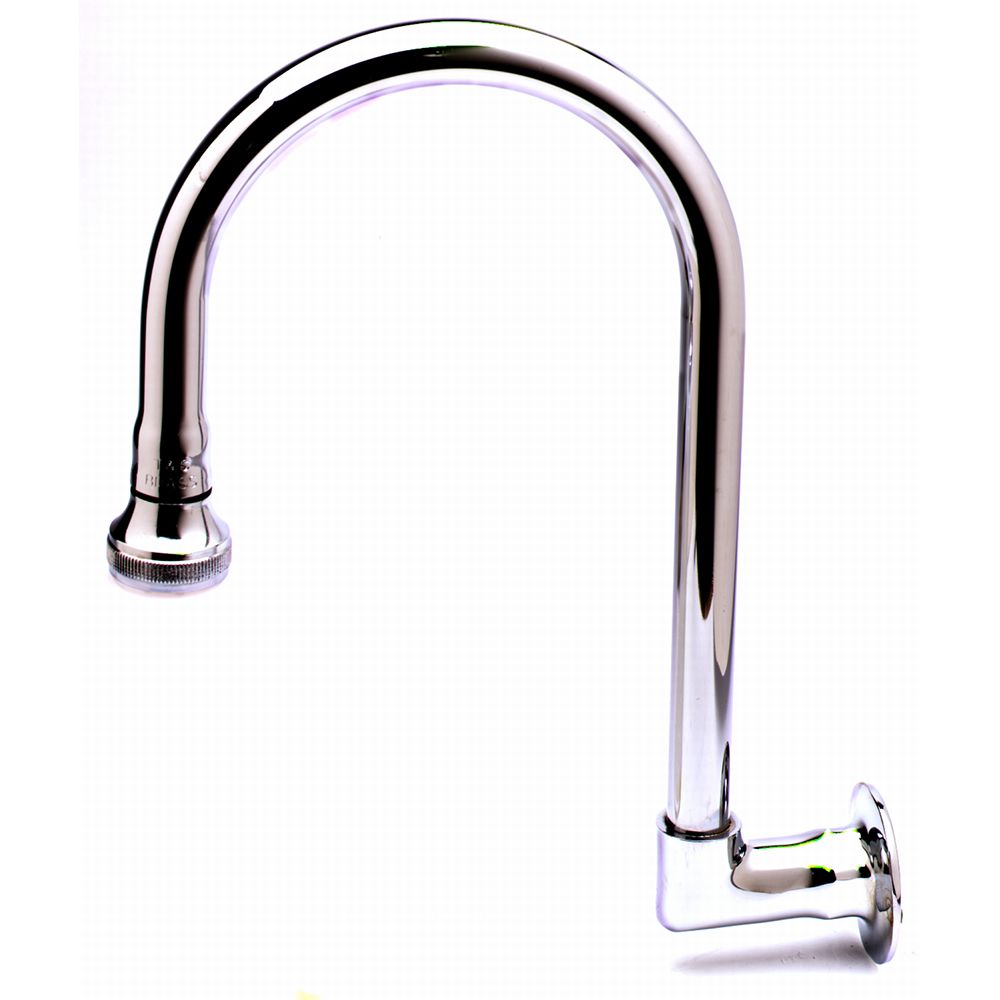

T&S Brass B-0535 Rigid Gooseneck Wall Mount with rosespray

Part Number: B-0535

In Stock

out of stock

In Stock

$102.44

Features:
  • Rigid Gooseneck
  • 3/8" IPS female inlet
  • 5.5" rigid spread gooseneck
  • 10" to top of gooseneck
  • 4.25" clearance center line of inlet to outlet of rosespray
  • 7.5" from wall to outlet of rosespray
  • Flange diameter is 2"


Weight & Dimensions

Approx Height (Inches)

10-5/8 Inches

Approx Length (Inches)

5-9/16

Approx Weight

2.00

Details

Color / Finish

Chrome Plated Brass

Max Flow Rate

12.09 Gallons Per Minute

Operating Pressure Range

20 - 125 PSI

Operating Temperature Range

40-160 Degrees Fahrenheit

Warranty & Certifications

Certifications

NSF/ANSI 61; ASME A112.18.1; CSA B125.1

Warranty

1 Year
