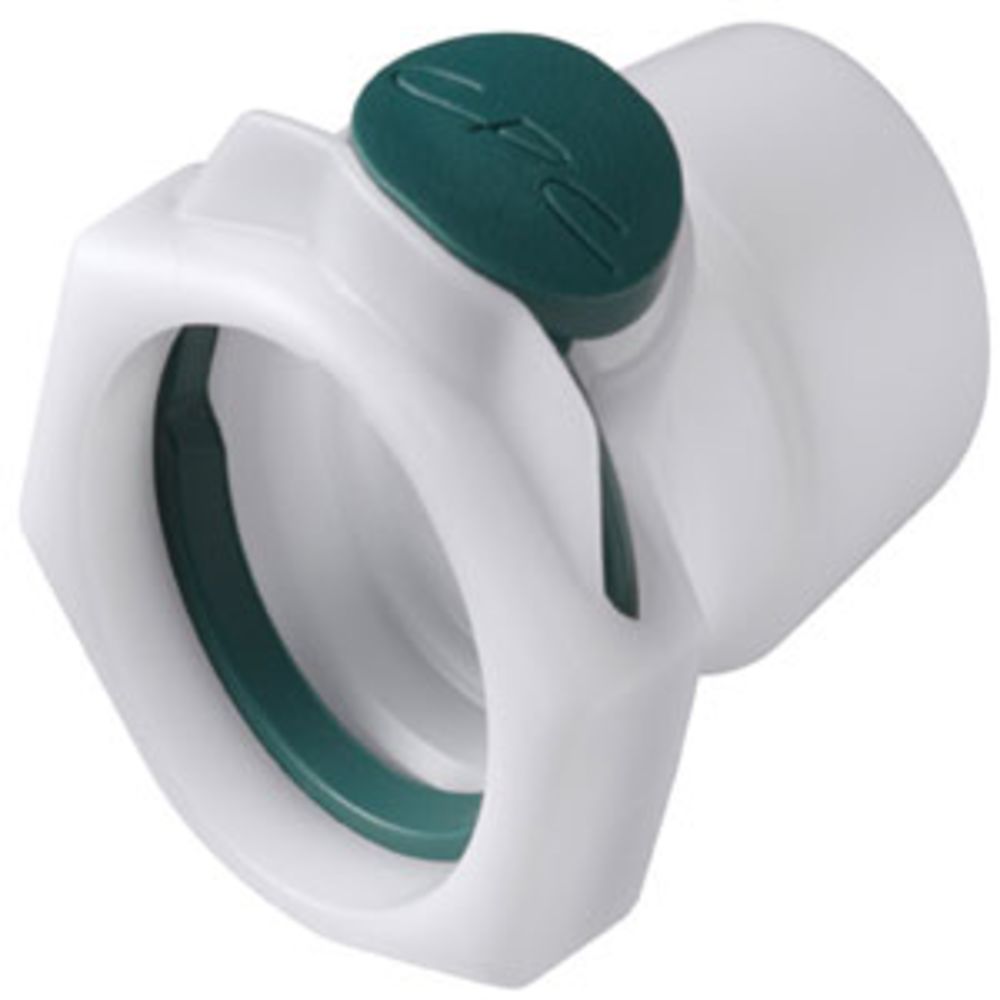

SX17 SixTube Coupling Body Without Fittings

The Sixtube™ coupling provides one easy-to-use quick disconnect for up to six separate fluid lines. The Sixtube is available with valves on either side for maximum design flexibility. Featuring the CPC thumb latch, the Sixtube can disconnect up to six lines with the push of a button. The snap-in panel mount design keeps a low profile on the front of the equipment panel.

Specifications:

Material: Acetal
Material Finish: Natural
Color: White
Valve Option: Non-Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 100psi, 6.9 bar per line
Temperature Range: -40°F to 180°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Sixtube
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Non-Valved
Color / Finish	White Natural
Type	Coupling Body

Product Details
Application	Water
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	Sixtube
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Non-Valved
Color / Finish	White Natural
Type	Coupling Body
