SUEZ

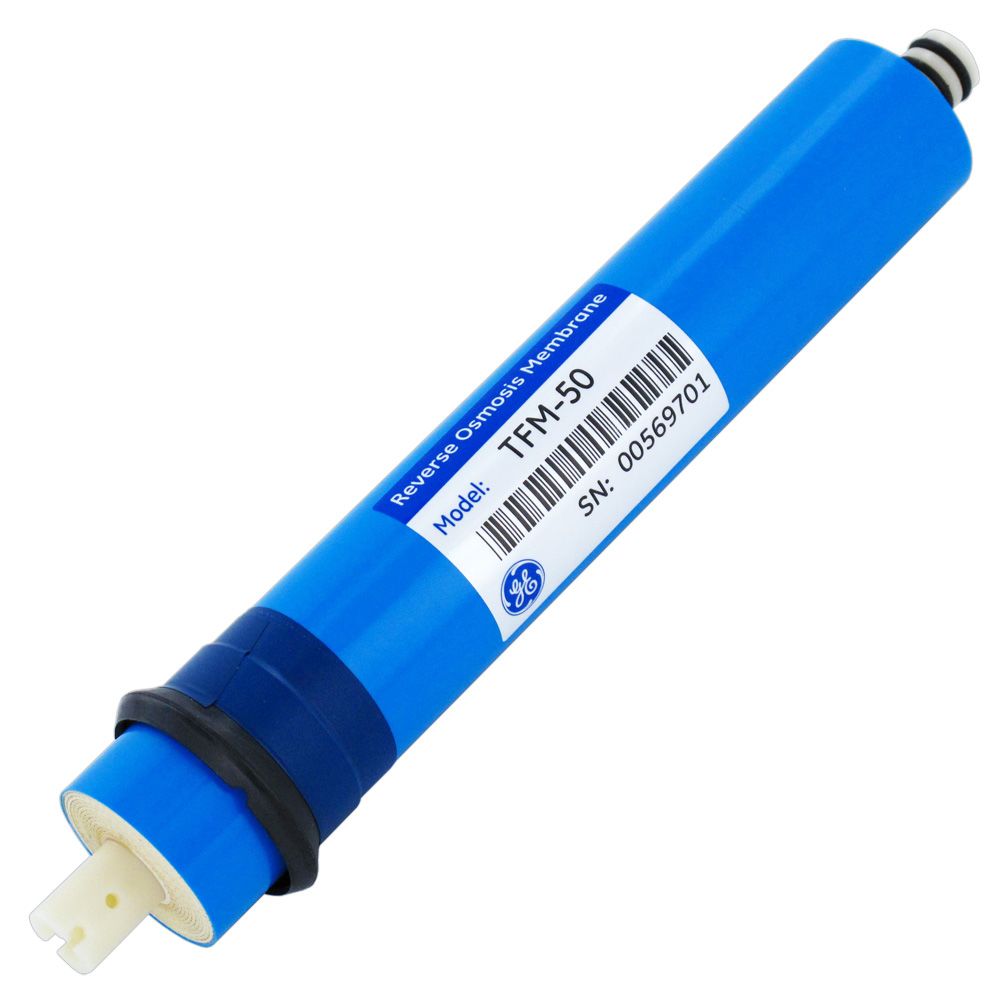

SUEZ Osmonics Desal TFM-50 TFC RO Membrane Element

Part Number: 1204694

Alt. Part Number: TFM-50AK

In Stock

out of stock

In Stock

This item is discontinued. We recommend the AXEON TFM-50 TFC Residential RO Membrane 50 GPD as a substitute.

SUEZ Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.
Application:
  • Purify varying qualities of saline water
  • Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation

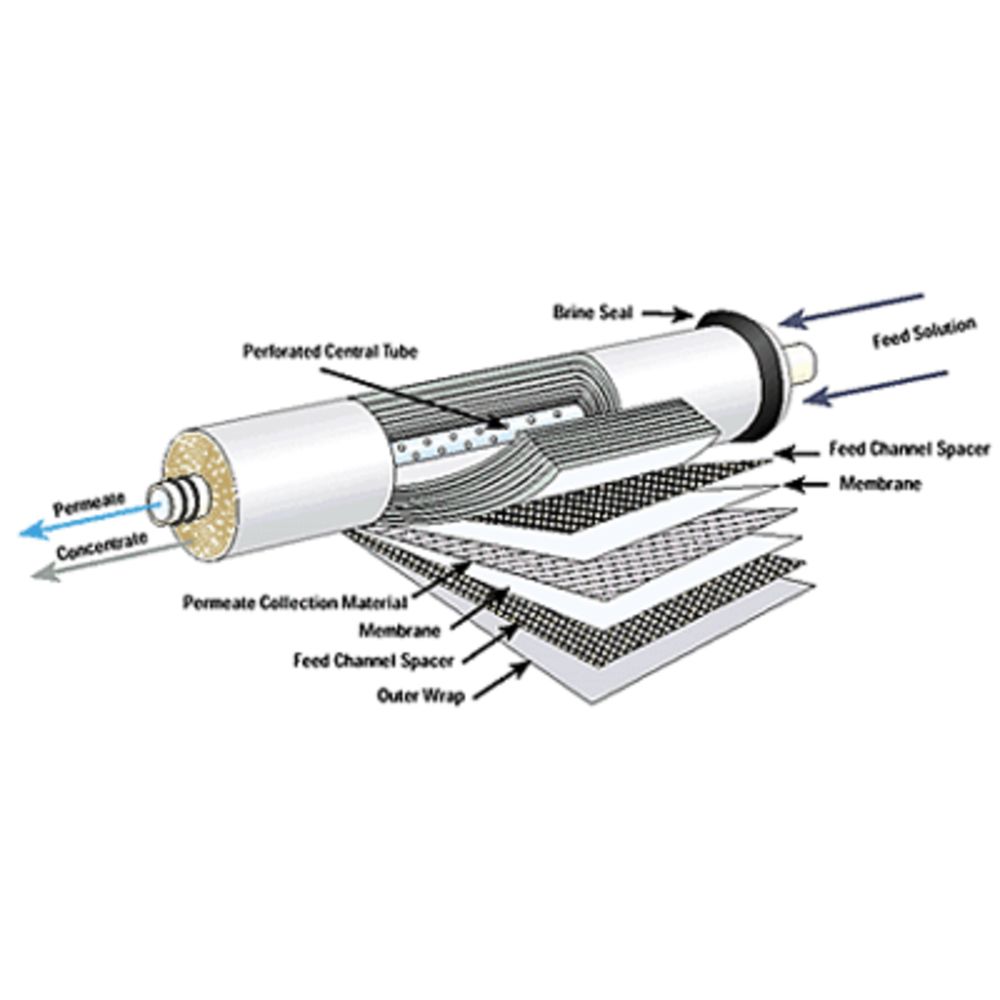

Element Membrane Diagram (not the encapsulated model):

Compatible with:
Generic RO SystemsTFC50
Hague®200295
PurePro05001, TW30-1812-50
TGI Pure, TopWay GlobalMM-TFF45/75
VertexMA-4203
WattsTW30-1812-50

Weight & Dimensions

Approx Length (Inches)

11-3/4"

Weight (lbs)

0.6

Details

Average Nacl Rejection

0.98

Capacity

24-36 Months

Direction

Outside - In

Inner/Outer Wraps

Tape

Material Of Construction

CA (Cellulose Acetate)

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.68"

Cartridge Style

Drop-in

Change Frequency

24-36 Months

Diameter

1.8"

Flow Rate

50 GPD

Origin

China

Warranty & Certifications

Certifications

ANSI/NSF 58


SUEZ




SUEZ Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.
Application:
  • Purify varying qualities of saline water
  • Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation


Element Membrane Diagram (not the encapsulated model):

Compatible with:
Generic RO SystemsTFC50
Hague®200295
PurePro05001, TW30-1812-50
TGI Pure, TopWay GlobalMM-TFF45/75
VertexMA-4203
WattsTW30-1812-50

NOTE: This item is discontinued. We recommend the AXEON TFM-50 TFC Residential RO Membrane 50 GPD as a substitute.

Weight & Dimensions

Approx Length (Inches)

11-3/4"

Weight (lbs)

0.6

Details

Average Nacl Rejection

0.98

Capacity

24-36 Months

Direction

Outside - In

Inner/Outer Wraps

Tape

Material Of Construction

CA (Cellulose Acetate)

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.68"

Cartridge Style

Drop-in

Change Frequency

24-36 Months

Diameter

1.8"

Flow Rate

50 GPD

Origin

China

Warranty & Certifications

Certifications

ANSI/NSF 58
