SUEZ

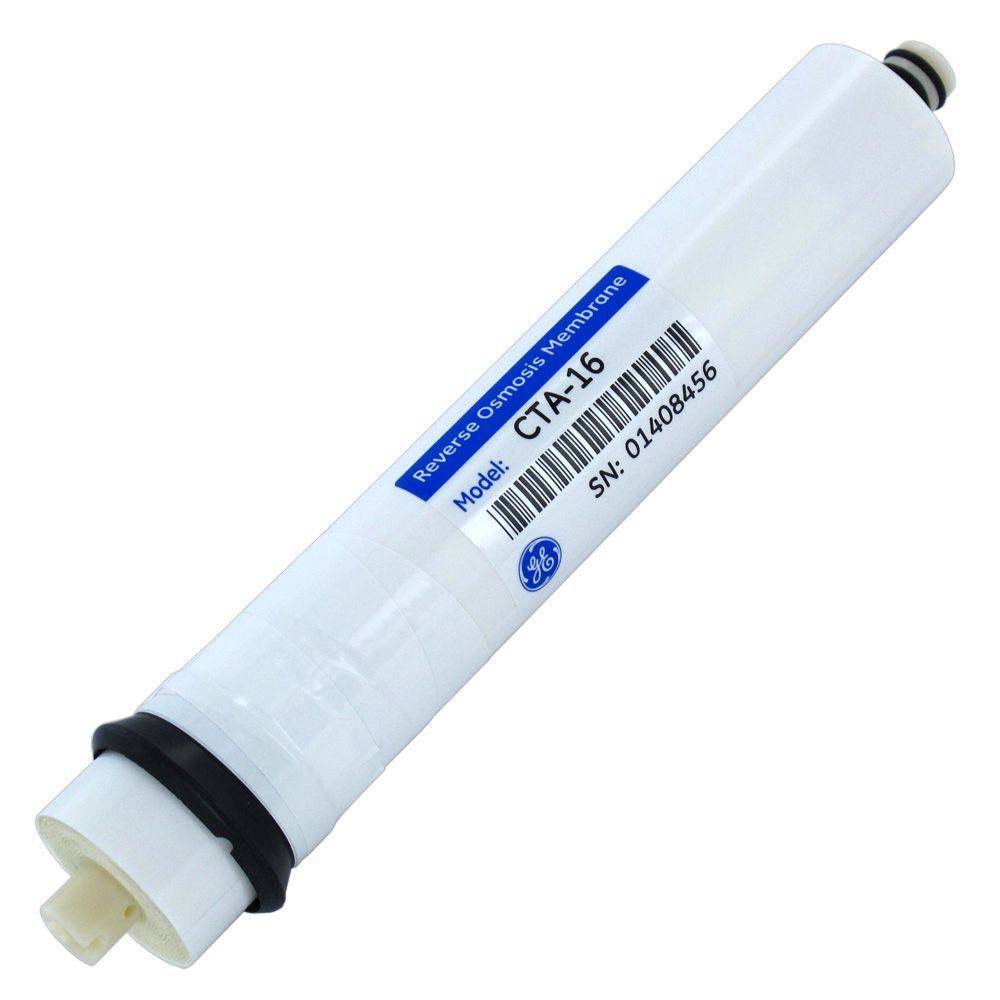

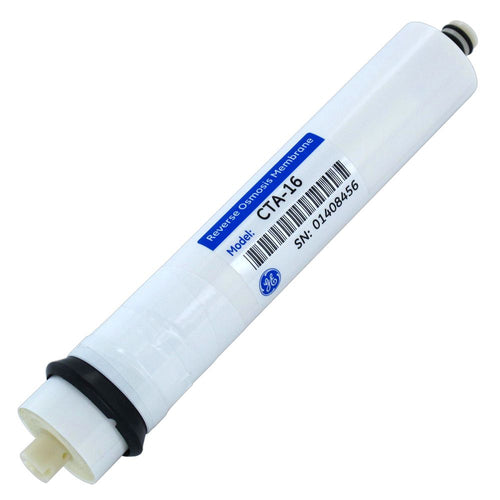

SUEZ Osmonics Desal CTA-16 RO Membrane Element

Part Number: 1201332

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

SUEZ Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation


Element Membrane Diagram (not the encapsulated model):

Compatible with:
AmetekROM-16C, 155415-01
BrunerA20283, A-2028-3
Hague®200300
LancasterS1224, LA-1201332
MarloT-1060, A2069011
MicrolineS1224, LA-1201332

Weight & Dimensions

Approx Length (Inches)

11-3/4"

Weight (lbs)

0.6

Details

Average Nacl Rejection

0.95

Capacity

12-18 Months

Inner/Outer Wraps

Tape

Cartridge Style

Drop-in

Change Frequency

12-18 Months

Diameter

1.83"

Flow Rate

16 GPD

Origin

China

Warranty & Certifications

Certifications

ANSI/NSF 58


SUEZ




SUEZ Osmonics Desal Membrane-Separation Technology employs crossflow filtration where captured impurities on the membrane are constantly swept away by the concentrate stream. This continuously cleaning prolongs membrane life reducing maintenance costs. In common applications, the RO membrane element, within a pressure vessel, accepts inflow pressurized saline feedwater. Crossflow filtration across the membrane then divides the flow into two outflow streams: the cleansed permeate feed and the concentrate or reject stream.

Residential Applications:
  • Purify varying qualities of saline water
Commercial Applications:
  • Drinking water for restaurants
  • Drinking water vending machines
  • Aquarium water treatment
  • Softened water for homes, hotels, commercial laundries and car washes
  • Post-treatment of deionized water
  • Pure water for pharmaceuticals, laboratories and electronics
  • Hemodialysis
  • Oil/water separation


Element Membrane Diagram (not the encapsulated model):

Compatible with:
AmetekROM-16C, 155415-01
BrunerA20283, A-2028-3
Hague®200300
LancasterS1224, LA-1201332
MarloT-1060, A2069011
MicrolineS1224, LA-1201332

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

11-3/4"

Weight (lbs)

0.6

Details

Average Nacl Rejection

0.95

Capacity

12-18 Months

Inner/Outer Wraps

Tape

Cartridge Style

Drop-in

Change Frequency

12-18 Months

Diameter

1.83"

Flow Rate

16 GPD

Origin

China

Warranty & Certifications

Certifications

ANSI/NSF 58
