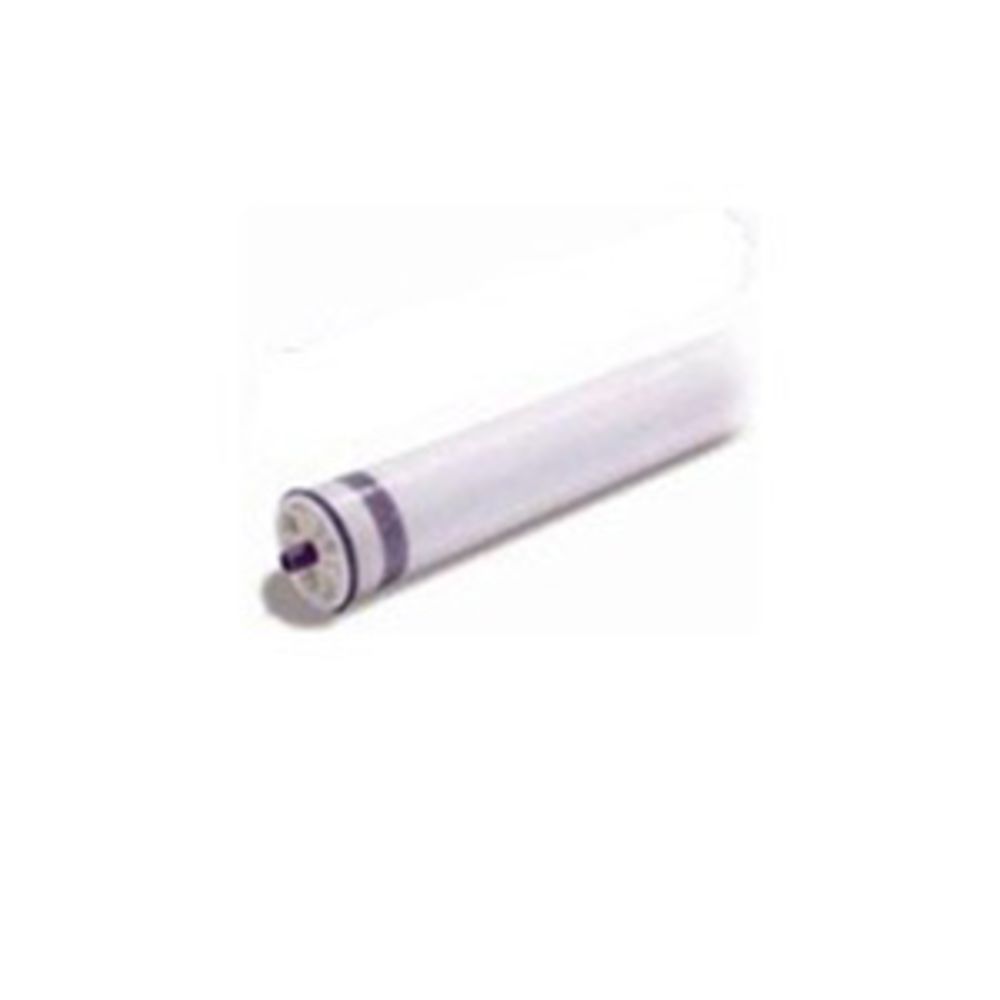

SUEZ Osmonics Desal AK8040F RO Membrane Element 9200 GPD LP-DRY
Part Number: 1206820
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- High Flux and Excellent NaCL Rejection
- Thin-Flim Reverse Osmosis Membrane Element
- 9200 Gallons Per Day
- Dimensions: 8" x 40"
- Male End Connections
- Tape Outer Wrap
- 28 mil Feed Spacers
- Operating Pressures as low as 100 PSIG
Element Membrane Diagram (not the encapsulated model):

Product Details | |
---|---|
Active Area | 365 sq. ft. |
Application | Brackish Water |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | 1,000 ppm-hrs |
Cleaning Ph Range | 2-11.5 |
Feed Spacer Thickness | 28 mil |
Feed Water Temperature | 77°F |
Inlet Pressure | 115 PSI |
Inner/Outer Wraps | Fiberglass |
Material Of Construction | Fiberglass |
Max Feed Silt Density Index | <3 Silt Density Index |
Max Feed Water Turbidity | <1 Nephelometric Turbidity Units |
Max Pressure Drop | 10 PSI Differential |
Max Pressure (Psi) | 400psi |
Max Temp (°F) | 122 °F |
Minimum Salt Rejection Cl- (%) | 0.98 |
Permeate Flow Rate | 9,200 gpd (34.8) |
Permeate Tube Diameter | 1.125" |
Ph Range | 4-11 |
Recovery Rate | 0.15 |
Stabilized Salt Rejection Cl- (%) | 0.99 |
Cartridge Style | Drop-in |
Diameter | 7.88" |
Shipping Dimensions | |
Shipping Length | 40 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 11.75 |
Specifications:
- High Flux and Excellent NaCL Rejection
- Thin-Flim Reverse Osmosis Membrane Element
- 9200 Gallons Per Day
- Dimensions: 8" x 40"
- Male End Connections
- Tape Outer Wrap
- 28 mil Feed Spacers
- Operating Pressures as low as 100 PSIG
Element Membrane Diagram (not the encapsulated model):

Product Details | |
---|---|
Active Area | 365 sq. ft. |
Application | Brackish Water |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | 1,000 ppm-hrs |
Cleaning Ph Range | 2-11.5 |
Feed Spacer Thickness | 28 mil |
Feed Water Temperature | 77°F |
Inlet Pressure | 115 PSI |
Inner/Outer Wraps | Fiberglass |
Material Of Construction | Fiberglass |
Max Feed Silt Density Index | <3 Silt Density Index |
Max Feed Water Turbidity | <1 Nephelometric Turbidity Units |
Max Pressure Drop | 10 PSI Differential |
Max Pressure (Psi) | 400psi |
Max Temp (°F) | 122 °F |
Minimum Salt Rejection Cl- (%) | 0.98 |
Permeate Flow Rate | 9,200 gpd (34.8) |
Permeate Tube Diameter | 1.125" |
Ph Range | 4-11 |
Recovery Rate | 0.15 |
Stabilized Salt Rejection Cl- (%) | 0.99 |
Cartridge Style | Drop-in |
Diameter | 7.88" |
Shipping Dimensions | |
Shipping Length | 40 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 11.75 |
