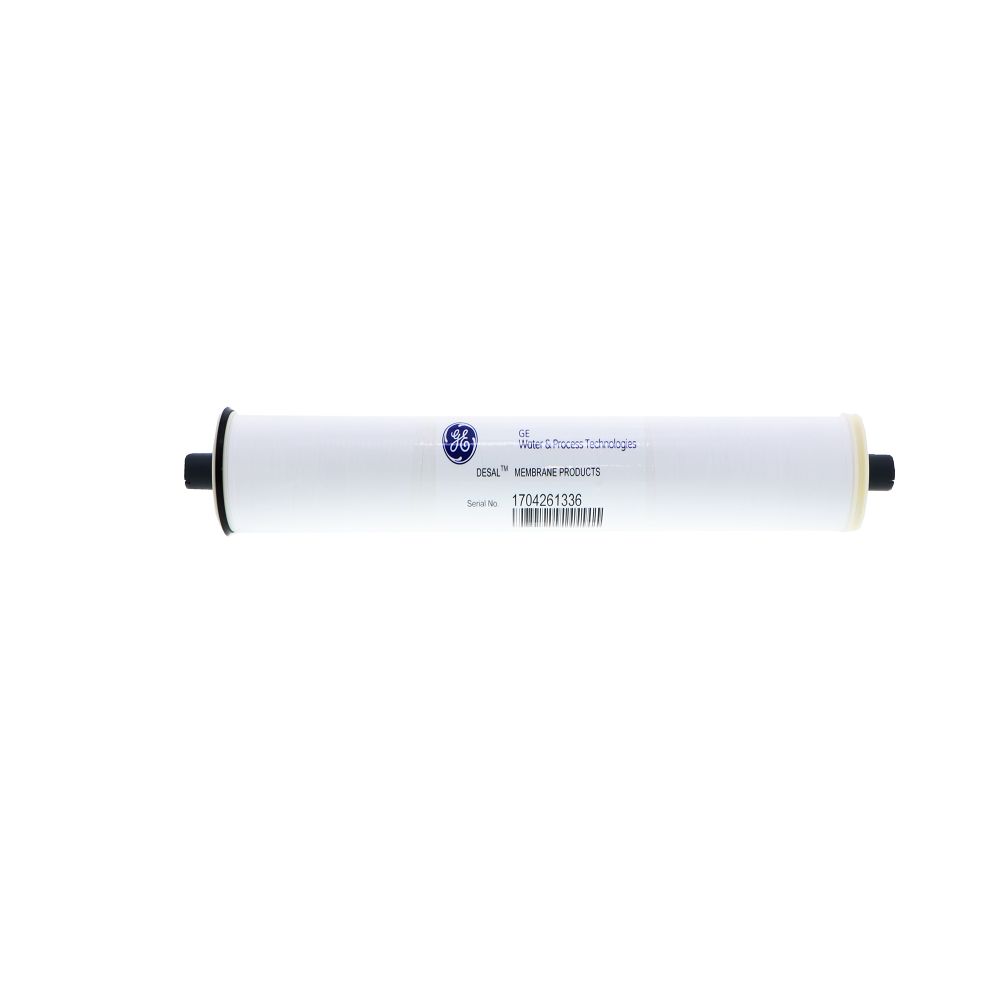

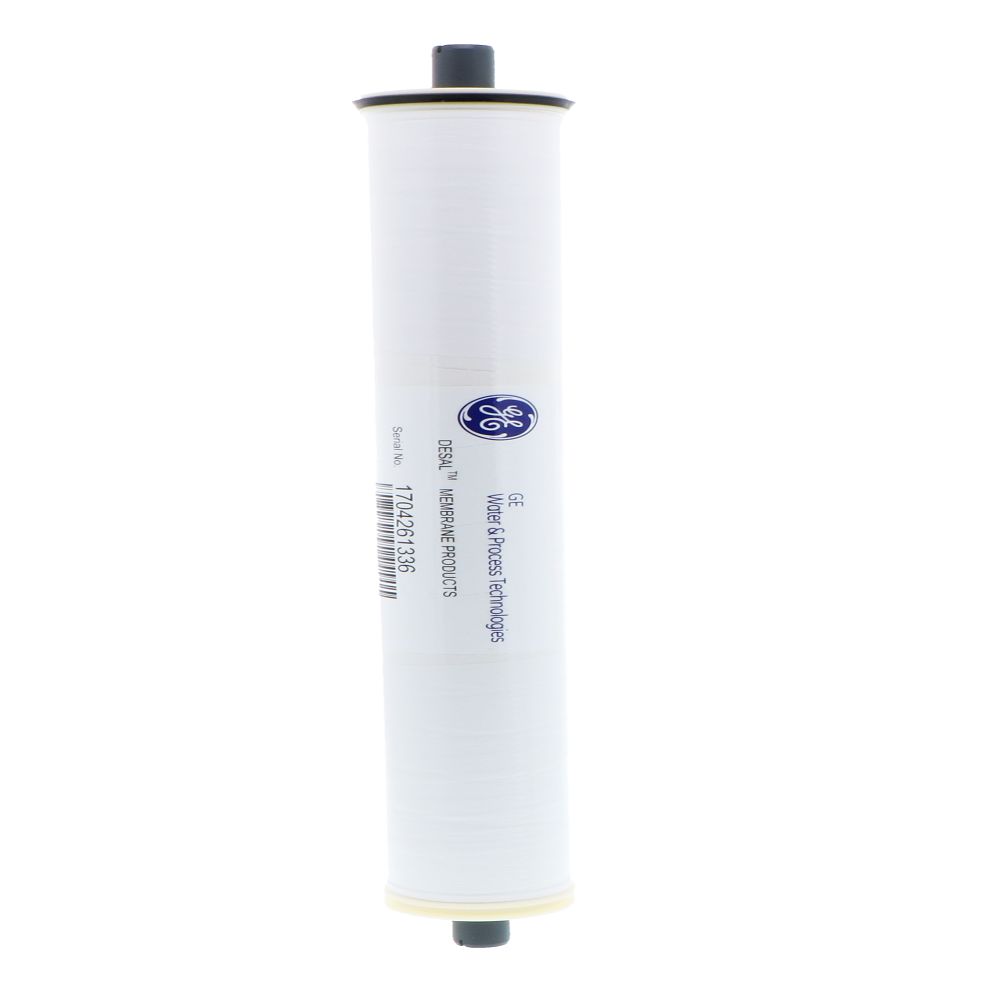

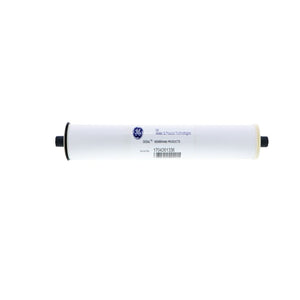

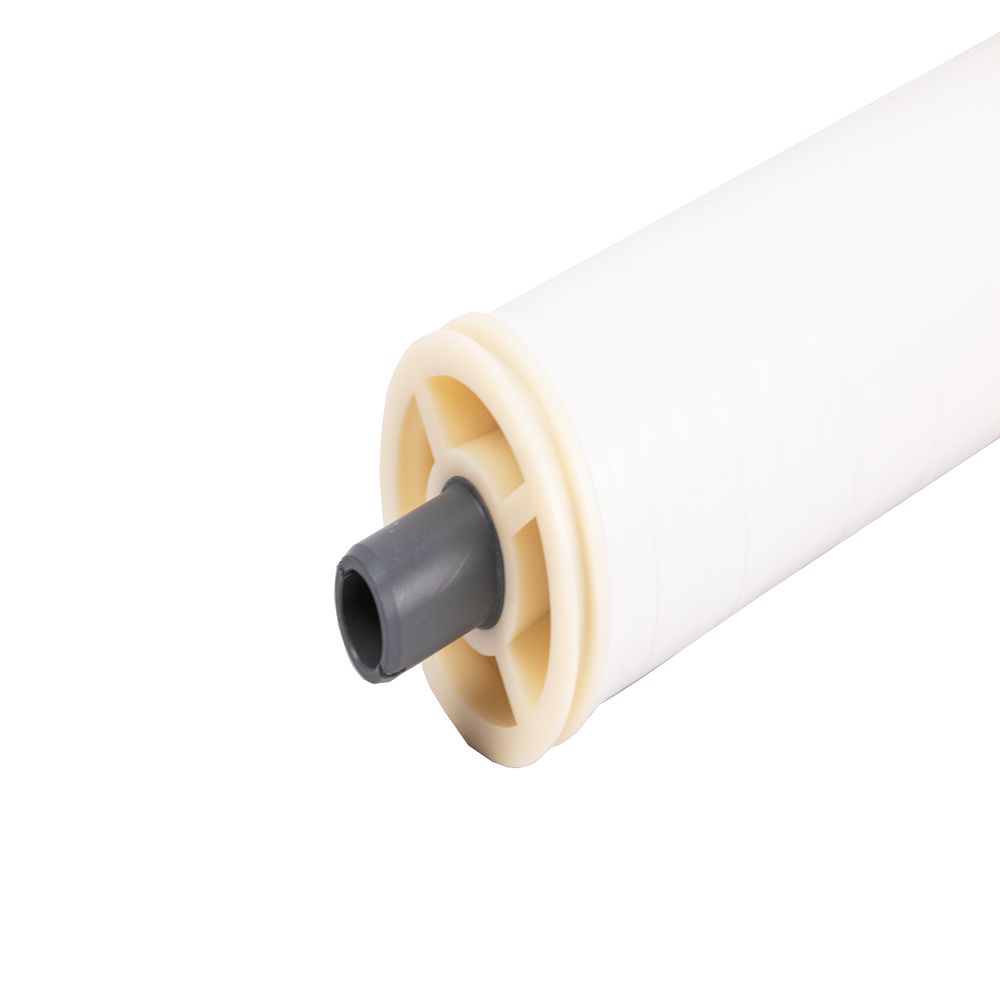

SUEZ Osmonics Desal AG2521TM 325 GPD RO Membrane Element

The SUEZ Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.
Specifications:

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
325 Gallons Per Day
Dimensions: 2.5" x 21"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 200 PSIG

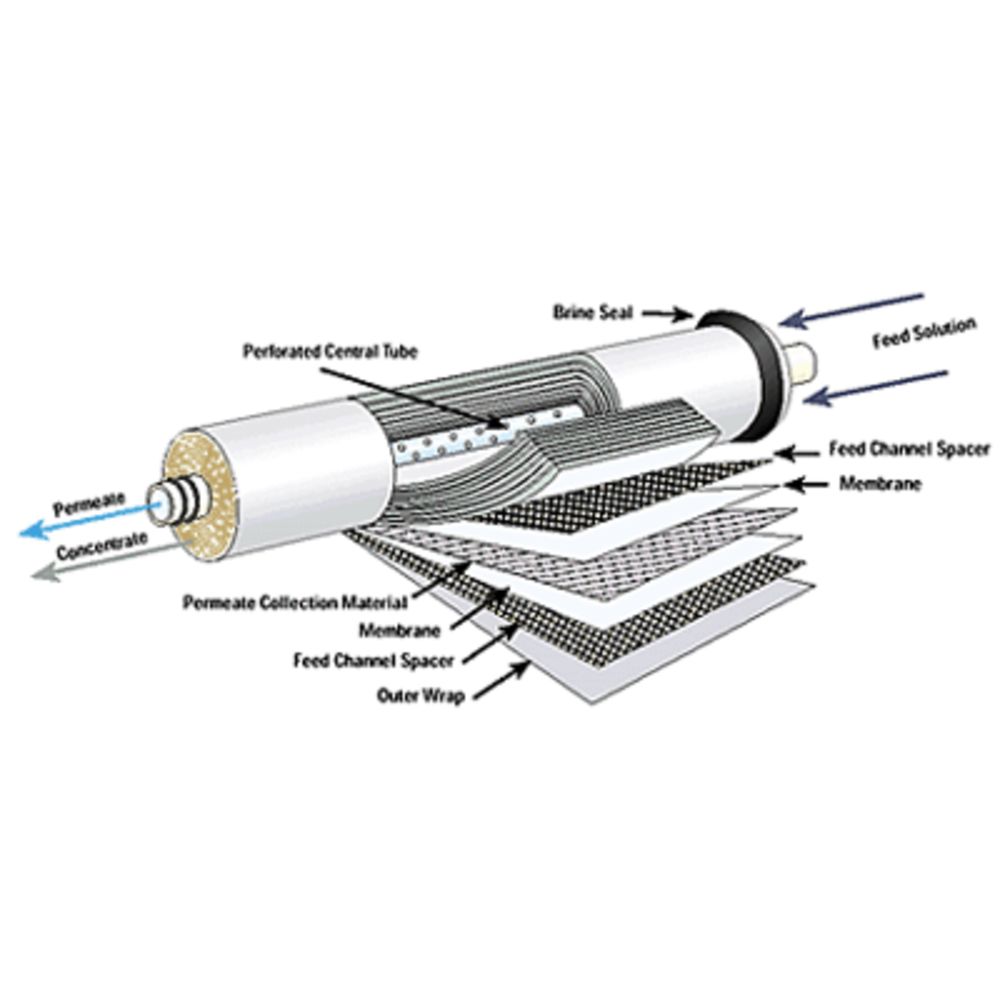

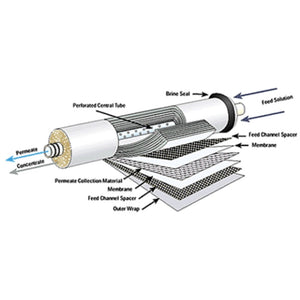

Element Membrane diagram
(not the encapsulated model)

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	12 sq. ft.
Average Nacl Rejection	0.995
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Direction	Outside - In
Inlet Pressure	200 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Fiberglass
Max Feed Silt Density Index	<3 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure (Psi)	450psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Nacl Rejection	0.99
Permeate Flow Rate	325 gpd (1.2)
Permeate Tube Diameter	3/4"
Ph Range	4-11
Cartridge Style	Drop-in
Diameter	2.4"
Shipping Dimensions
Shipping Length	24.75 in.
Shipping Width	3.5 in.
Shipping Height	3.5 in.
Product Weight & Dimensions
Product Height	3
Product Length	23.5
Product Width	3
Product Weight (lbs)	1.864

SUEZ Osmonics Desal AG2521TM 325 GPD RO Membrane Element Manual
