Sterilight - R-Can

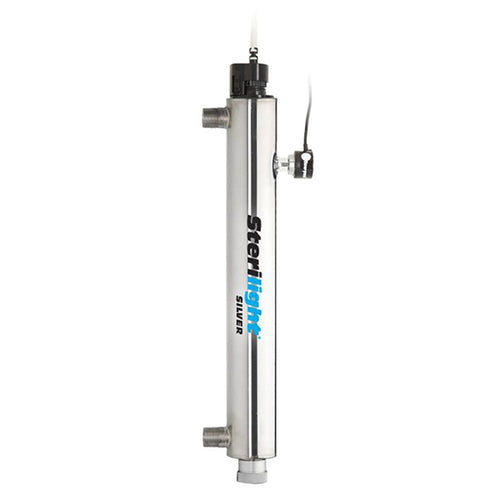

Sterilight SSM-14 Silver Plus 2.0 gpm UV System

Part Number: SSM-14

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


The Sterilight SSM-14 UV System provides point-of-use disinfection with a flow rate of 2.0 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allos the SSM-14 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-14 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MNPT connections




Weight & Dimensions

Weight (lbs)

8

Approx Length (Inches)

15"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

2.6"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

2 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

16 W

Size

1/2"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components


Sterilight





The Sterilight SSM-14 UV System provides point-of-use disinfection with a flow rate of 2.0 gpm. This modular system, incorporating Sterilight's new Silver Plus controller, is ideal for small POU applications such as post filtration, or as a pre or post application on a residential RO System.

Features:
  • Silver Plus controller provides constant output current and a universal power input, and also displays % UV intensity, remaining lamp life, and total days of operation
  • 254nm UV intensity monitor allos the SSM-14 to continuously monitor the system and warn you of any changes in water quality
  • A powered solenoid output allows you to hook a normally closed solenoid valve (sold separately) directly into the controller.
  • Sterilume™-EX coated low pressure germicidal UV lamps are used to provide an economical way of treating water requiring a 99.99% reduction in bacteria and viruses
  • The SSM-14 is manufactured with a polished, 304 stainless steel, pressure rated tube and comes with ¼" MNPT connections



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

8

Approx Length (Inches)

15"

Power Supply Dimensions

11" x 4-1/2" x 2"

Details

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Ambient Temperature Range

36-104 °F

Diameter

2.6"

Features

UV Intensity Monitor, Audible Lamp Failure, Visual Power On

Flow Rate

2 GPM (30mJ/cm2 Dose)

Frequency

50/60 Hz

Power

16 W

Size

1/2"

Voltage

120 V

Inlet/Outlet Connection

1/2" MPT

Warranty & Certifications

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
