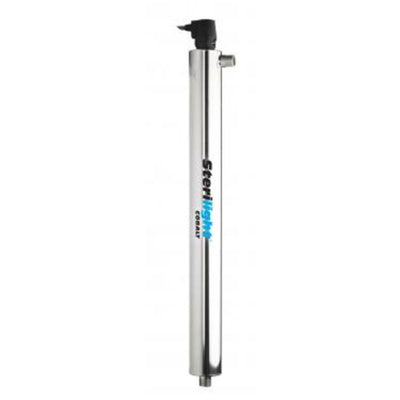

Sterilight SCMV-740 Cobalt Plus System w/UV Monitor NSF Class B 15.8 gpm

Part Number: SCMV-740

In Stock

out of stock

The Sterilight SCMV-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • NSF Standard 55 Class B Certified
  • Sterilum-HO UV lamps - high output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications:
Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.



Weight & Dimensions

Approx Length (Inches)

39.7"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Weight (lbs)

25

Details

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On

Flow Rate

15.8 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

1-1/2" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

82 W

Size

1-1/2"

Voltage

120 V

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class B

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components




The Sterilight SCMV-740 incorporates high-output UV lamp technology coupled with efficient axial flow reactors to give you a footprint for easy installation.

Features:
  • NSF Standard 55 Class B Certified
  • Sterilum-HO UV lamps - high output lamp technology allows you to treat high flow rates in a more compact space
  • 4-log (99.99%) destruction of bacteria, virus and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
  • Cobalt ICE controller provides constant output current and a universal power input
  • Controller alerts user with alarm if UV lamp fails
  • Sealed case on the controller helps to prevent damage from accidental intrusion
  • Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high intensity UV light
  • Compact design reduces installation time and takes less space
  • Lamp can be changed without interruption water flow

NSF/ANSI Standard 55: Ultraviolet Microbiological Water Treatment Systems This standard establishes requirements for point-of-use (POU) and point-of-entry (POE) non-public water supply (non-PWS) ultraviolet systems and includes two optional classifications:
Class A systems (40mJ/cm²) are designed to disinfect and/or remove microorganisms from contaminated water, including bacteria and viruses, to a safe level. Class B systems (16mJ/cm²) are designed for supplemental bactericidal treatment of public drinking water or other drinking water, which has been deemed acceptable by a local health agency.


NOTE: This item is discontinued. We recommend the Viqua E4-V Plus NSF Class B Monitored UV Water System Powered by UVMax 15 gpm as a substitute.

Weight & Dimensions

Approx Length (Inches)

39.7"

Power Supply Dimensions

9.4"x3.2"x2-1/2"

Weight (lbs)

25

Details

Ambient Temperature Range

36-104 °F

Diameter

3-1/2"

Features

UV Intensity Monitor; Audible Lamp Failure; Visual Power On

Flow Rate

15.8 GPM (16mJ/cm2 Dose)

Frequency

50/60 Hz

Inlet/Outlet Connection

1-1/2" MPT

Max Pressure (Psi)

125

Min Pressure (Psi)

5

Power

82 W

Size

1-1/2"

Voltage

120 V

Warranty & Certifications

Certifications

NSF/ANSI Standard 55, Class B

Warranty

7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
