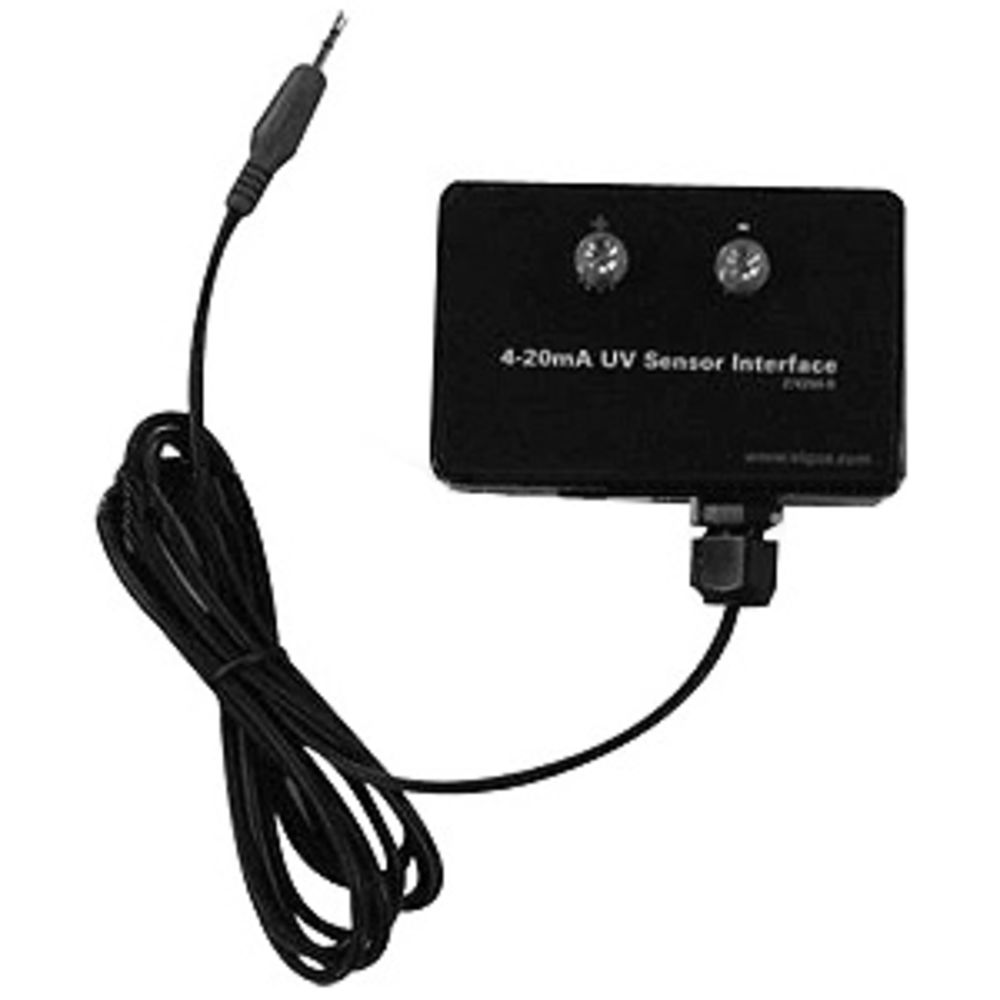

Sterilight 270268-R 4-20mA UV Sensor Interface for SM80 and SV50

Home / UV Systems & Components / UV Accessories & Replacement Parts / Sterilight 270268-R 4-20mA UV Sensor Interface for SM80 and SV50

Sterilight Technologies

Sterilight 270268-R 4-20mA UV Sensor Interface for SM80 and SV50

Part Number: 270268-R

The Sterilight 270268-R 4-20mA UV Sensor Interface is an inexpensive unit that allows for sophisticated controls based on sensor signals rather than alarm set points. The 270268-R is compatible with the Sterilight SM80 and SV50 ultraviolet water treatment systems.

Features:

Compatible with existing SCADA, PLC and other data management systems
Installs between the power supply and the sensor
Has Velcro provided to attach near the chamber
Approximate dimensions: 3.3" (L) x 2.2" (W) x 0.8" (D)
Maximum load resistance: 250 Ohms

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Type	UV Sensors
Product Weight & Dimensions
Dimensions	3.3” (L) x 2.2” (W) x 0.8” (D)
Product Weight (lbs)	0.3

Compatible with existing SCADA, PLC and other data management systems
Installs between the power supply and the sensor
Has Velcro provided to attach near the chamber
Approximate dimensions: 3.3" (L) x 2.2" (W) x 0.8" (D)
Maximum load resistance: 250 Ohms
