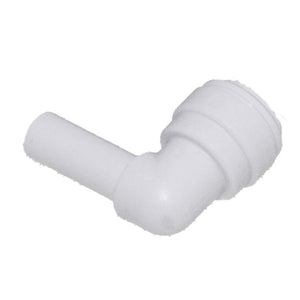

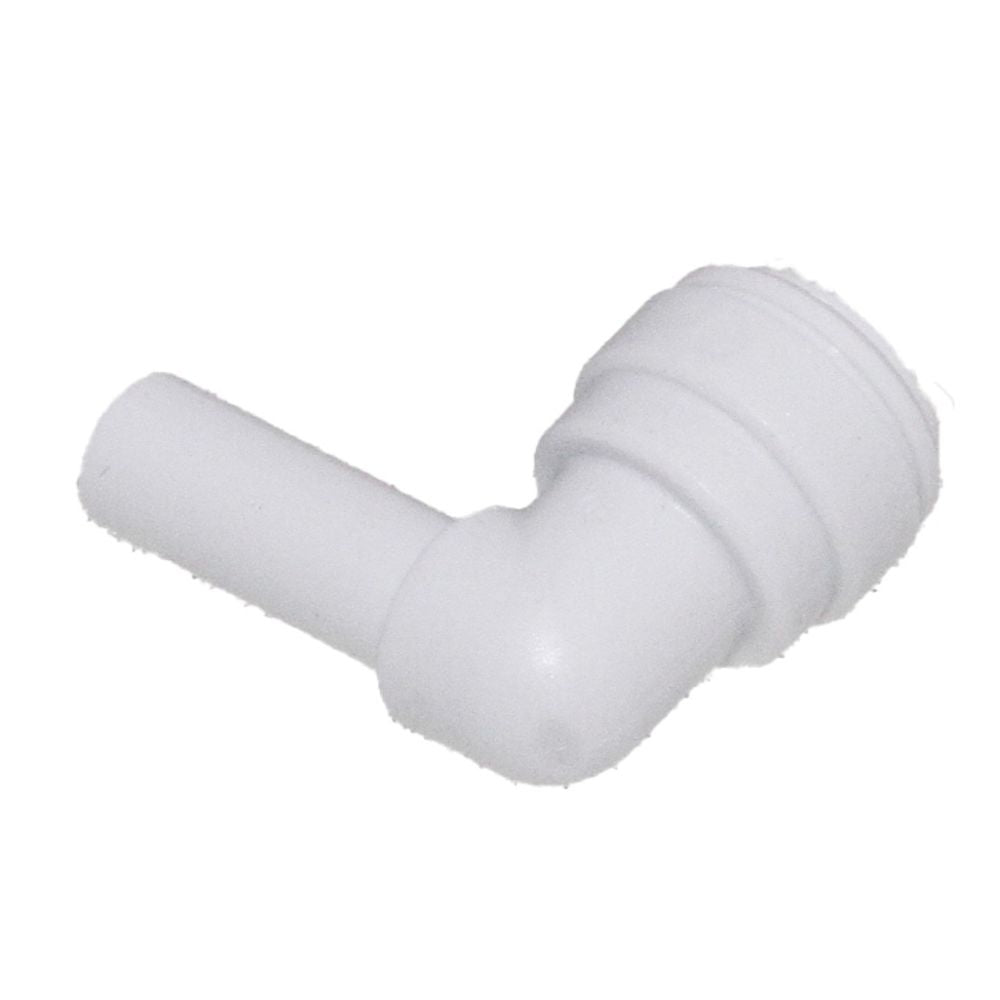

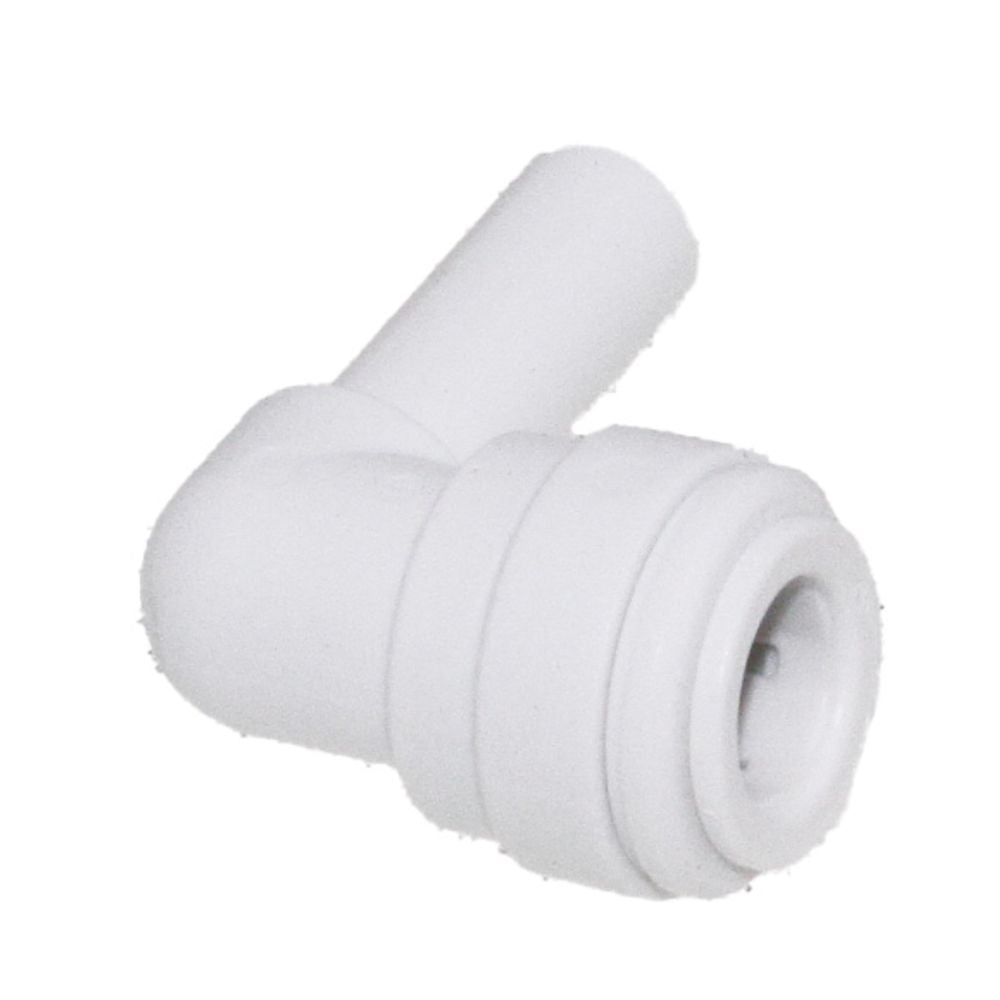

Stem Elbow Connector Acetal (white) - 3/8 Stem x 3/8
Part Number: CI221212W
Alt. Part Number: ATEU66-W, PP481223E
Product image 1
Product image 2
Product image 3
Product image 4
Your price:
Choose
Single
Bag of 10
Box of 200
similar items
The John Guest Plug In Elbow makes connecting tubing quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

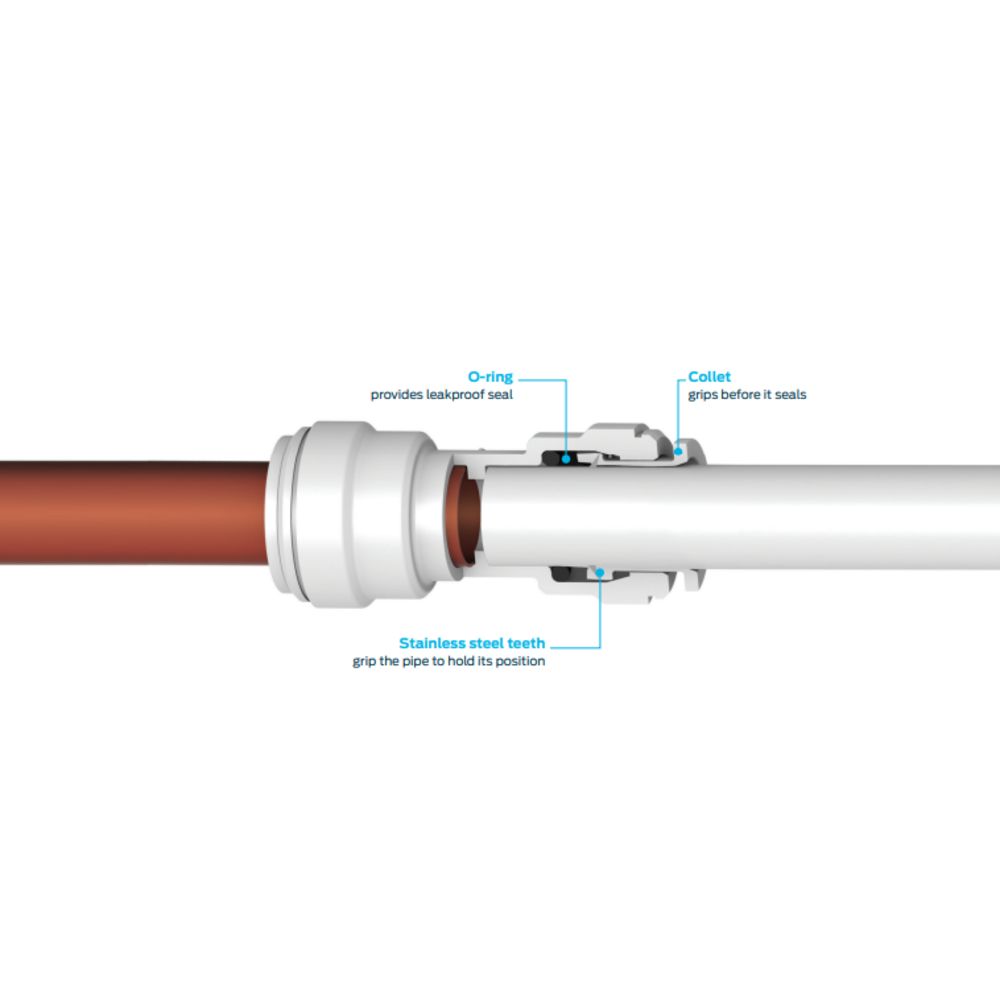

  • Push-fit Technology creates reliable, leak-free connections
  • Used to change tubing direction 90 degrees
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Acetal body with food grade EDPM O-Ring
  • Made with lead free materials
Working pressure and temperature:

  • Max. 150 psi at 70° F
  • Max. 100 psi at 150° F
Note: Not suitable for compressed air and vacuum applications.


Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.



Compatible Tubing

Compatible tubing for John Guest fittings
California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
