Fresh Water Systems

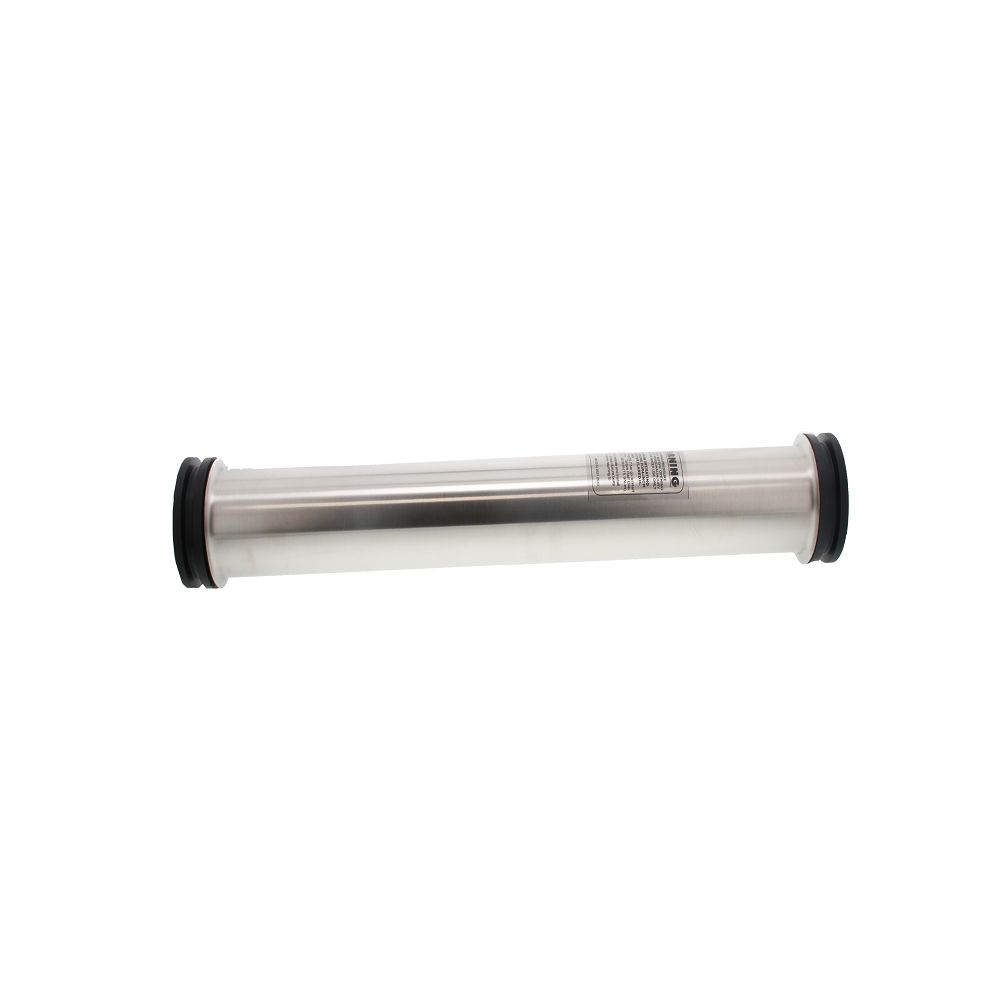

Stainless Steel Membrane Housing 2.5" x 21" 3/8" Feed

Part Number: MHSS-2521-3838

Alt. Part Number: VSH-2521

In Stock

out of stock

In Stock

$110.99

The 2.5" x 21" Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis, nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5" membranes and withstand pressures up to 250 PSI.

Features:
  • Accommodates All Standard 2.5" x 21" Sized Membranes
  • 3/8" Feed Port
  • 3/8" Permeate Port
  • Made of 304 Stainless Steel
  • Will not be affected by UV Rays or Sunlight
  • Lighter than PVC
  • More durable than PVC
  • Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)

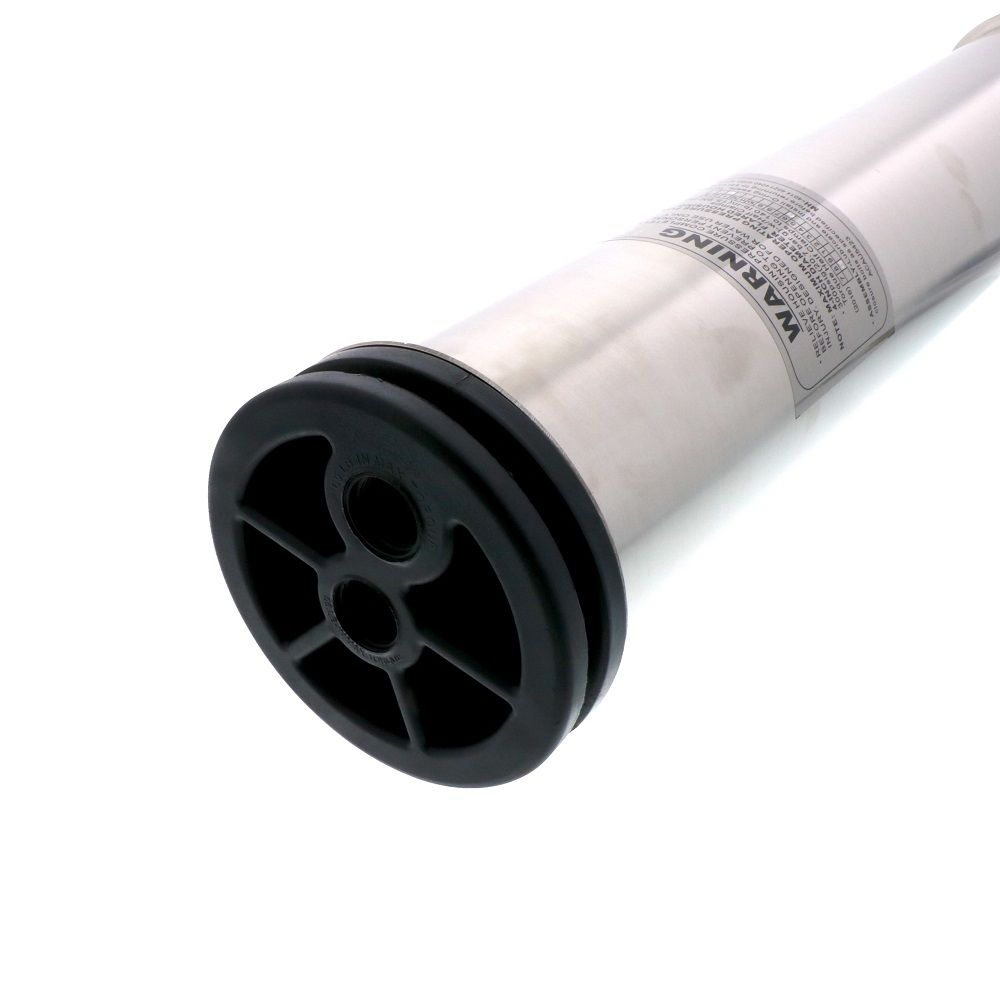

  • Molded "U-Type" clamp closures provide a strong seal



Compatible with:
AXEON Membranes200519
LiquatecVSH-2521
PureGen - UNPUBLISHEDMH-2521SS-3838

Weight & Dimensions

Approx Length (Inches)

21"

Weight (lbs)

5

Details

Closure Type

Clamp

Diameter

2-1/2"

End Cap Type

Nylon

Housing Material

304 Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

120

Min Temp (°F)

35

Origin

USA

O-Rings

Buna-N

Port Size

3/8; 3/8"


Stainless




The 2.5" x 21" Stainless Steel Pressure Vessel is designed for use in commercial reverse osmosis, nanofiltration and ultrafiltration applications. These seamless body RO housings accommodate standard 2.5" membranes and withstand pressures up to 250 PSI.

Features:
  • Accommodates All Standard 2.5" x 21" Sized Membranes
  • 3/8" Feed Port
  • 3/8" Permeate Port
  • Made of 304 Stainless Steel
  • Will not be affected by UV Rays or Sunlight
  • Lighter than PVC
  • More durable than PVC
  • Will not warp, crack, or weep like fiberglass (FRP housings equivalent in pressure rating)
  • Molded "U-Type" clamp closures provide a strong seal



Compatible with:
AXEON Membranes200519
LiquatecVSH-2521
PureGen - UNPUBLISHEDMH-2521SS-3838

Weight & Dimensions

Approx Length (Inches)

21"

Weight (lbs)

5

Details

Closure Type

Clamp

Diameter

2-1/2"

End Cap Type

Nylon

Housing Material

304 Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

120

Min Temp (°F)

35

Origin

USA

O-Rings

Buna-N

Port Size

3/8; 3/8"
