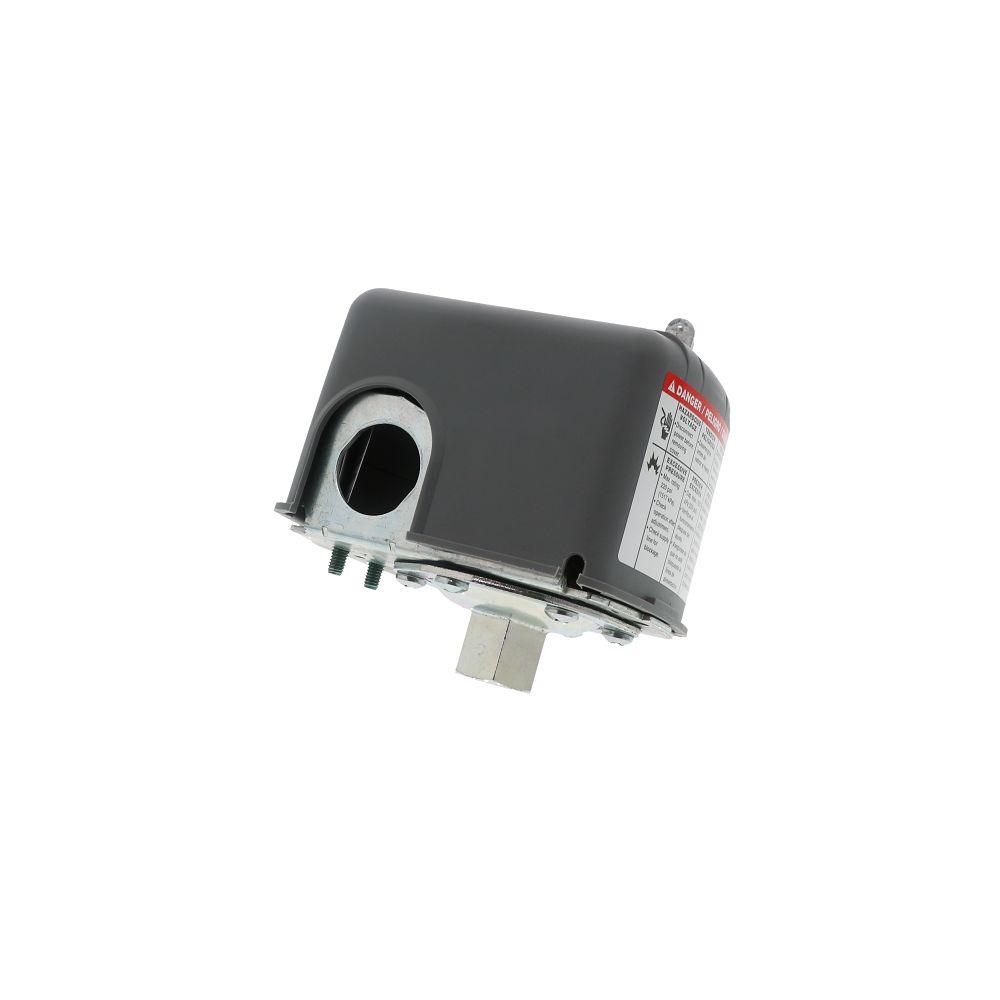

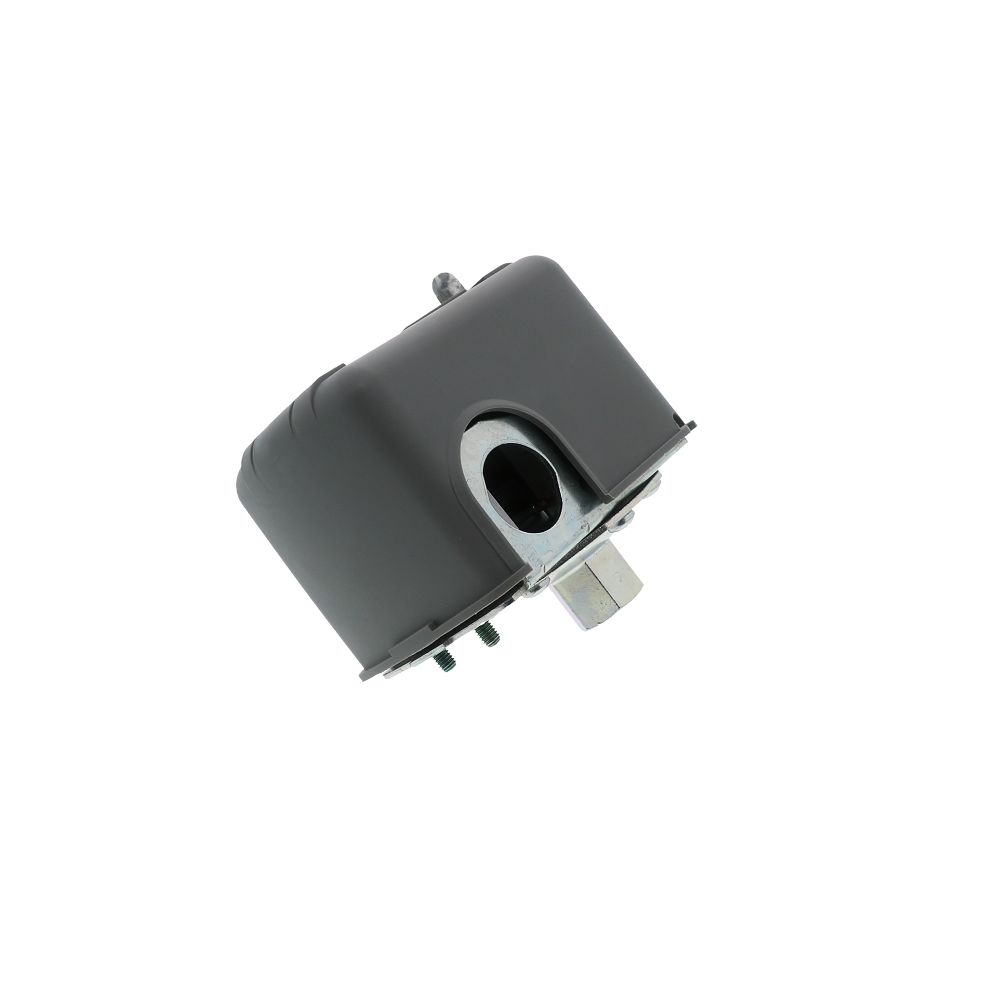

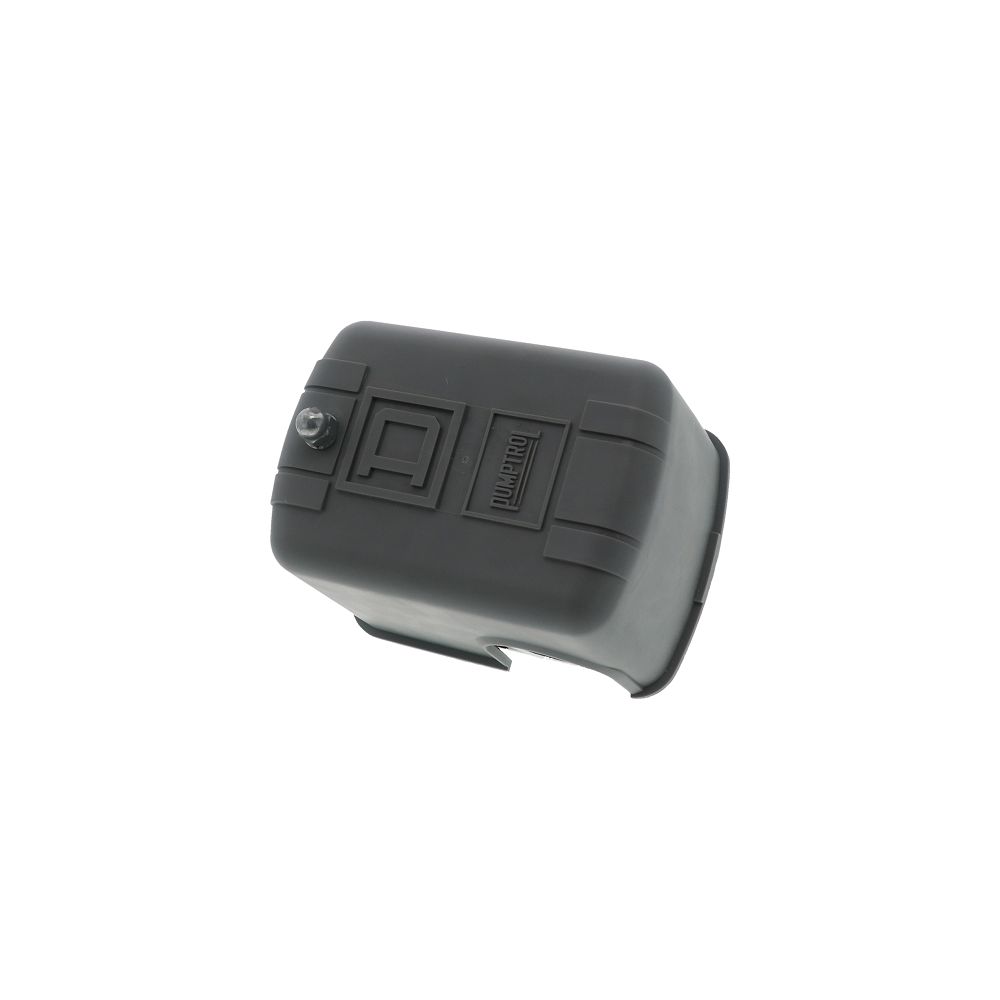

Square D Pumptrol 9013FSG42J16TZ22 Water Pump Pressure Switch 8-20 PSI

Part Number: 9013FSG42J16TZ22
Your price:
The Square D Pumptrol 9013FSG42J16TZ22 is an electromechanical water pump pressure switch. The sensing element confirms that the pressure has reached the predetermined set point and activates the switch. The 9013FSG42J16TZ22 unit is designed to control electrically driven water pumps such as circulators, submersibles, and boosters.

Features:
  • Factory Set Pressure 8-20 PSI. The Square D Pumptrol 9013FSG42J16TZ22 has a factory set cut-in/cut-out pressure of 8 and 20 PSI.
  • Ultra Durable Electromechanical Pressure Switch. The Square D Pumptrol 9013FSG42J16TZ22 is a ultra durable switch with a life span of more than 300,000 cycles.
  • UL Listed and CSA Certified. The Square D Pumptrol 9013FSG42J16TZ22 UL listed file is E12158 and the CSA file is LR25490. This switch also meets NSF/ANSI standard 61 Annex G.
Specifications:
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor & Outdoor Use
  • Pressure Connection: 1/4" FPT
  • Controlled Fluid: -22° to 257° F
  • Maximum Voltage Rating: 575VAC
  • Maximum Allowable Pressure: 220 psig
  • Short Circuit Protection: 20A by cartridge fuse, type gG
