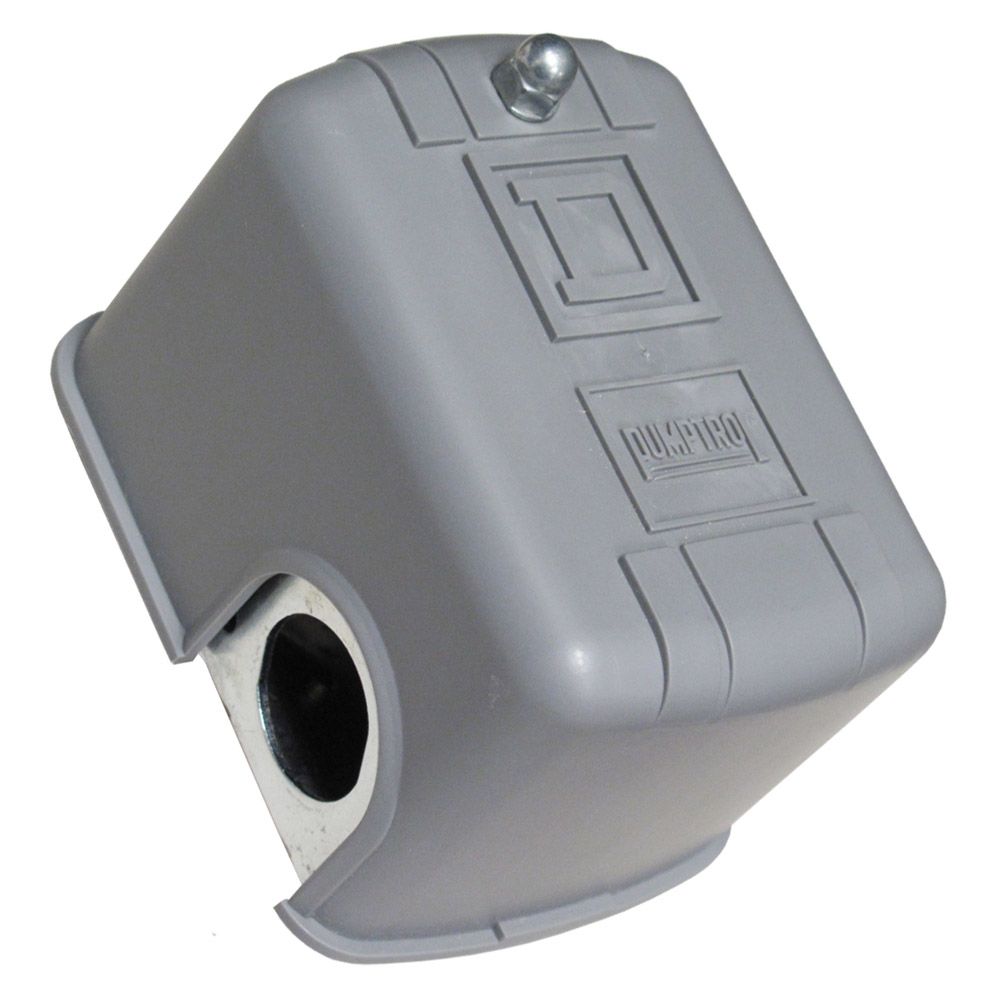

Square D Pumptrol 9013FSG42J16 Water Pump Pressure Switch 8-20 PSI

Part Number: 9013FSG42J16

In Stock

out of stock

In Stock

$27.20


The Square D Pumptrol 9013FSG42J16 is an electromechanical water pump pressure switch. The sensing element confirms that the pressure has reached the predetermined set point and activates the switch. The 9013FSG42J16 unit is designed to control electrically driven water pumps such as circulators, submersibles, and boosters.
Specifications:
  • Factory Set Cut-In Pressure: 8 psi
  • Factory Set Cut-Out Pressure: 20 psi

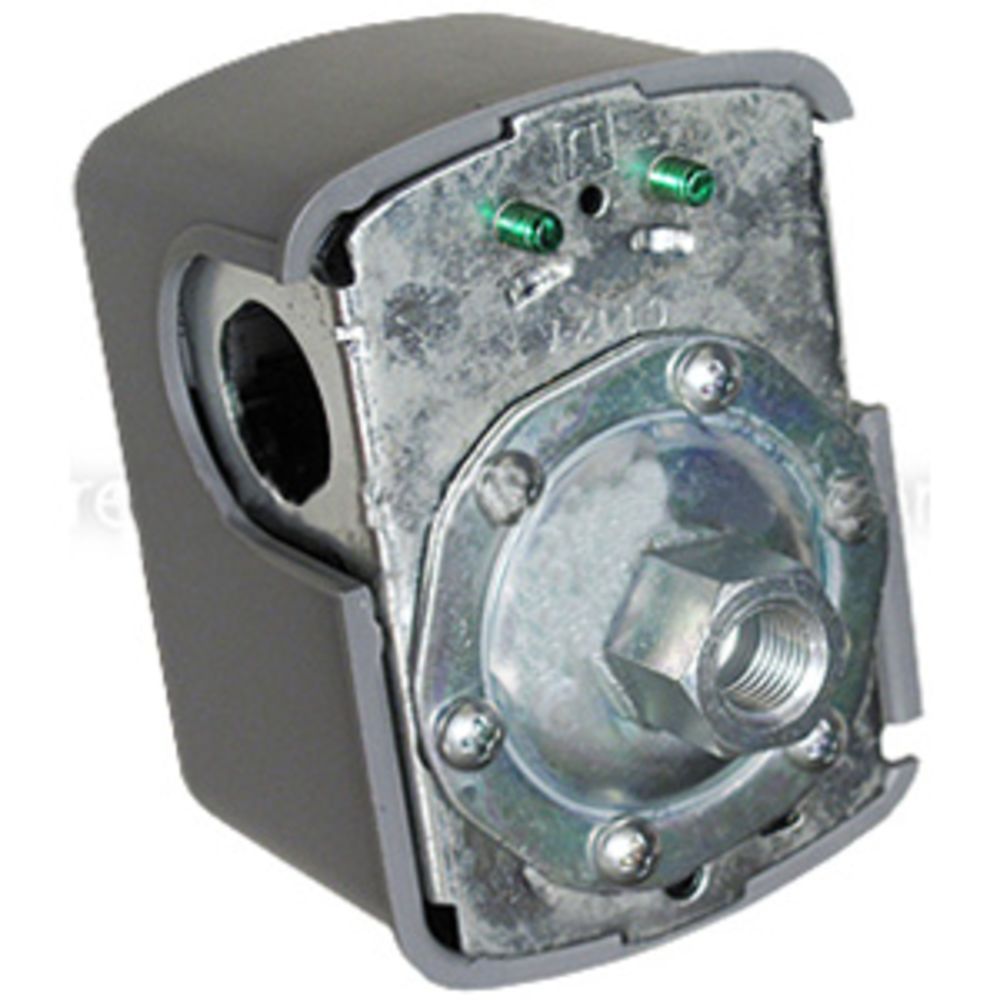

  • Pressure Connection: 1/4" FNPT
  • Controlled Fluid: -22° to 257° F
  • Maximum Voltage Rating: 575VAC
  • Short Circuit Protection: 20A by cartridge fuse, type gG
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified


Weight & Dimensions

Approx Height (Inches)

3.71 Inches

Approx Weight

1 Lbs

Approx Width (Inches)

2.78 Inches

Approx Depth

3.76 Inches

Details

Contact Arrangement

DPST

Differential Type

Adjustable

Flange Material

Zinc Plated Steel

Amps

20A

Connections

1/4" FPT

Diaphragm Materials

Nitrile (Buna N)

Max Operating Pressure

220 psi

Operating Pressure Range

6 - 20 psig

Rating

NEMA 1; 575 VAC

Pressure Setting

30/50 psi

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed; CSA Certified
