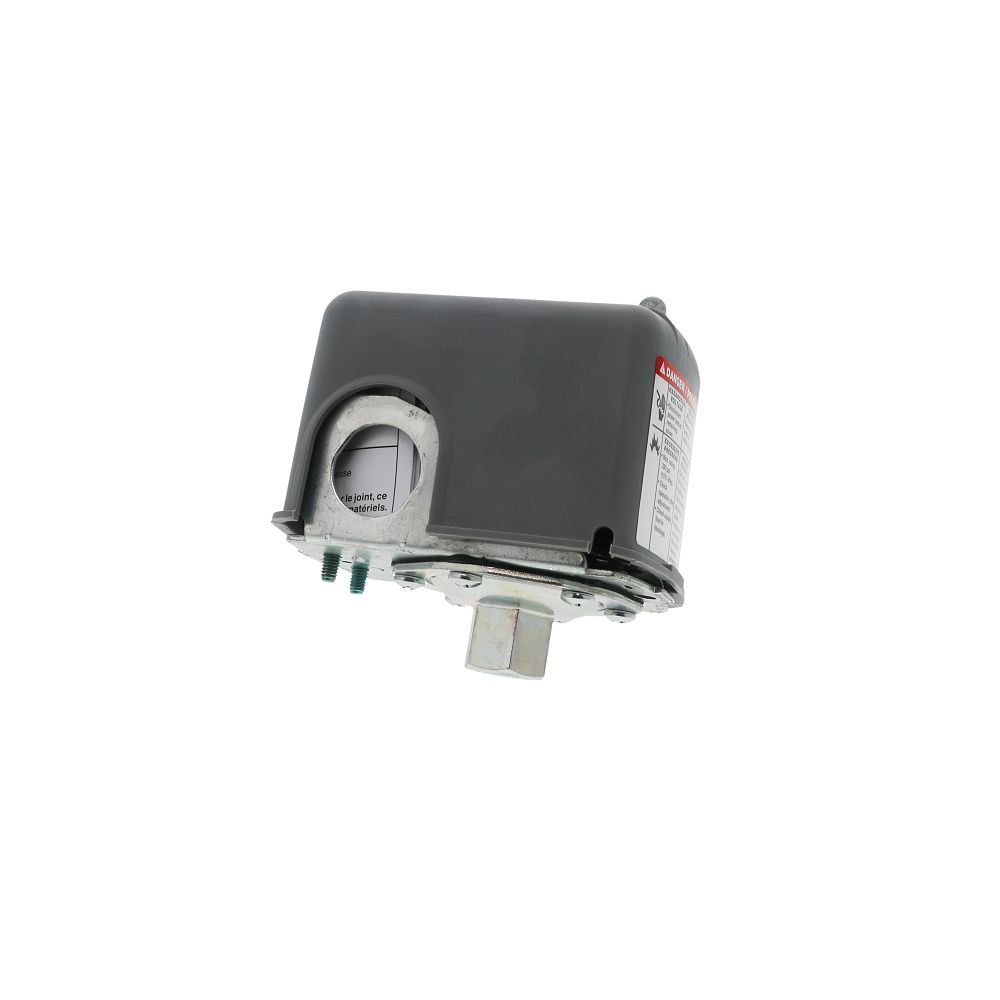

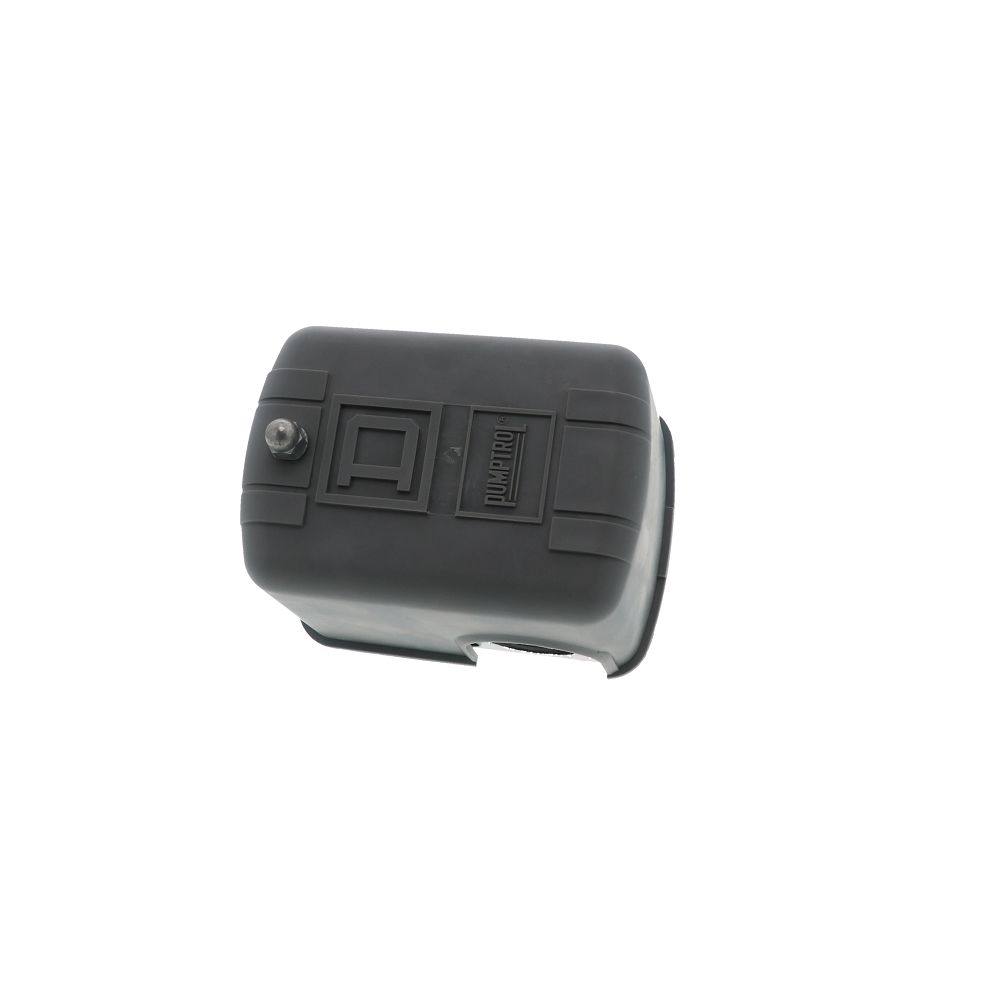

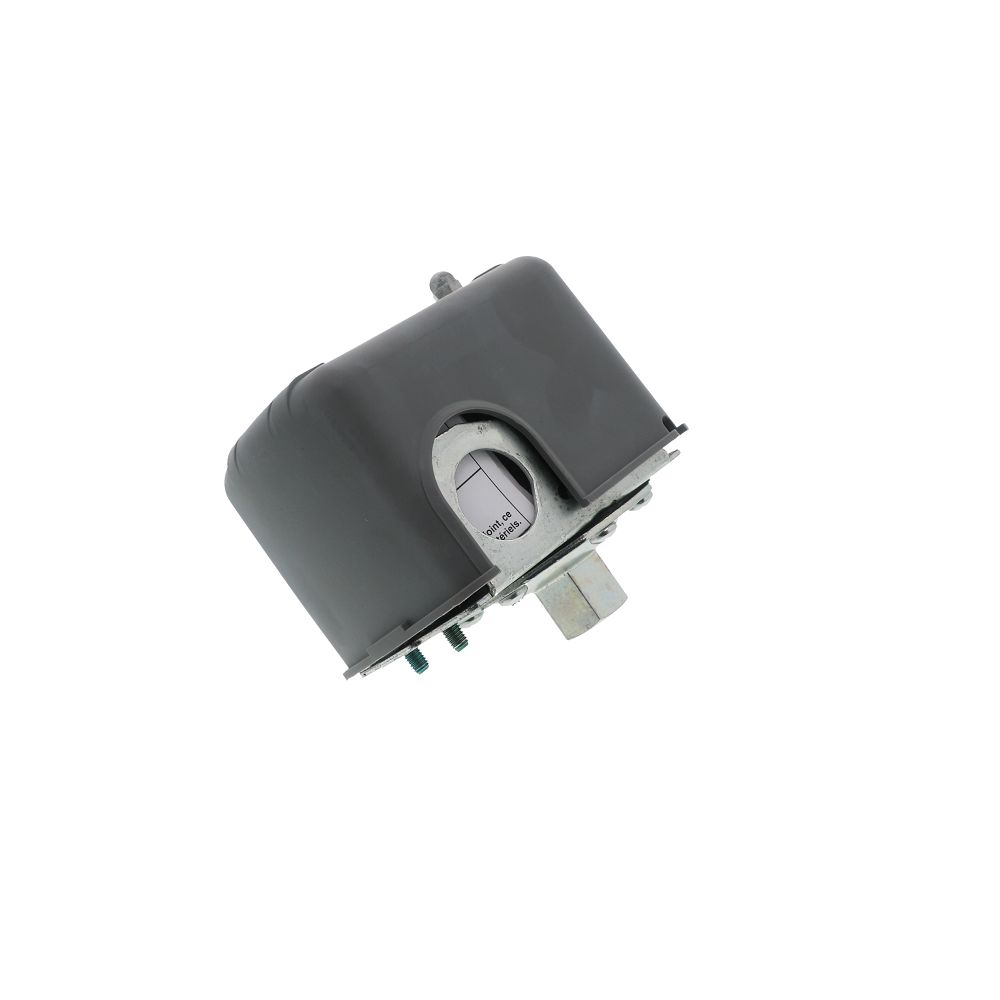

Square D Pumptrol 9013FSG2J24 Well Tank Pressure Switch 40-60 psi

Part Number: 9013FSG2J24

Alt. Part Number: FSG-2 40/60, 2FH08

In Stock

out of stock

In Stock

$22.30

Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Features:
  • Factory Set Cut-In Pressure: 40 psi
  • Factory Set Cut-Out Pressure: 60 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor Use




Weight & Dimensions

Approx Depth

2.78"

Approx Height (Inches)

2.80"

Approx Width (Inches)

3.76"

Weight (lbs)

1.13

Details

Amps

10 Amps

Diaphragm Materials

Buna-N

Max Pressure (Psi)

220

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Pressure Setting

40/60 psi

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Rating

NEMA 1, 575 VAC

Terminal Type

Screw Clamp

Origin

Mexico

Voltage

115V, 230V

Warranty & Certifications

Certifications

UL Listed; CSA Certified


Square




Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Features:
  • Factory Set Cut-In Pressure: 40 psi
  • Factory Set Cut-Out Pressure: 60 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor Use



Weight & Dimensions

Approx Depth

2.78"

Approx Height (Inches)

2.80"

Approx Width (Inches)

3.76"

Weight (lbs)

1.13

Details

Amps

10 Amps

Diaphragm Materials

Buna-N

Max Pressure (Psi)

220

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Pressure Setting

40/60 psi

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Rating

NEMA 1, 575 VAC

Terminal Type

Screw Clamp

Origin

Mexico

Voltage

115V, 230V

Warranty & Certifications

Certifications

UL Listed; CSA Certified
