Square D

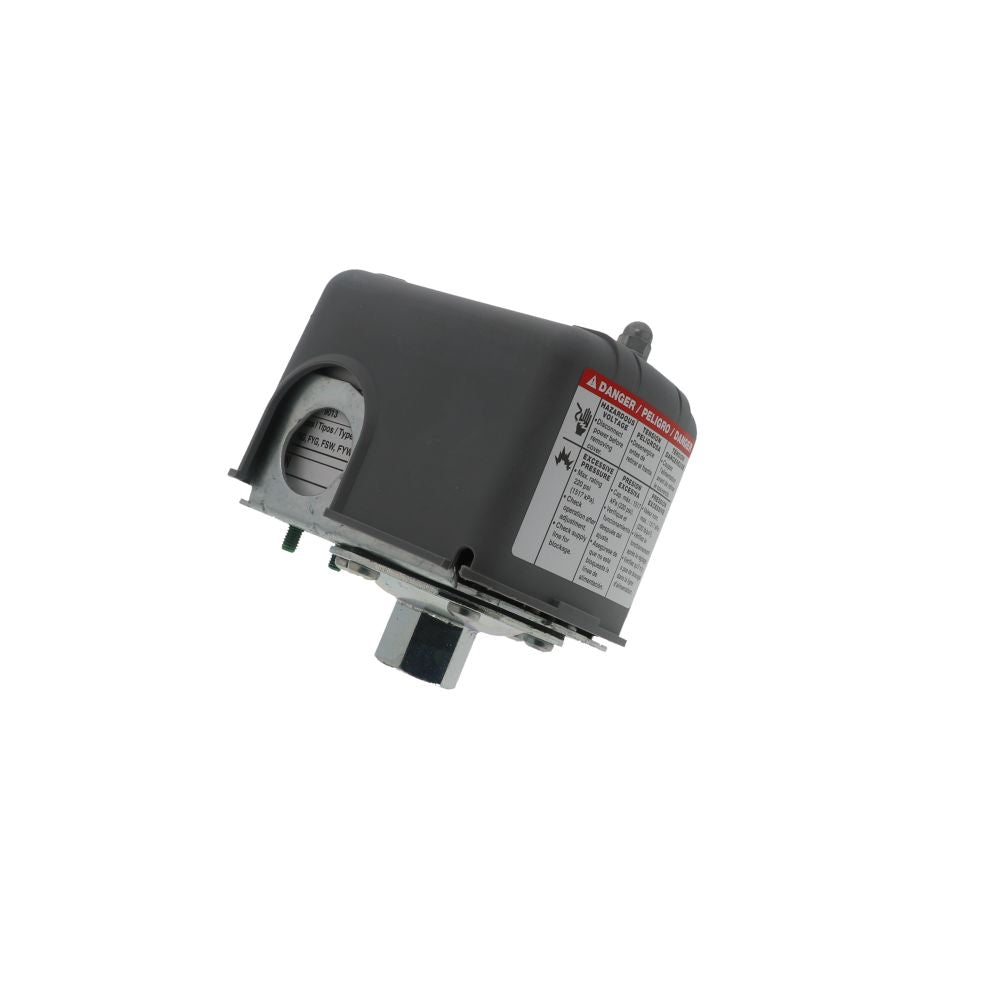

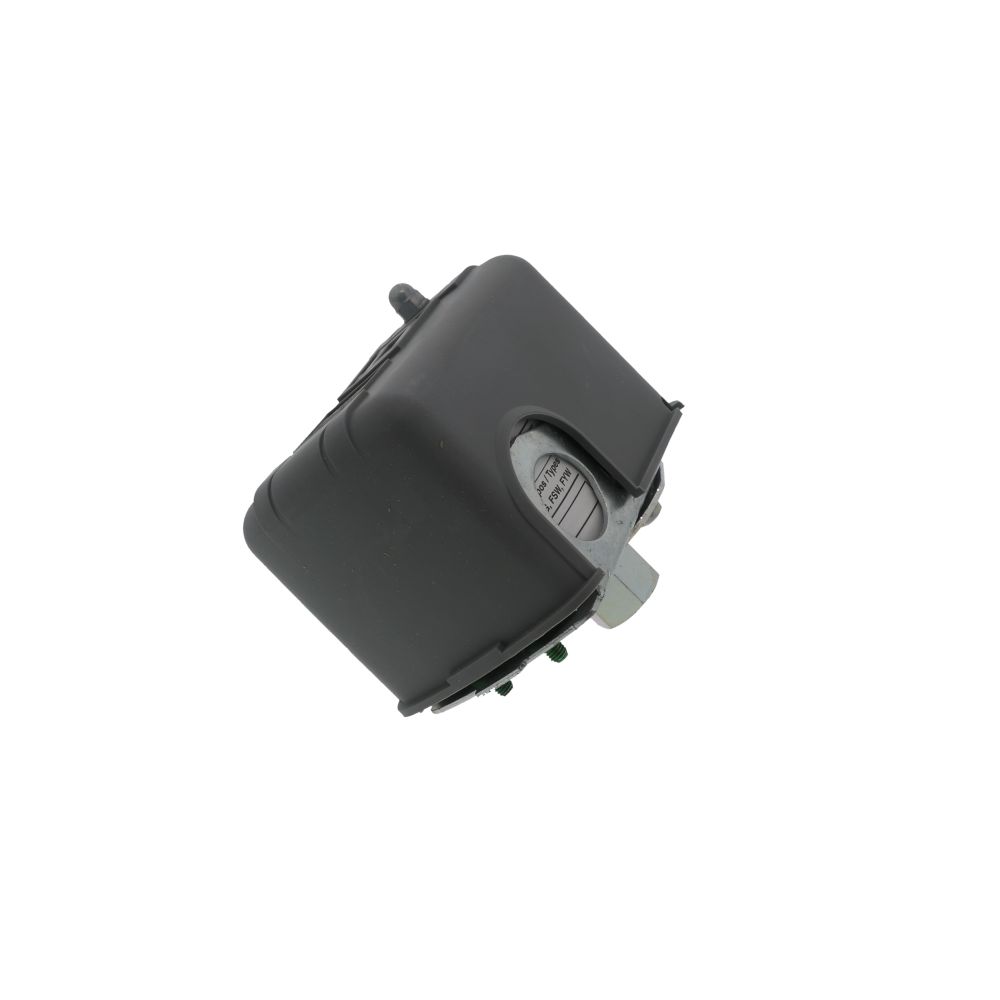

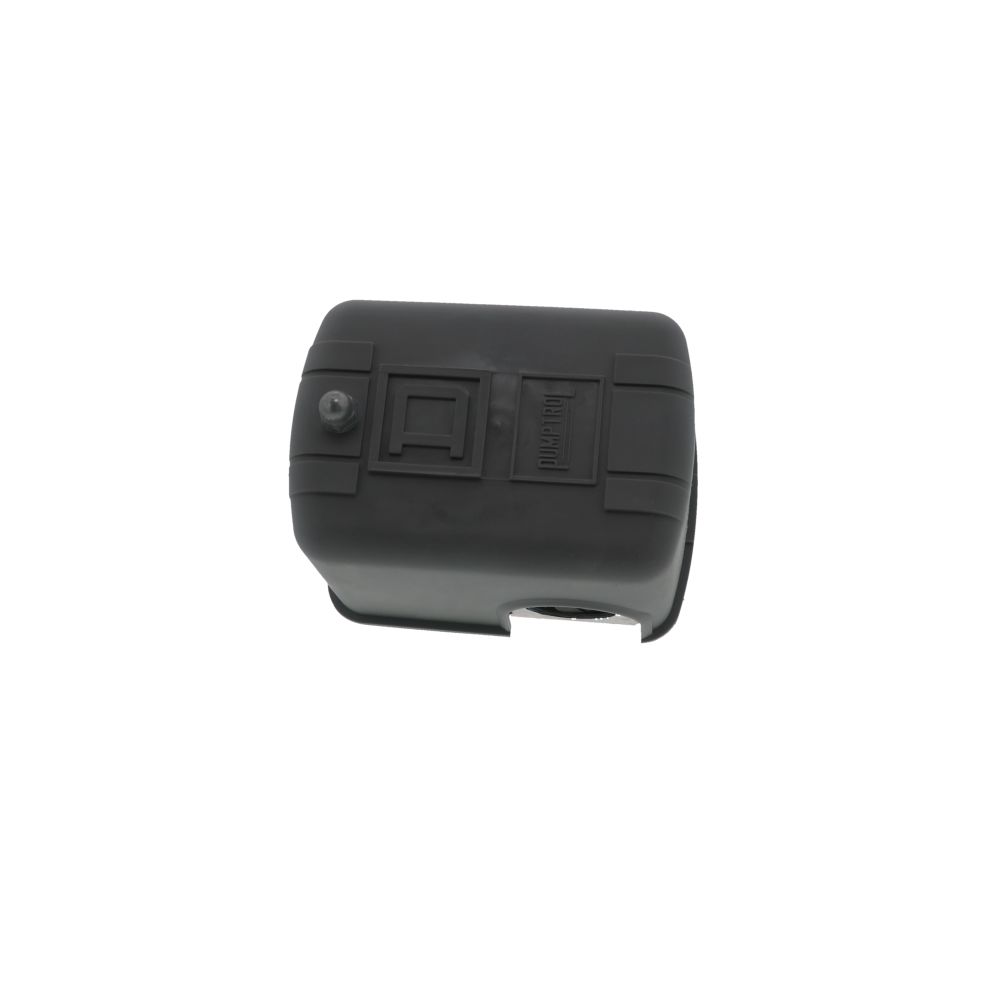

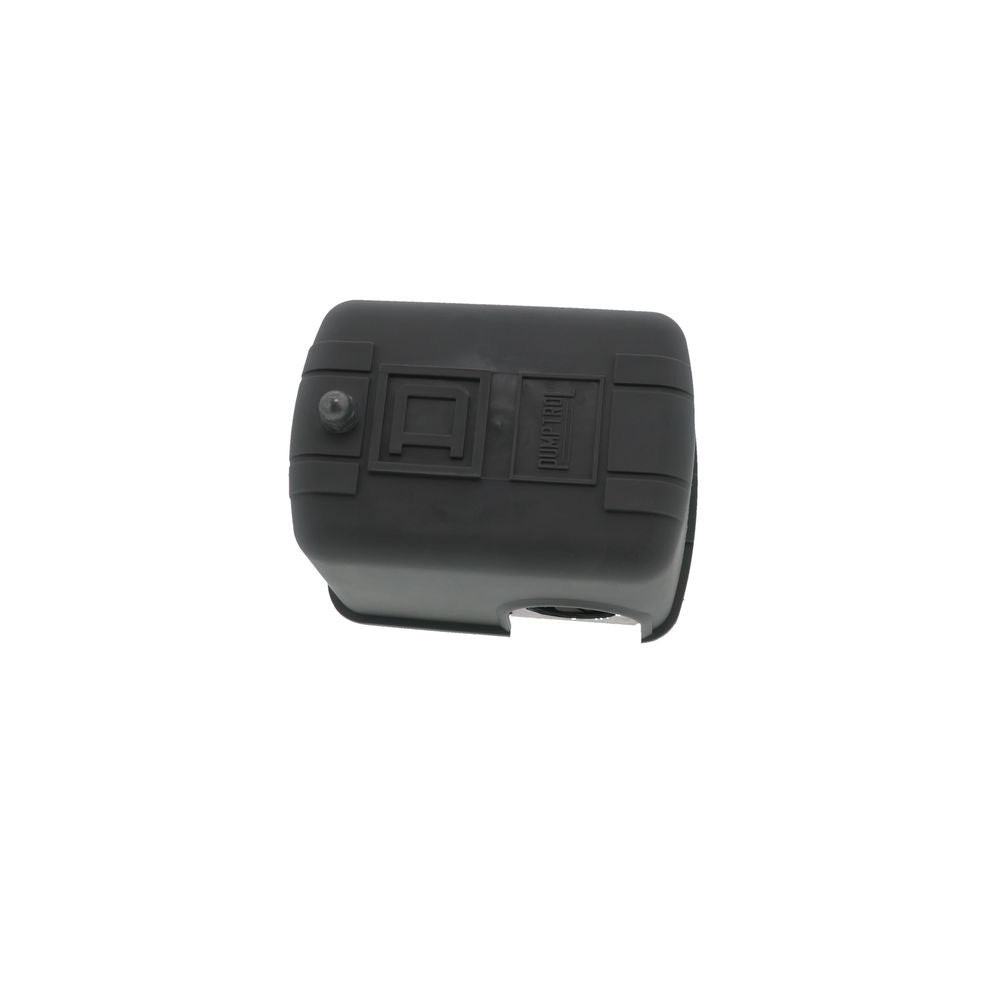

Square D Pumptrol 9013FSG2J21 Well Tank Pressure Switch 30-50 psi

Part Number: 9013FSG2J21

Alt. Part Number: FSG-2 30/50, 2FH02

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.


Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Factory Set Cut-In Pressure: 30 psi
  • Factory Set Cut-Out Pressure: 50 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor Use




Weight & Dimensions

Weight (lbs)

1.13

Approx Height (Inches)

2.80"

Approx Width (Inches)

3.76"

Approx Depth

2.78"

Details

Max Pressure (Psi)

220

Amps

10 Amps

Diaphragm Materials

Buna-N

Origin

Mexico

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 230 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Voltage

115V, 230V

Rating

NEMA 1, 575 VAC

Pressure Setting

30/50 psi

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed, CSA Certified


Square





Square D Pumptrol 9013FSG well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:
  • Factory Set Cut-In Pressure: 30 psi
  • Factory Set Cut-Out Pressure: 50 psi
  • Pressure Connection: 1/4" FNPT
  • Maximum Voltage Rating: 575VAC
  • Amps: 10A
  • Maximum Allowable Pressure: 220 psig
  • Actuator Type: Diaphragm
  • Diaphragm: Nitrile (Buna N)
  • UL Listed and CSA Certified
  • Indoor Use



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Weight (lbs)

1.13

Approx Height (Inches)

2.80"

Approx Width (Inches)

3.76"

Approx Depth

2.78"

Details

Max Pressure (Psi)

220

Amps

10 Amps

Diaphragm Materials

Buna-N

Origin

Mexico

Power

1.5 HP @ 115 VAC (1-phase), 2 HP @ 230 VAC (1-phase), 2 HP @ 115 VAC (3-phase), 3 HP @ 230 VAC (3-phase), 1 HP @ 460/575 VAC (3-phase)

Voltage

115V, 230V

Rating

NEMA 1, 575 VAC

Pressure Setting

30/50 psi

Range On Decreasing Pressure

10 - 45 psig

Range On Increasing Pressure

20 - 65 psig

Terminal Type

Screw Clamp

Warranty & Certifications

Certifications

UL Listed, CSA Certified
