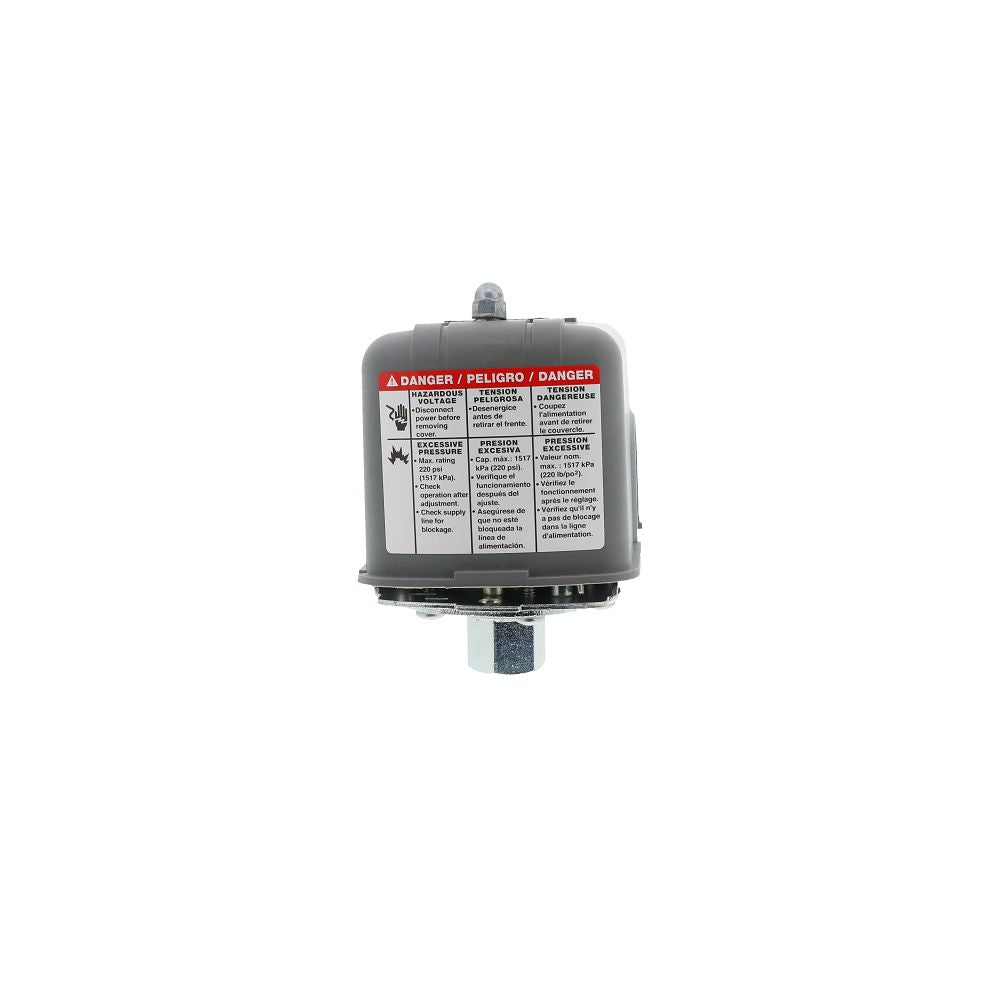

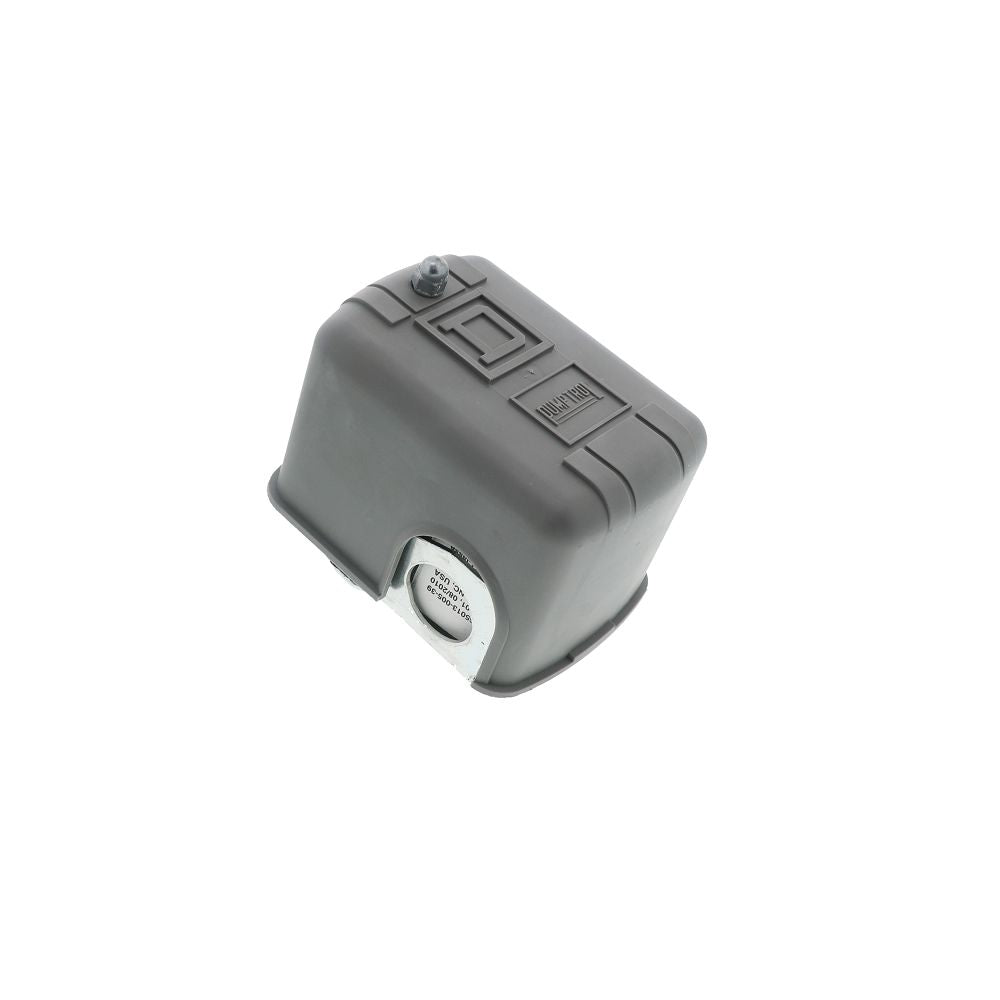

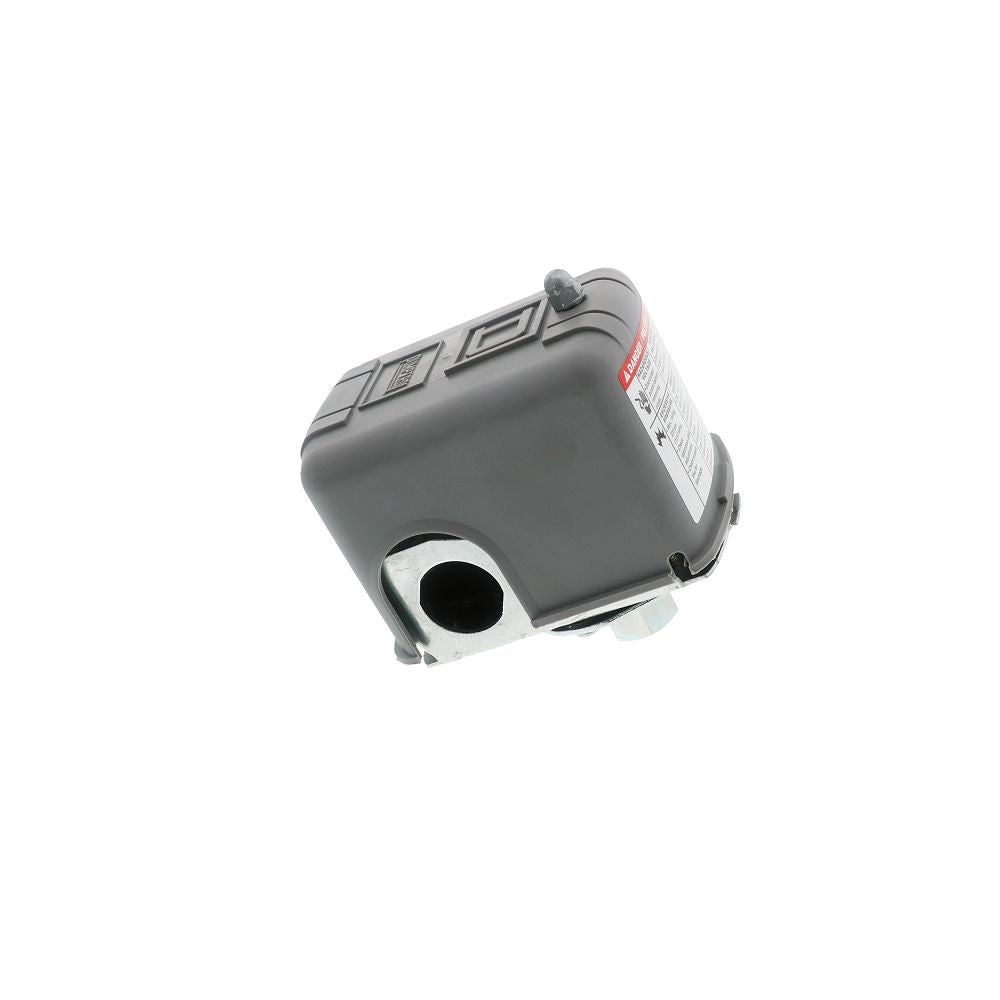

Square D Pressure Switch, DPST, 20/50 PSI, Diaphragm 9013FSG2J18

Home / Parts & Accessories / Switches / Square D Pressure Switch, DPST, 20/50 PSI, Diaphragm 9013FSG2J18

Square D Pumptrol 9013FSG2J18 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:

Factory Set Cut-In Pressure: 20 psi
Factory Set Cut-Out Pressure: 50 psi
Pressure Connection: 1/4" FNPT
Maximum Voltage Rating: 575VAC
Actuator Type: Diaphragm
Diaphragm: Nitrile (Buna N)
UL Listed and CSA Certified
Indoor Use

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Buna-N
Connection Type	Screw Clamp
Shipping Dimensions
Shipping Length	4 in.
Shipping Width	3 in.
Shipping Height	4 in.
Product Weight & Dimensions
Approx Depth	3.76"
Product Height	2.8"
Product Width	2.78"
Product Weight (lbs)	1.13

Factory Set Cut-In Pressure: 20 psi
Factory Set Cut-Out Pressure: 50 psi
Pressure Connection: 1/4" FNPT
Maximum Voltage Rating: 575VAC
Actuator Type: Diaphragm
Diaphragm: Nitrile (Buna N)
UL Listed and CSA Certified
Indoor Use

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
