Colder Products

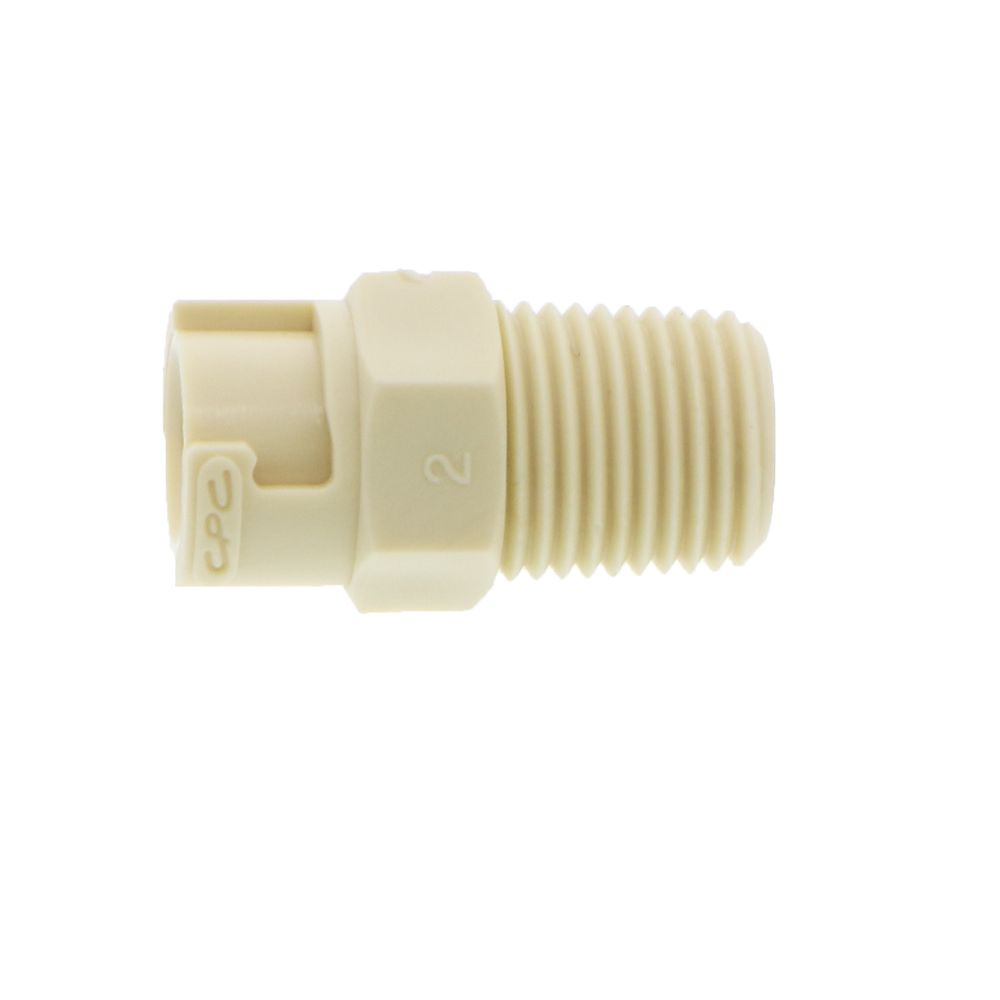

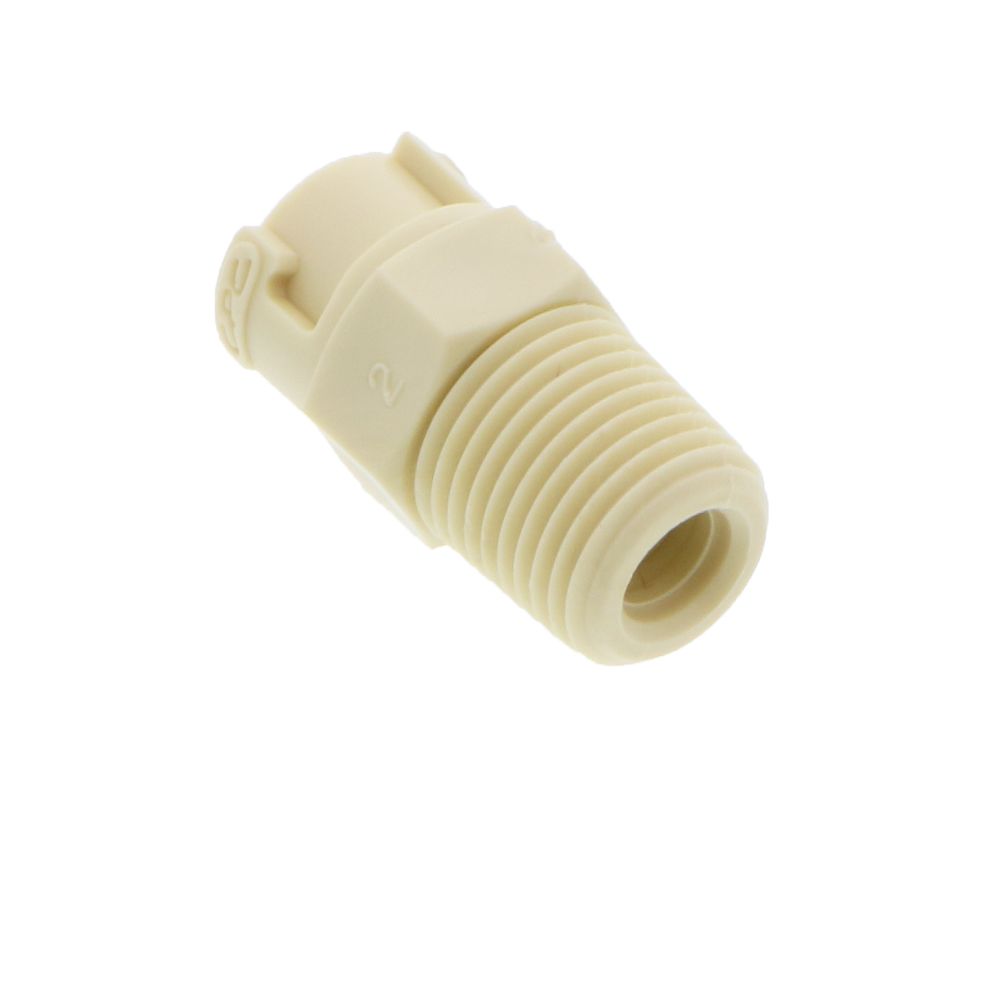

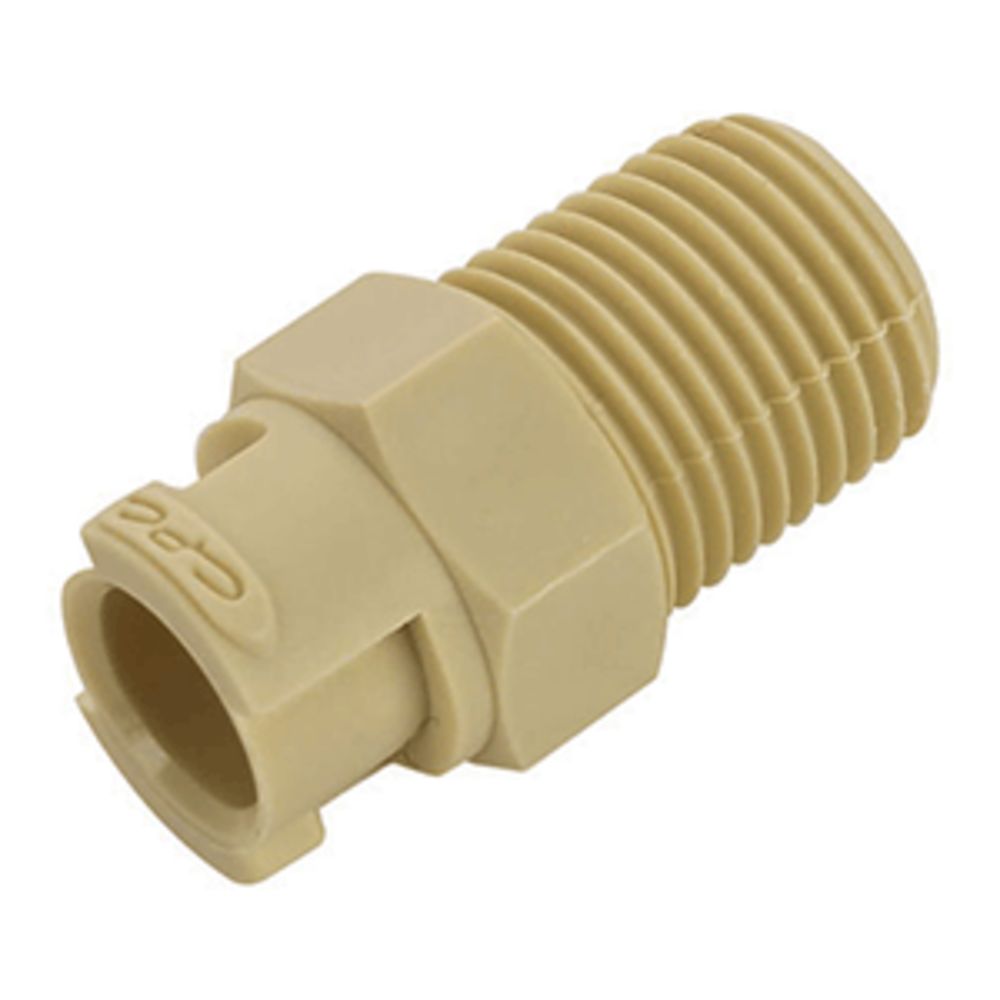

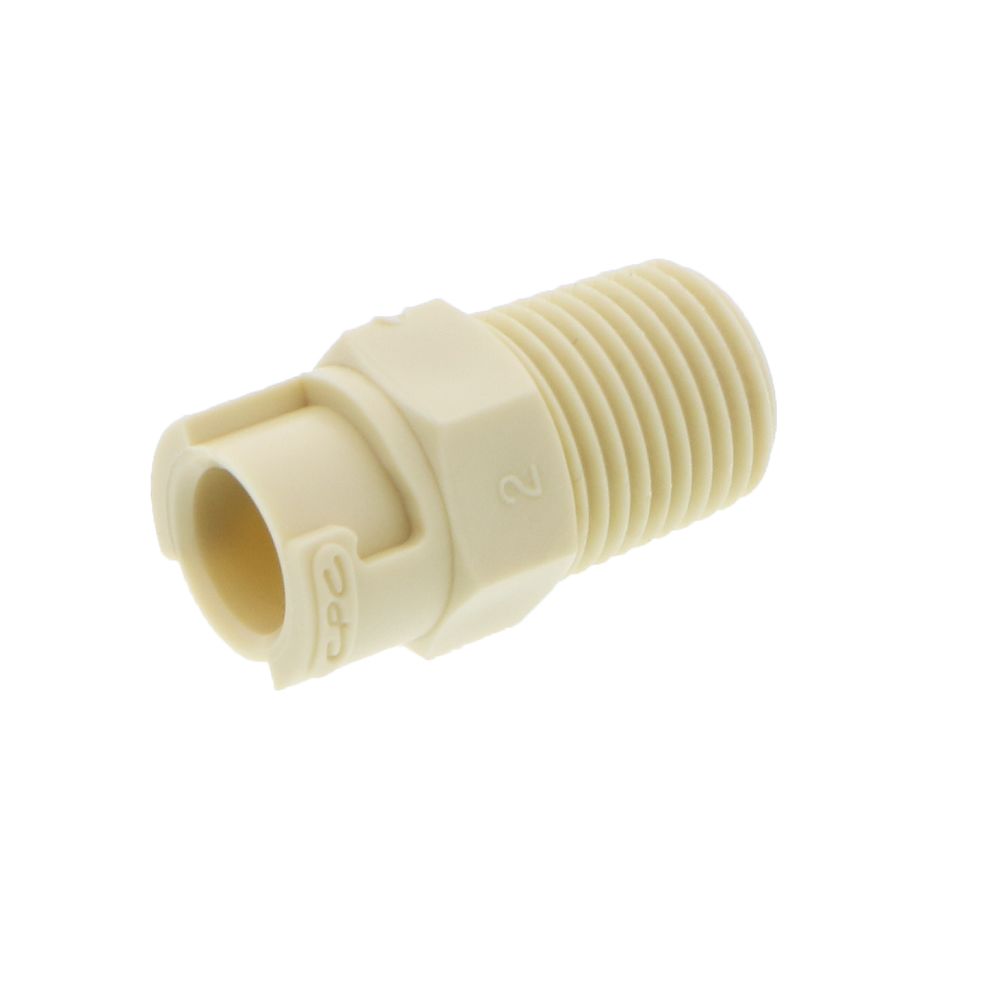

SMPT0212 Non-Valved Male Thread Coupling Body 1/8 MPT

Part Number: SMPT0212

In Stock

out of stock

In Stock

$0.97

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Available in Bags of 50 units




Weight & Dimensions

Weight (lbs)

0.01

Details

Series

SMC

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

50

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Thread

Origin

USA

Size

1/8"

Spring

316 Stainless Steel

Valve Type

Non-Valved

Inlet/Outlet Connection

1/8" MPT


SMPT0212




Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Available in Bags of 50 units



Weight & Dimensions

Weight (lbs)

0.01

Details

Series

SMC

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

50

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Thread

Origin

USA

Size

1/8"

Spring

316 Stainless Steel

Valve Type

Non-Valved

Inlet/Outlet Connection

1/8" MPT

Documentation
SMPT0212
