Colder Products

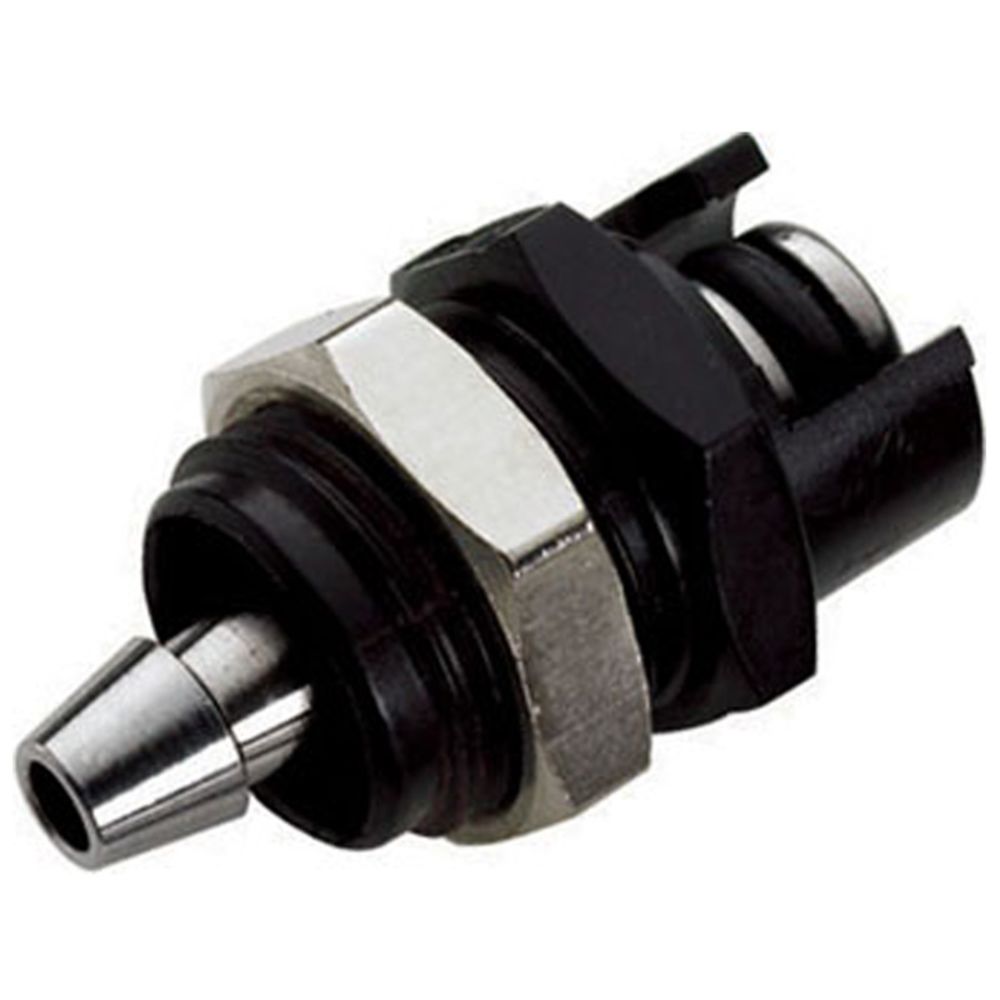

SMMPM02CBBLK Non-Valved Inline Coupling Insert 1/8 Hose Barb

Part Number: SMMPM02CBBLK

In Stock

out of stock

In Stock

$9.97

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications
  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units




Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Barb Size

1/8" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

SMC

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert


SMMPM02CBBLK




Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications
  • Material: Brass
  • Material Finish: Chrome
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units



Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Barb Size

1/8" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

SMC

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert

Documentation
SMMPM02CBBLK
