Colder Products

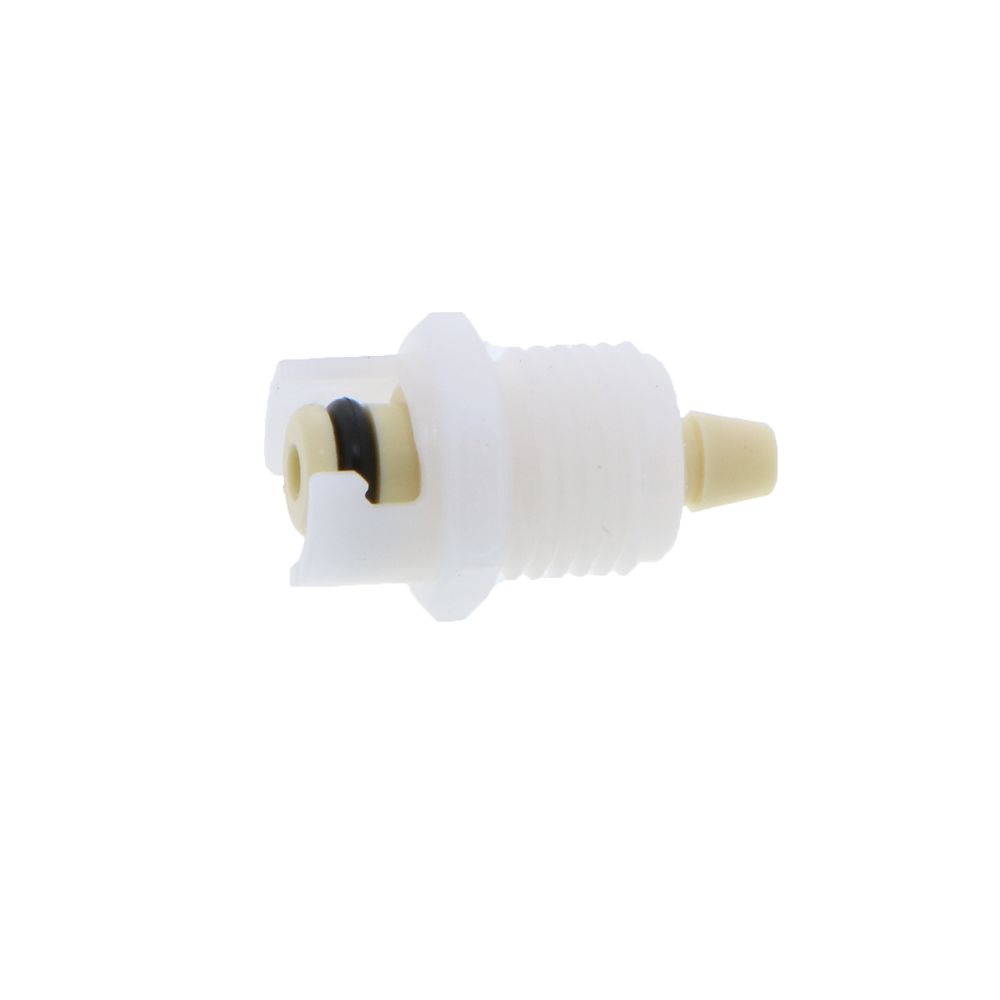

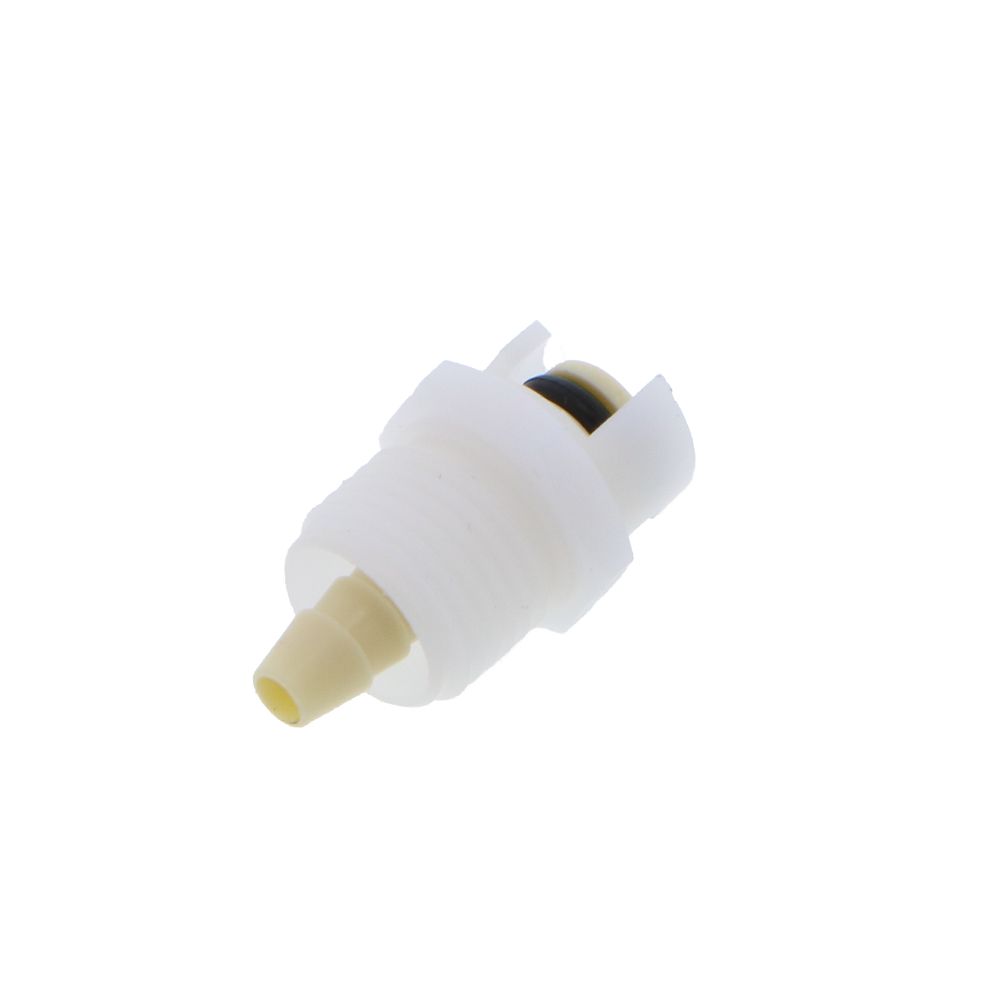

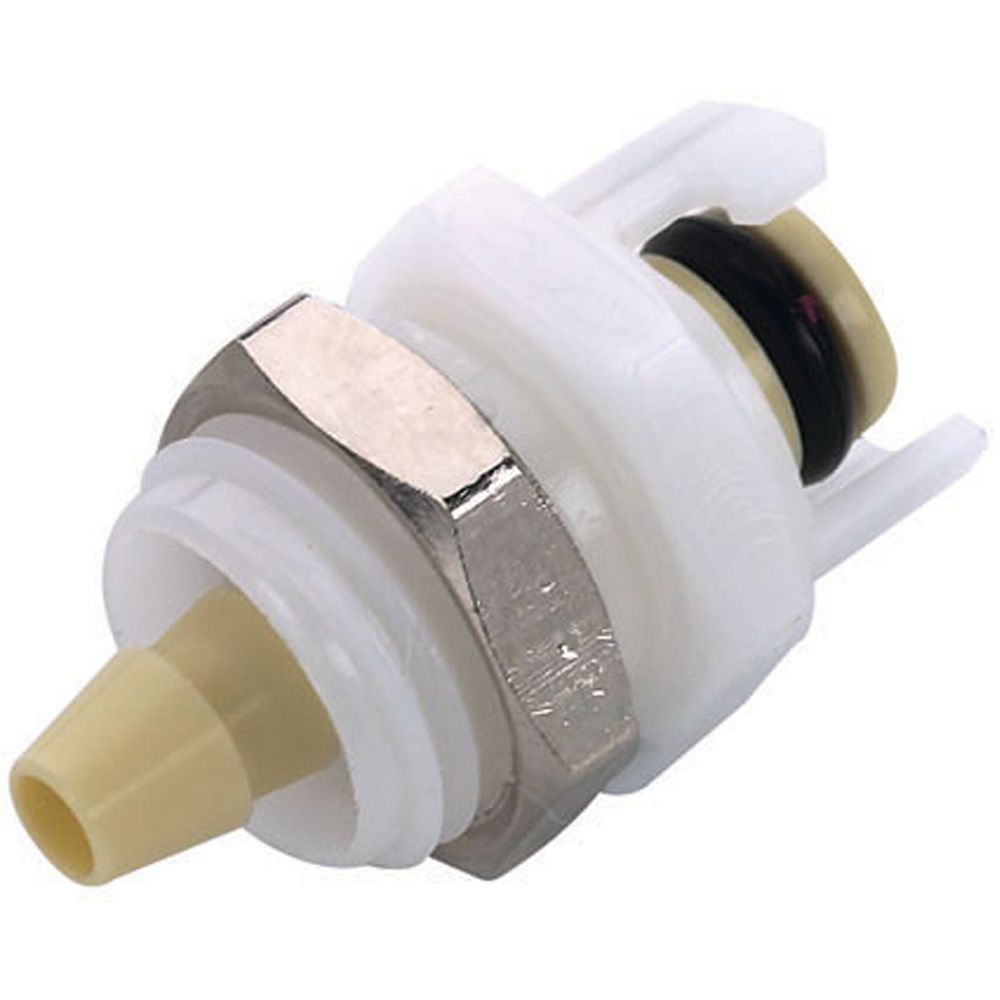

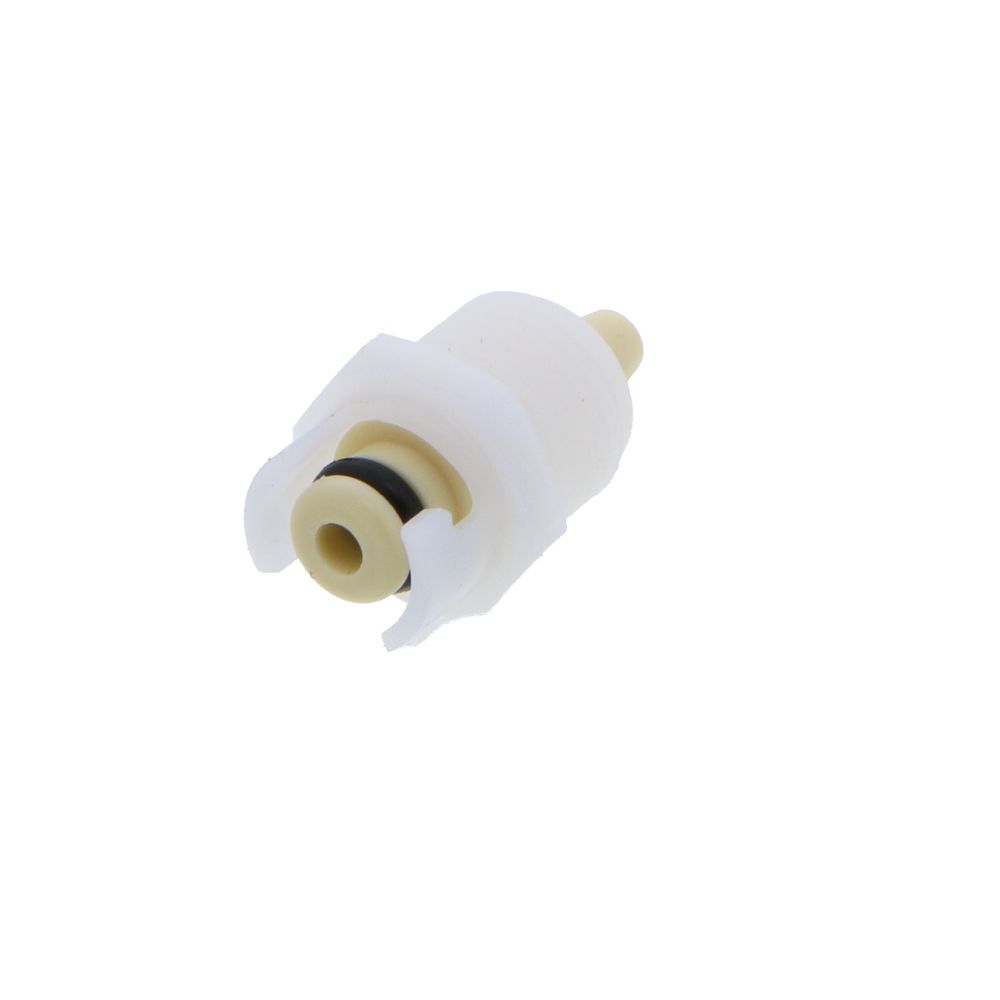

SMMPM0212 Non-Valved Inline Coupling Insert 1/8 Hose Barb

Part Number: SMMPM0212

In Stock

out of stock

In Stock

$3.34

Intended Use:

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications :
  • Material: Polypropylene
  • Material Finish: Almond
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Color: White
  • Mounting Option: Free Floating
  • Valve Option: Panel Mount
  • Temperature Range: 32º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units


Details

Series

SMC

Barb Size

1/8" ID

Bag Quantity

50

Body Material

Polypropylene

Color / Finish

White, Almond

Max Operating Pressure

Vacuum to 100 PSI, 6.9 bar

Operating Temperature Range

32-180 °F

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Non-Valved


SMMPM0212




Intended Use:

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications :
  • Material: Polypropylene
  • Material Finish: Almond
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Color: White
  • Mounting Option: Free Floating
  • Valve Option: Panel Mount
  • Temperature Range: 32º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units

Details

Series

SMC

Barb Size

1/8" ID

Bag Quantity

50

Body Material

Polypropylene

Color / Finish

White, Almond

Max Operating Pressure

Vacuum to 100 PSI, 6.9 bar

Operating Temperature Range

32-180 °F

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Non-Valved
