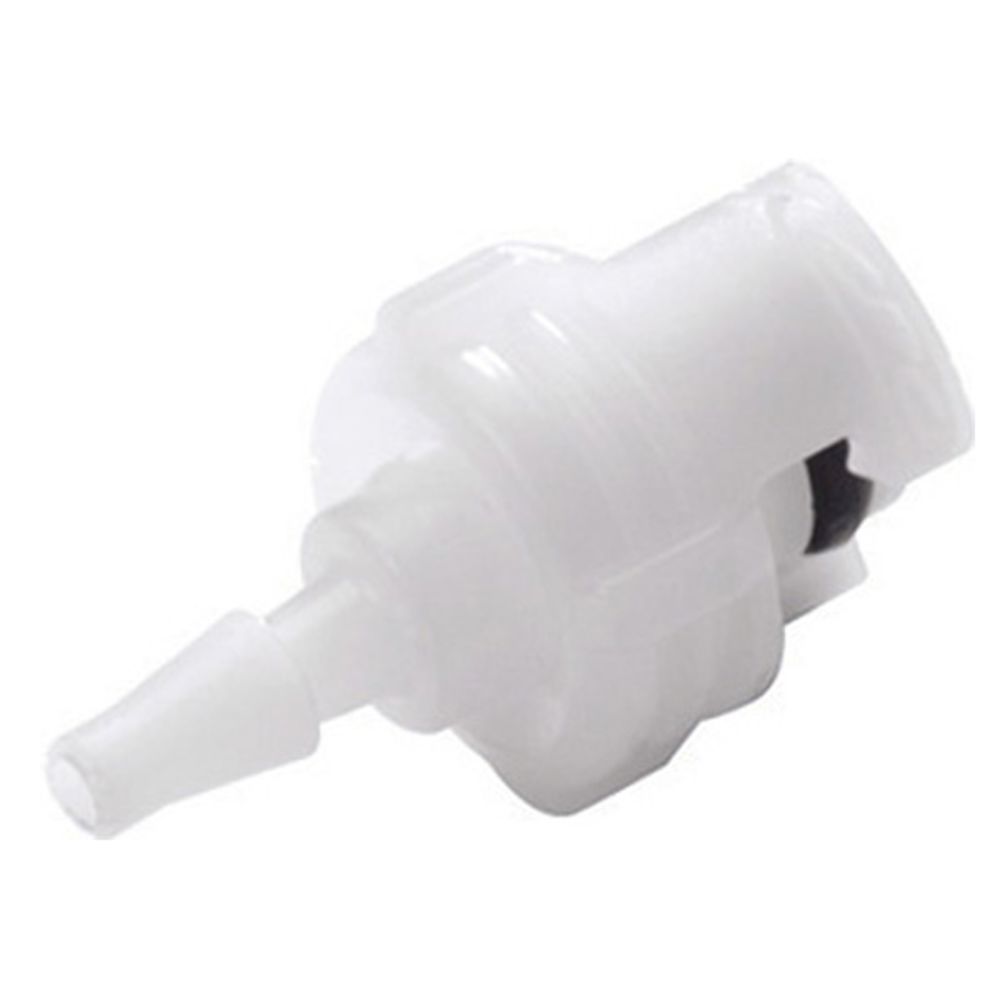

SMMM3 Non-Valved Inline Coupling Insert 3mm Hose Barb

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:

Material: Acetal
Color: Natural
Pressure Range: Vacuum to 100 psi, 6.9 bar
Mounting Option: Free Floating
Valve Option: Non-Valved
Temperature Range: -40º F to 180º F
Available in Bags of 50 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	3mm ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Insert

Product Details
Application	Water
Barb Size	3mm ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Insert

Product Details
Application	Water
Barb Size	3mm ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Valve Type	Non-Valved
Color / Finish	White
Origin	U.S.A.
Type	Coupling Insert
