Colder Products

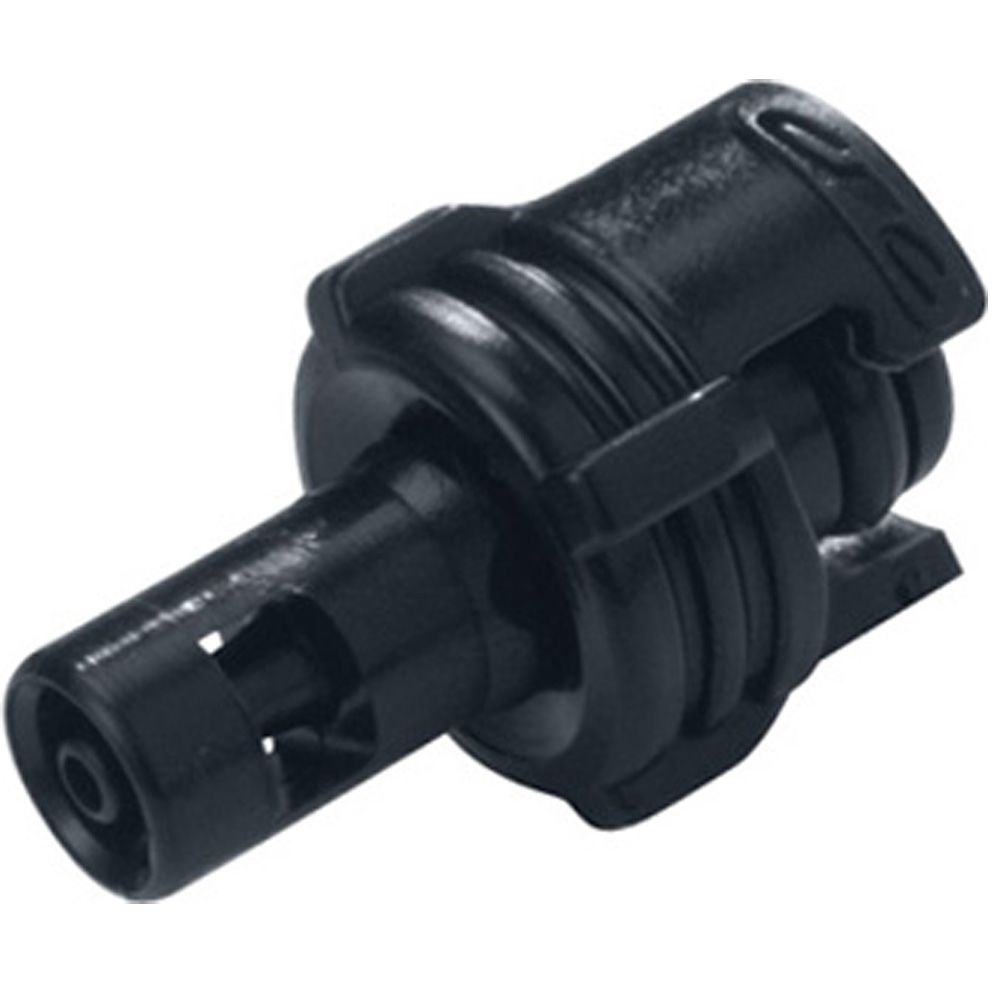

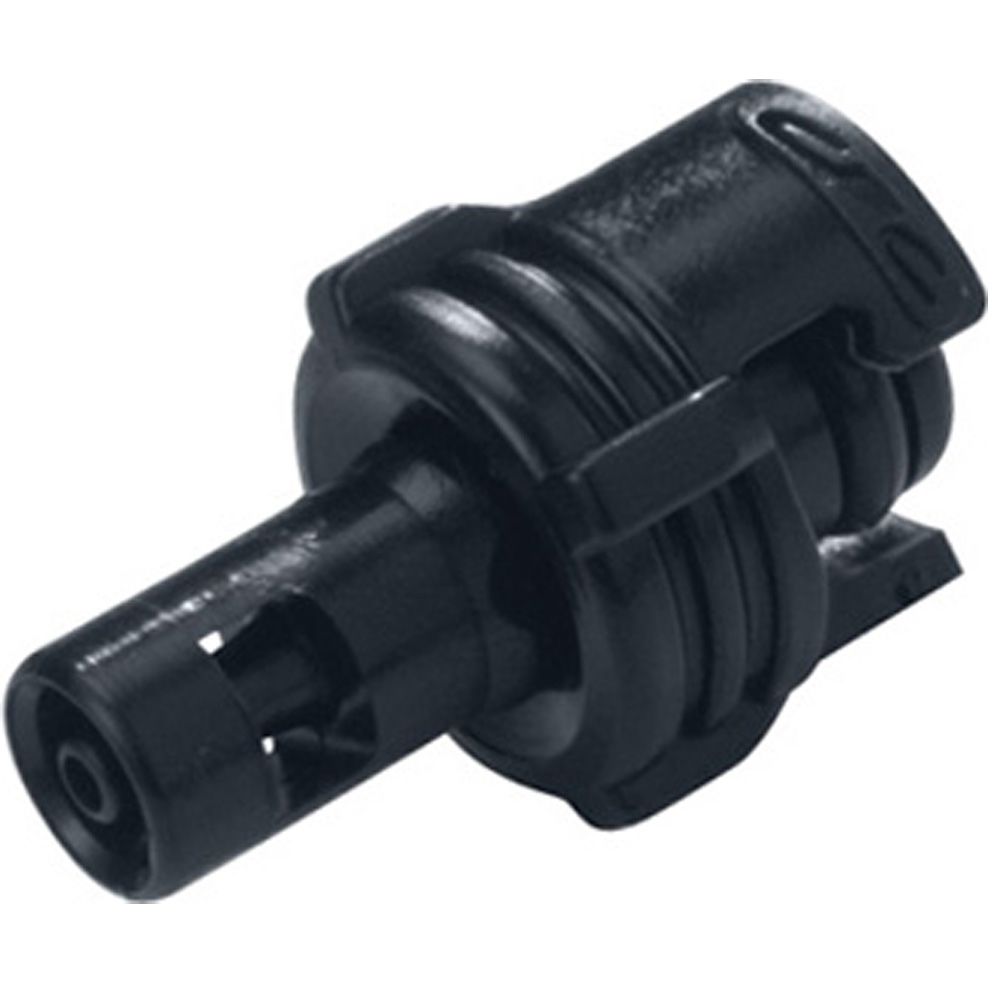

SMM01MBLK Non-Valved Inline Coupling Insert 1/16 Hose Barb

Part Number: SMM01MBLK

In Stock

out of stock

In Stock

$1.69

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Acetal
  • Color: Molded Black
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units




Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Barb Size

1/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

SMC

Valve Type

Non-Valved

Color / Finish

Black

Origin

USA

Type

Coupling Insert


SMM01MBLK




Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Acetal
  • Color: Molded Black
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40º F to 180º F
  • Seal Options: Buna-N
  • Available in Bags of 50 units



Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Barb Size

1/16" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

100

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

SMC

Valve Type

Non-Valved

Color / Finish

Black

Origin

USA

Type

Coupling Insert
