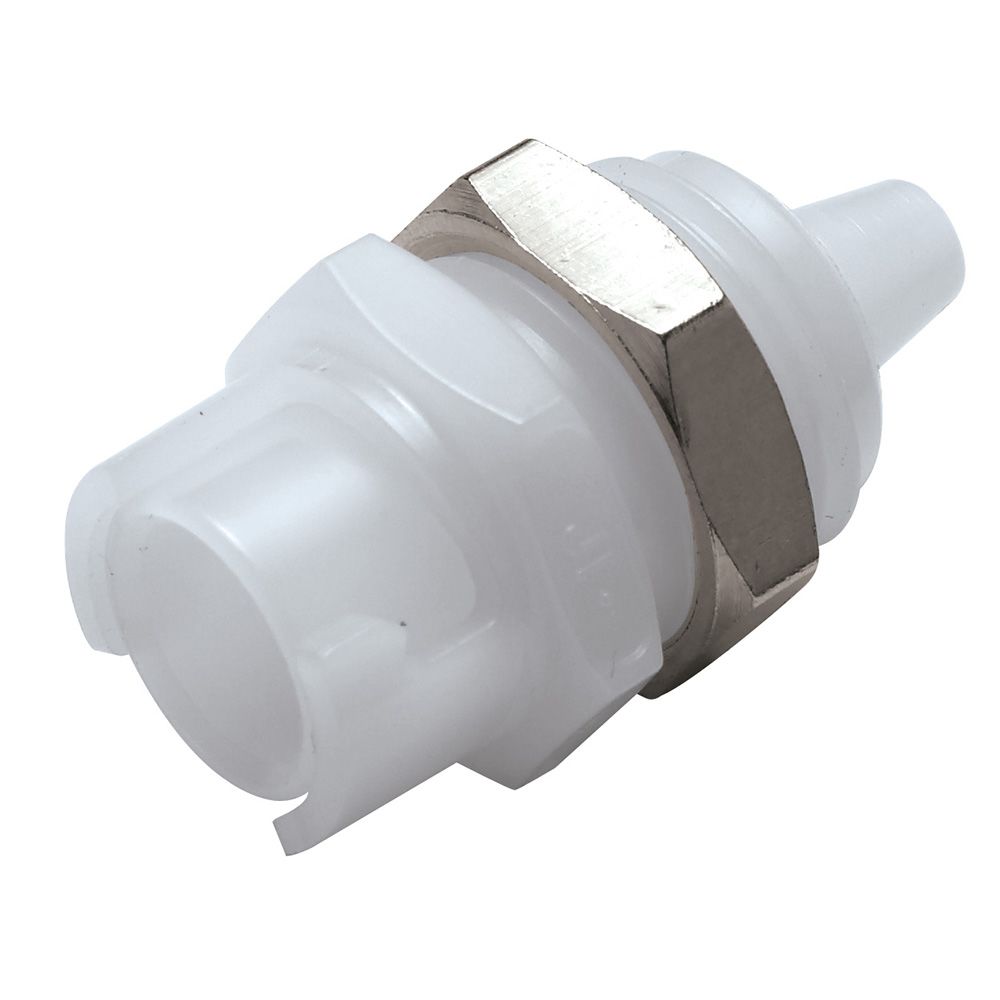

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.
Specifications;
Specifications;
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: -40º F to 180º F
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 50 unit
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Seal Material | Buna-N |
Series | SMC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Type | Coupling Body |
Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.
Specifications;
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: -40º F to 180º F
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 50 unit
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Seal Material | Buna-N |
Series | SMC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | White |
Type | Coupling Body |
