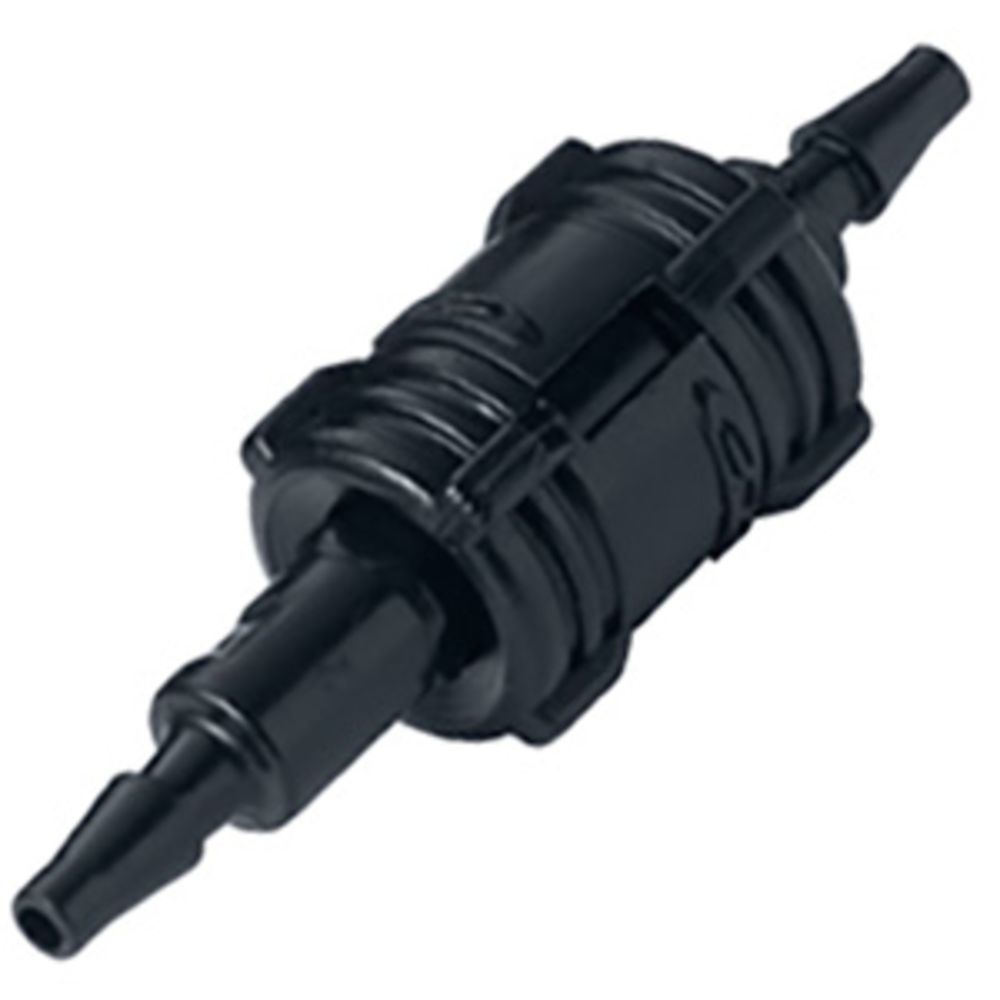

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.
Specifications
Specifications
- Material: Acetal
- Color: Black
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40º F to 180º F
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 50 units
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | SMC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black |
Type | Coupling Set |
Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.
Specifications
- Material: Acetal
- Color: Black
- Pressure Range: Vacuum to 100 psi, 6.9 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40º F to 180º F
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 50 units
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Application | Water |
Barb Size | 3mm ID |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 100 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Free Floating |
Seal Material | Buna-N |
Series | SMC |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black |
Type | Coupling Set |
