Colder Products

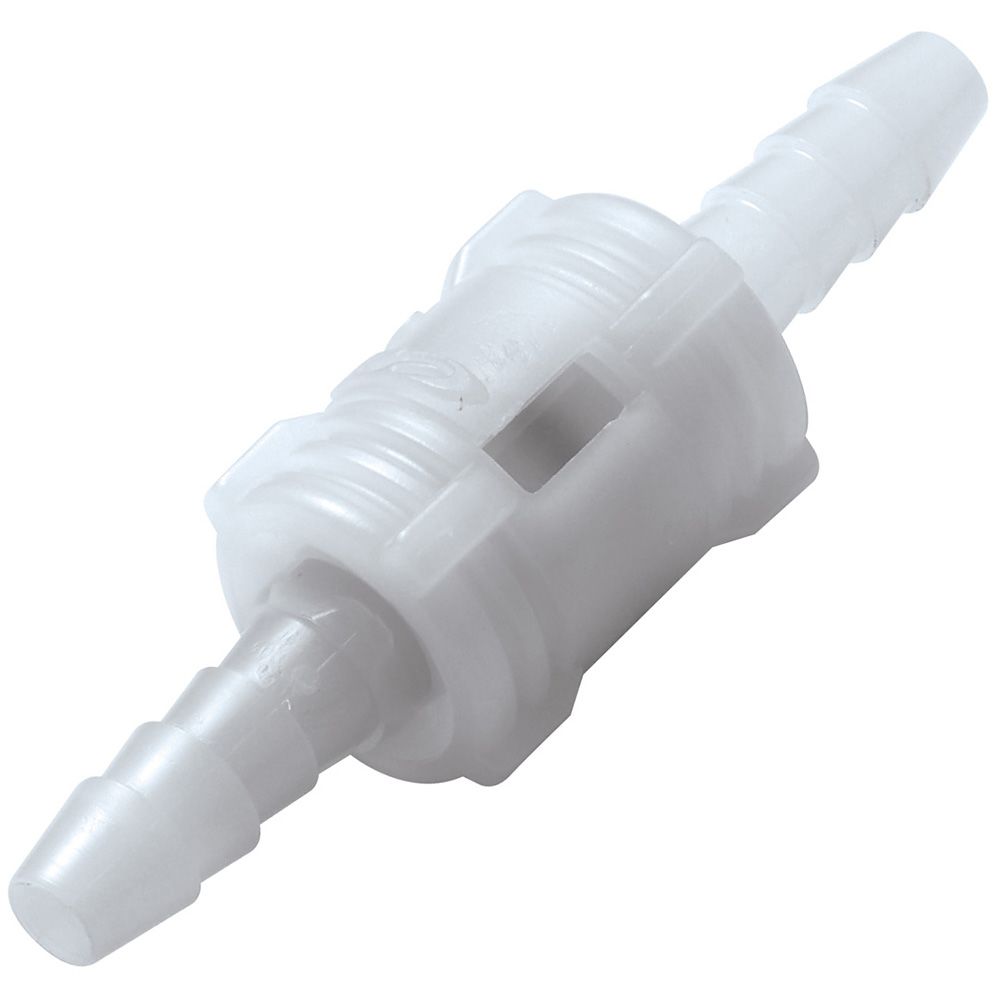

SMCD02 Valved Inline Hose Barb Coupling Set 1/8 ID Barb

Part Number: SMCD02

In Stock

out of stock

In Stock

$9.50

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 50 units




Weight & Dimensions

Length (inches)

1.5

Height (inches)

0.19

Width (inches)

0.44

Weight (lbs)

0.000625

Details

Series

SMC

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

50

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Free Floating

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved


SMCD02




Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 100 psi, 6.9 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40º F to 180º F
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 50 units



Weight & Dimensions

Length (inches)

1.5

Height (inches)

0.19

Width (inches)

0.44

Weight (lbs)

0.000625

Details

Series

SMC

Max Temp (°F)

180

Max Pressure (Psi)

100

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/8" ID

Application

Water

Bag Quantity

50

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Free Floating

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved
