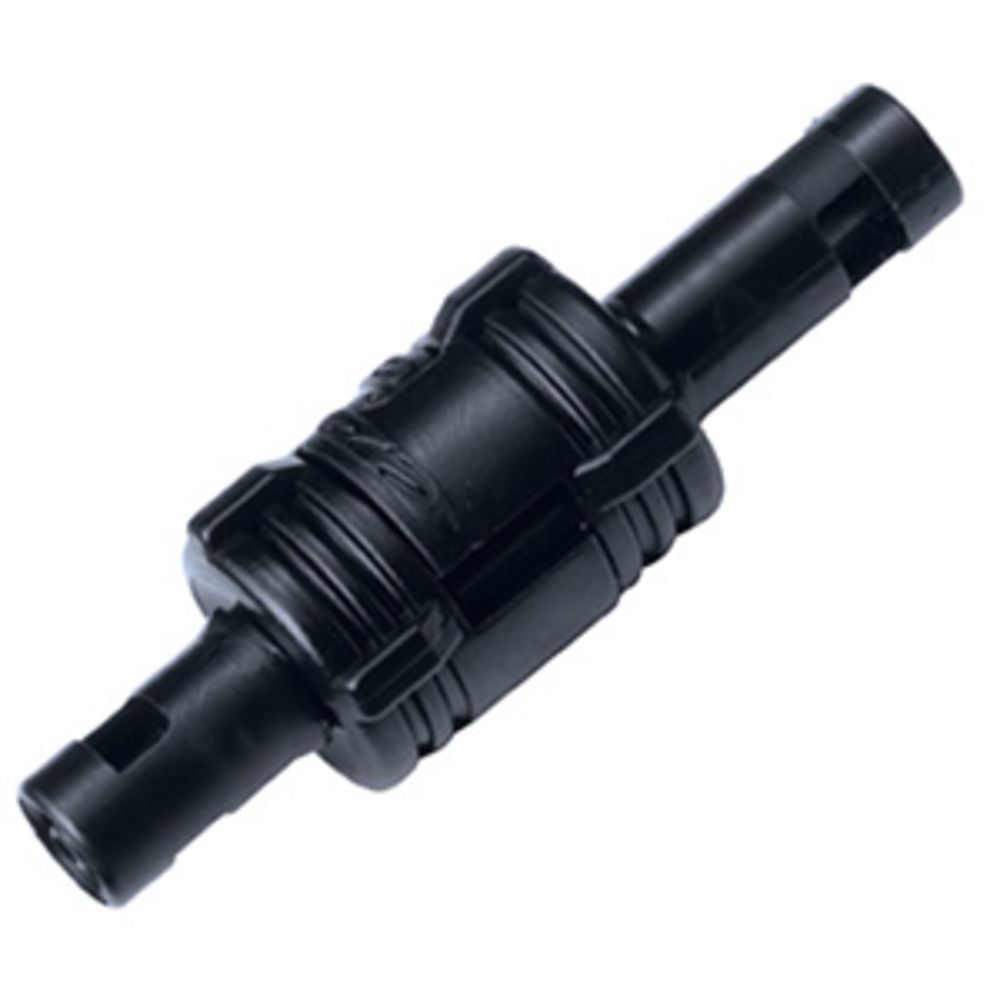

SMCD01MBLK Valved Inline Hose Barb Black Coupling Set 1/16 ID Barb Black

Colder SMC Series Couplings are designed with the latest Colder technology called Twist-to-Connect. The quarter-turn latch clicks to ensure that your connection is secure and allows tubing to rotate freely. SMC Series Couplings are among the smallest couplings offered by Colder and are constructed from a variety of different materials such as acetal, polypropylene, and ABS plastic.

Specifications:

Material: Acetal
Color: Black
Pressure Range: Vacuum to 100 psi, 6.9 bar
Mounting Option: Free Floating
Valve Option: Valved
Temperature Range: -40º F to 180º F
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 50 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Set

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Set

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	100
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Seal Material	Buna-N
Series	SMC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black
Type	Coupling Set
