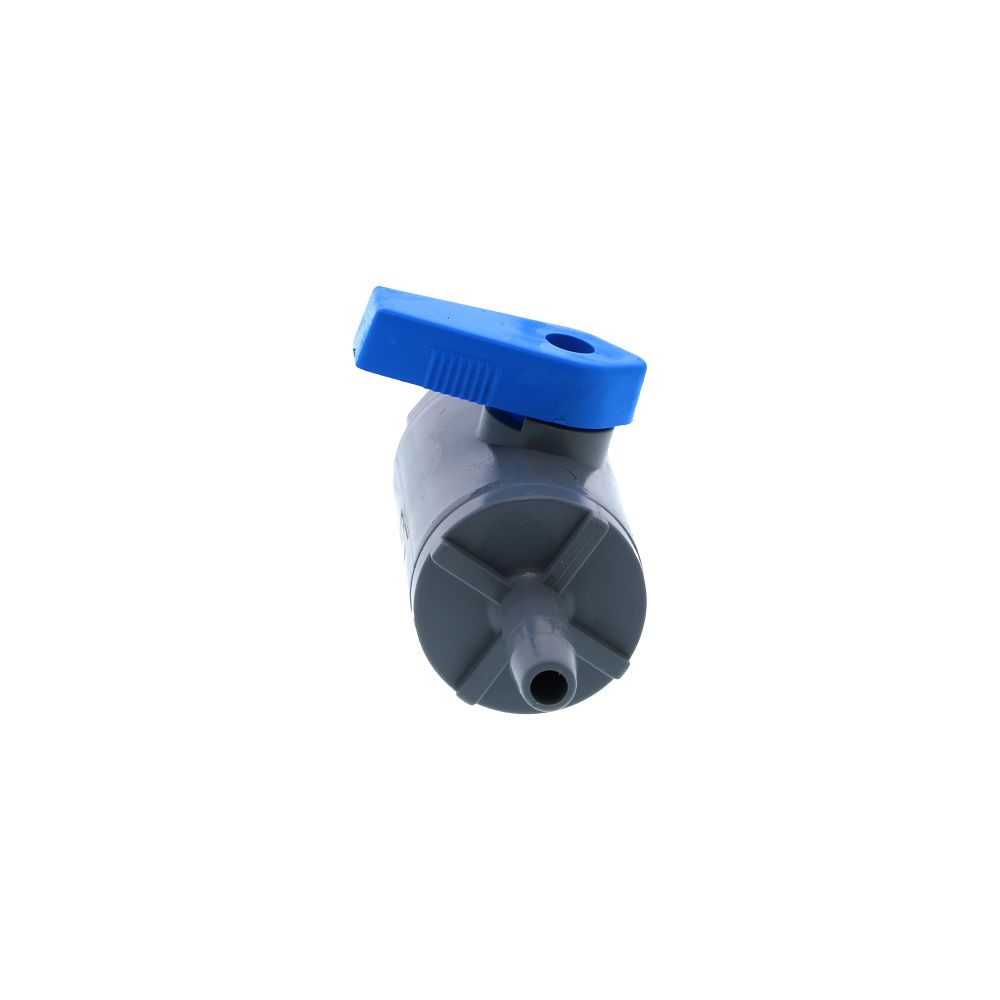

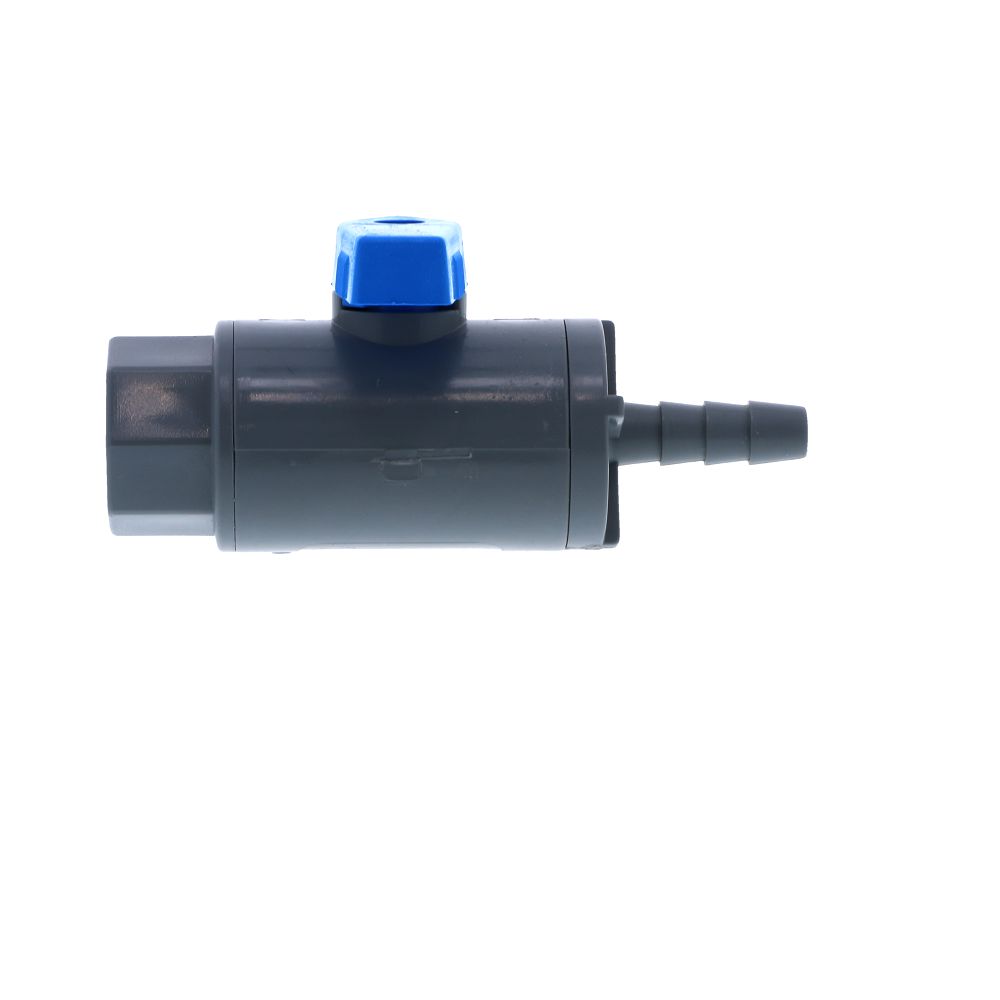

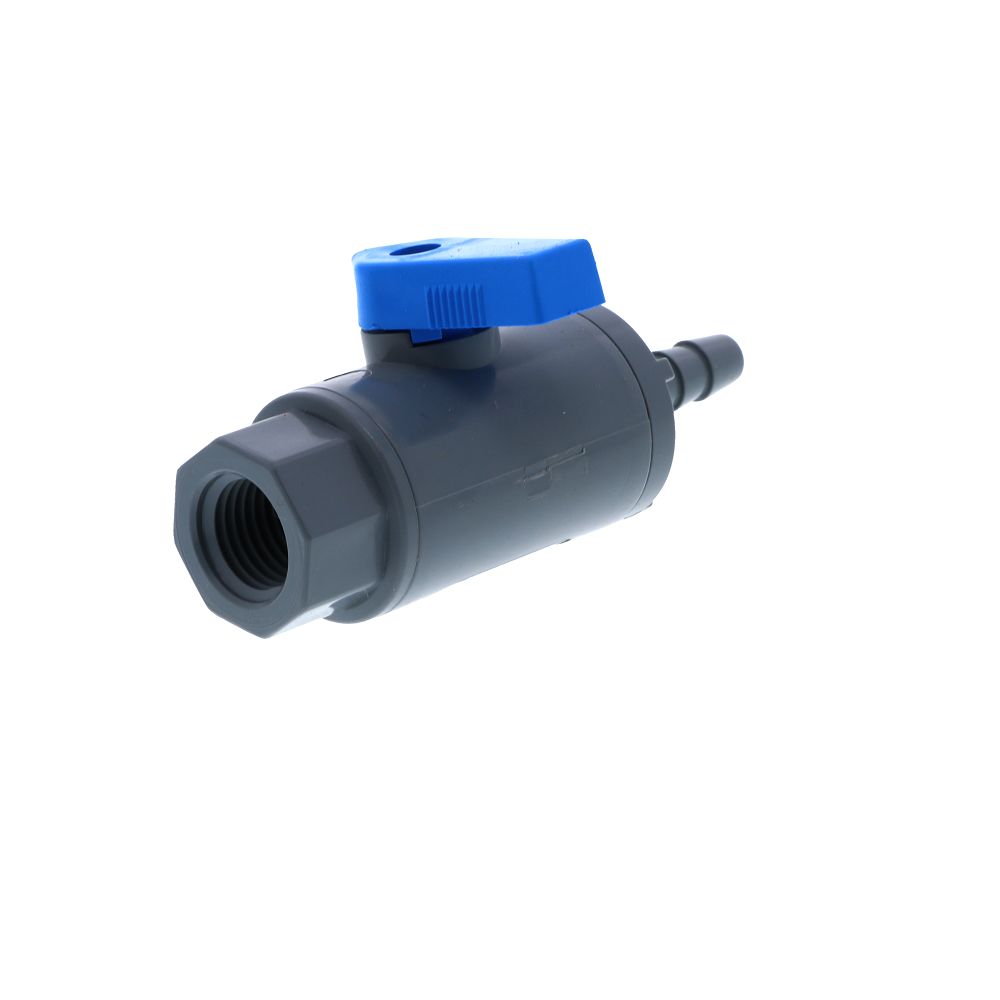

SMC Inline Ball Valve PVC FNPT/Barb - 1/4 ID Barb x 1/4 FNPT

Specification:

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Barb Size	1/4" ID
Body Material	PVC
Inlet Connection	1/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	140
O-Rings	Buna-N
Outlet Connection	1/4" FPT
Seal Material	Buna-N
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	3 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Weight (lbs)	0.125

Product Details
Barb Size	1/4" ID
Body Material	PVC
Inlet Connection	1/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	140
O-Rings	Buna-N
Outlet Connection	1/4" FPT
Seal Material	Buna-N
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	1.25

Product Details
Barb Size	1/4" ID
Body Material	PVC
Inlet Connection	1/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	140
O-Rings	Buna-N
Outlet Connection	1/4" FPT
Seal Material	Buna-N
Size	1/4"
Color / Finish	Gray
Connection Type	Female (FPT)
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	2.5
