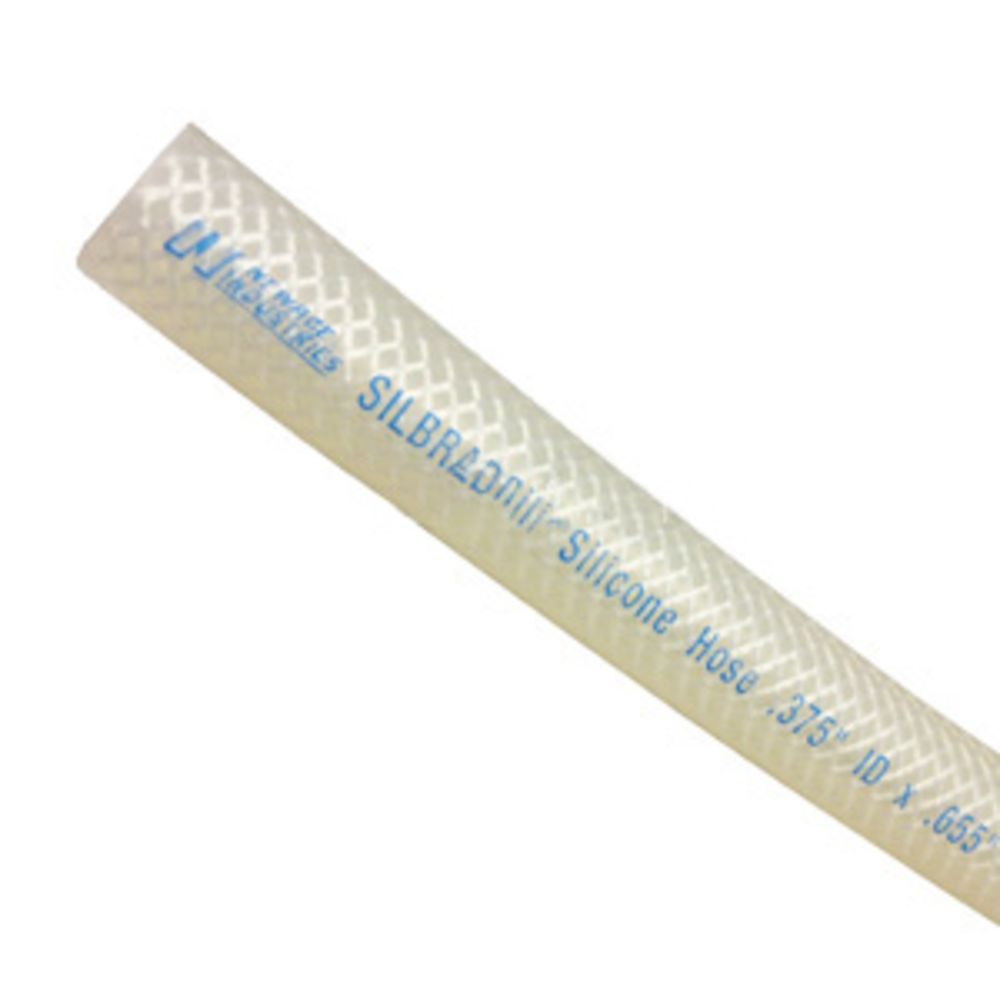

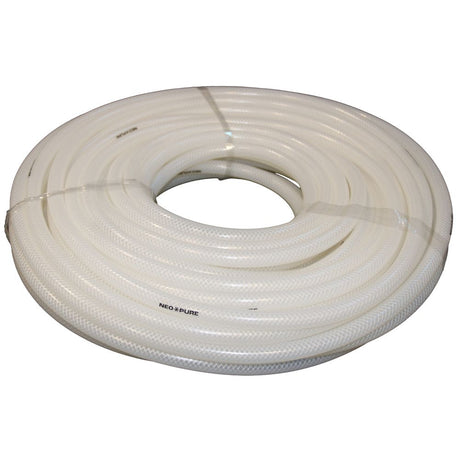

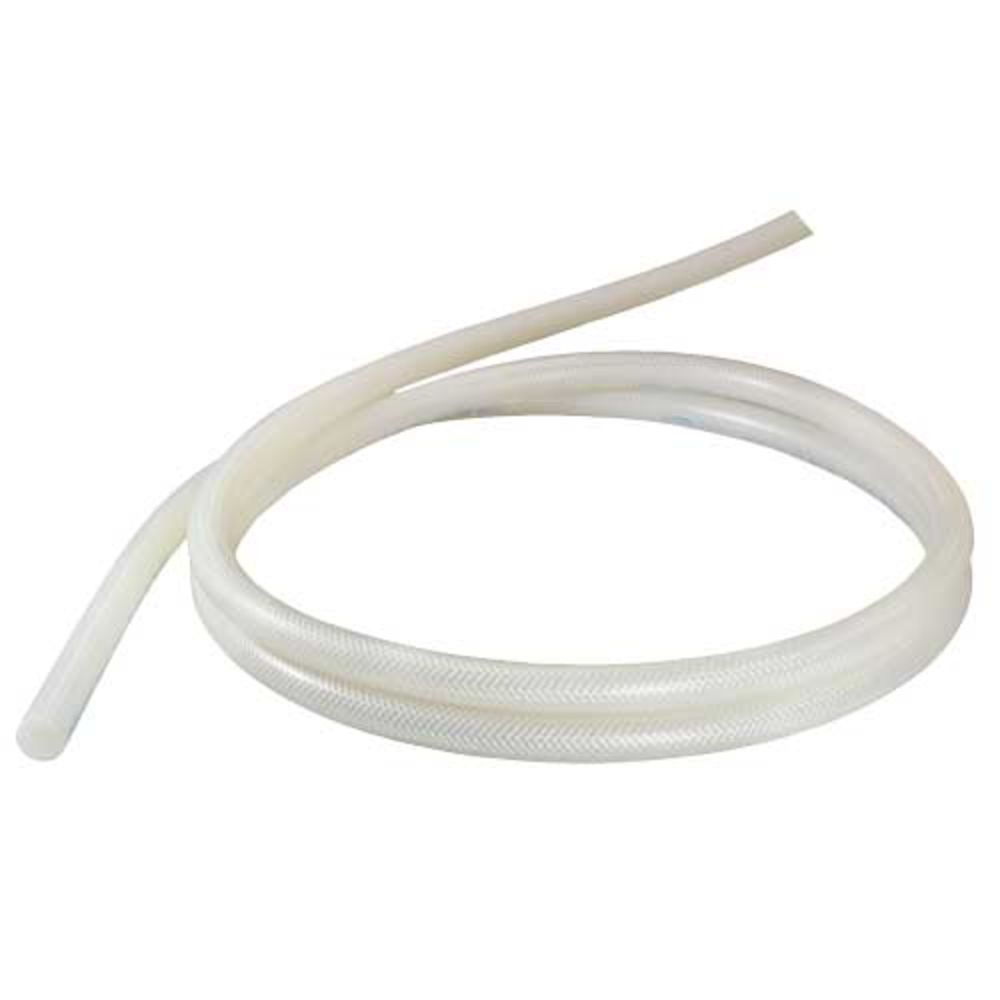

Silbrade Braid Reinforced Silicone Tubing 3/8 ID x .655 OD x 1'

Part Number: 290-060655

Alt. Part Number: 2900380

In Stock

out of stock

In Stock

$8.91

Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow.    Specifications:
  • Tubing ID: 3/8"
  • Tubing OD: 0.655"
  • Tubing Material: Peroxide-Cured Silicone with mesh polyester braid
  • Temperature Range: -80° - 350° F
  • Working Pressure: 166 psi @ 70° F
  • Made from FDA-sanctioned ingredients
  • Odorless, tasteless and inert
  • Resists UV, ozone, gases and moisture
  • NSF 51 certified for food equipment materials
  • Coil Length: 100'*
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.    Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.    Applications:
  • Adhesive LInes
  • Beverage Service
  • Bottle Filling
  • Chemical Feeds
  • Deionized Water Treatment
  • Fermenter Lines
  • Hot Fill Lines
  • Food Handling
  • Laboratory
  • Resin Feeds
  • Stirring Vessels
  • Viscous Material Handling


Weight & Dimensions

Approx Height (Inches)

0.655 Inches

Approx Width (Inches)

0.655 Inches

Cord Length

100 Feet

Details

Color / Finish

Natural

Material Of Construction

Braided silicone tubing

Max Operating Pressure

498 psi @ 70° F PSI

Max Operating Temperature

350 Degrees Fahrenheit

Operating Pressure Range

166 psi @ 70° F

Origin

USA

Outer Diameter

0.655"

Thickness

0.140 Inches

Inner Diameter

3/8"

Brittle Temperature

-99 Degrees Fahrenheit

Hardness, Shore A

70A(Liner)/60A(Cover)

Tensile Strength

1460 PSI

Warranty & Certifications

Certifications

NSF 51


Silbrade




Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow.    Specifications:
  • Tubing ID: 3/8"
  • Tubing OD: 0.655"
  • Tubing Material: Peroxide-Cured Silicone with mesh polyester braid
  • Temperature Range: -80° - 350° F
  • Working Pressure: 166 psi @ 70° F
  • Made from FDA-sanctioned ingredients
  • Odorless, tasteless and inert
  • Resists UV, ozone, gases and moisture
  • NSF 51 certified for food equipment materials
  • Coil Length: 100'*
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.    Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.    Applications:
  • Adhesive LInes
  • Beverage Service
  • Bottle Filling
  • Chemical Feeds
  • Deionized Water Treatment
  • Fermenter Lines
  • Hot Fill Lines
  • Food Handling
  • Laboratory
  • Resin Feeds
  • Stirring Vessels
  • Viscous Material Handling

Weight & Dimensions

Approx Height (Inches)

0.655 Inches

Approx Width (Inches)

0.655 Inches

Cord Length

100 Feet

Details

Color / Finish

Natural

Material Of Construction

Braided silicone tubing

Max Operating Pressure

498 psi @ 70° F PSI

Max Operating Temperature

350 Degrees Fahrenheit

Operating Pressure Range

166 psi @ 70° F

Origin

USA

Outer Diameter

0.655"

Thickness

0.140 Inches

Inner Diameter

3/8"

Brittle Temperature

-99 Degrees Fahrenheit

Hardness, Shore A

70A(Liner)/60A(Cover)

Tensile Strength

1460 PSI

Warranty & Certifications

Certifications

NSF 51
