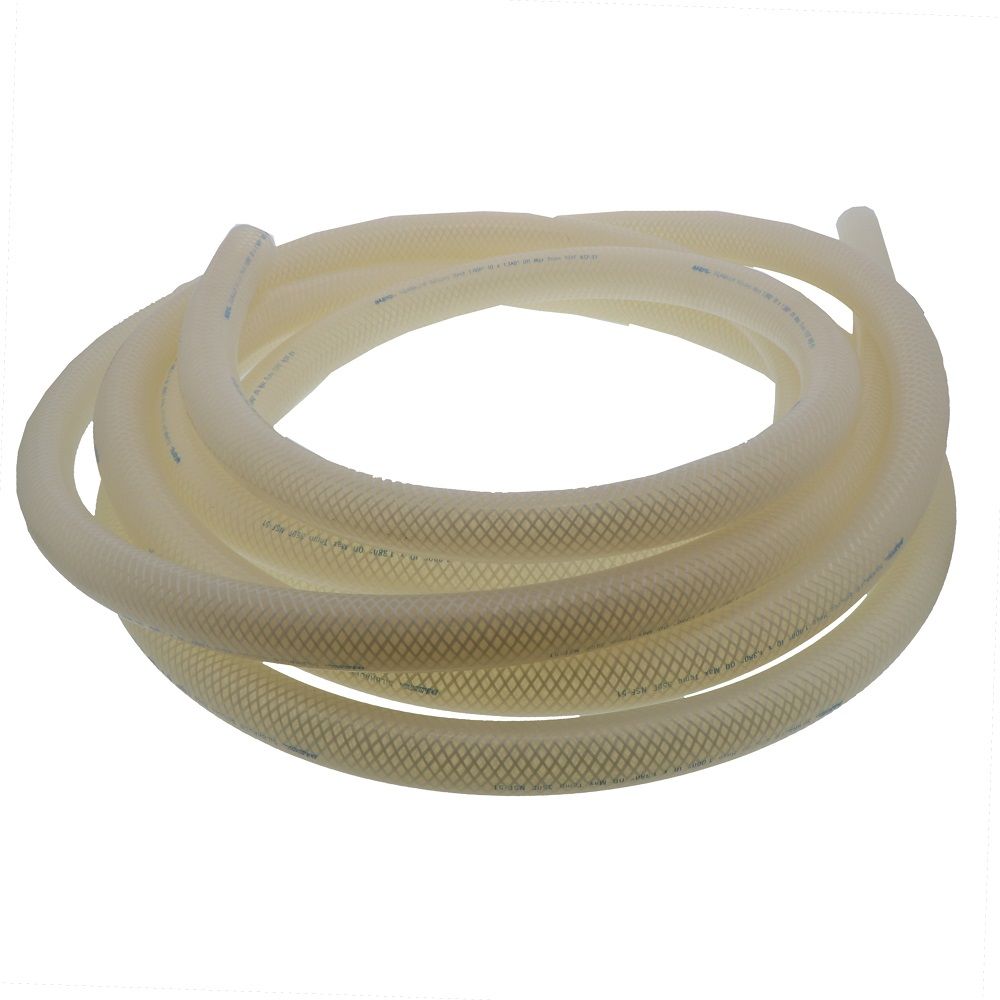

Silbrade Braid Reinforced Silicone Tubing 1 ID x 1.380 OD x 1'

Part Number: 290-161380

Alt. Part Number: 2900765

In Stock

out of stock

In Stock

$29.62


Silbrade® Silicone Tubing enables silicone tubing to handle increased pressure applications as well as offering outstanding resistance to temperature extremes and is made of FDA-sanctioned ingredients. Silbrade® is a flexible design and allows excellent bend radii and permits installation in restricted spaces without impeding flow.

Specifications:
  • Tubing ID: 1"
  • Tubing OD: 1.38"
  • Tubing Material: Peroxide-Cured Silicone with mesh polyester braid
  • Temperature Range: -80° - 350° F
  • Working Pressure: 75 psi @ 70° F
  • Made from FDA-sanctioned ingredients
  • Odorless, tasteless and inert
  • Resists UV, ozone, gases and moisture
  • NSF 51 certified for food equipment materials
  • Coil Length: 50'*
* Orders for lengths greater than 100' will receive full coil(s). Any remaining length will be shipped as a separate segment.
Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
Applications:
  • Adhesive Lines
  • Beverage Service
  • Bottle Filling
  • Chemical Feeds
  • Deionized Water Treatment
  • Fermenter Lines
  • Hot Fill Lines
  • Food Handling
  • Laboratory
  • Resin Feeds
  • Stirring Vessels
  • Viscous Material Handling


Weight & Dimensions

Approx Height (Inches)

1.38 Inches

Approx Width (Inches)

1.38 Inches

Cord Length

50 Feet

Details

Color / Finish

Natural

Material Of Construction

Braided silicone tubing

Max Operating Pressure

225 psi @ 70°F PSI

Max Operating Temperature

350 Degrees Fahrenheit

Operating Pressure Range

75 psi @ 70°F

Origin

USA

Outer Diameter

1.380"

Thickness

0.190 Inches

Inner Diameter

1"

Brittle Temperature

-99 Degrees Fahrenheit

Hardness, Shore A

70A(Liner)/60A(Cover)

Tensile Strength

1460 PSI

Warranty & Certifications

Certifications

NSF 51


Silbrade
