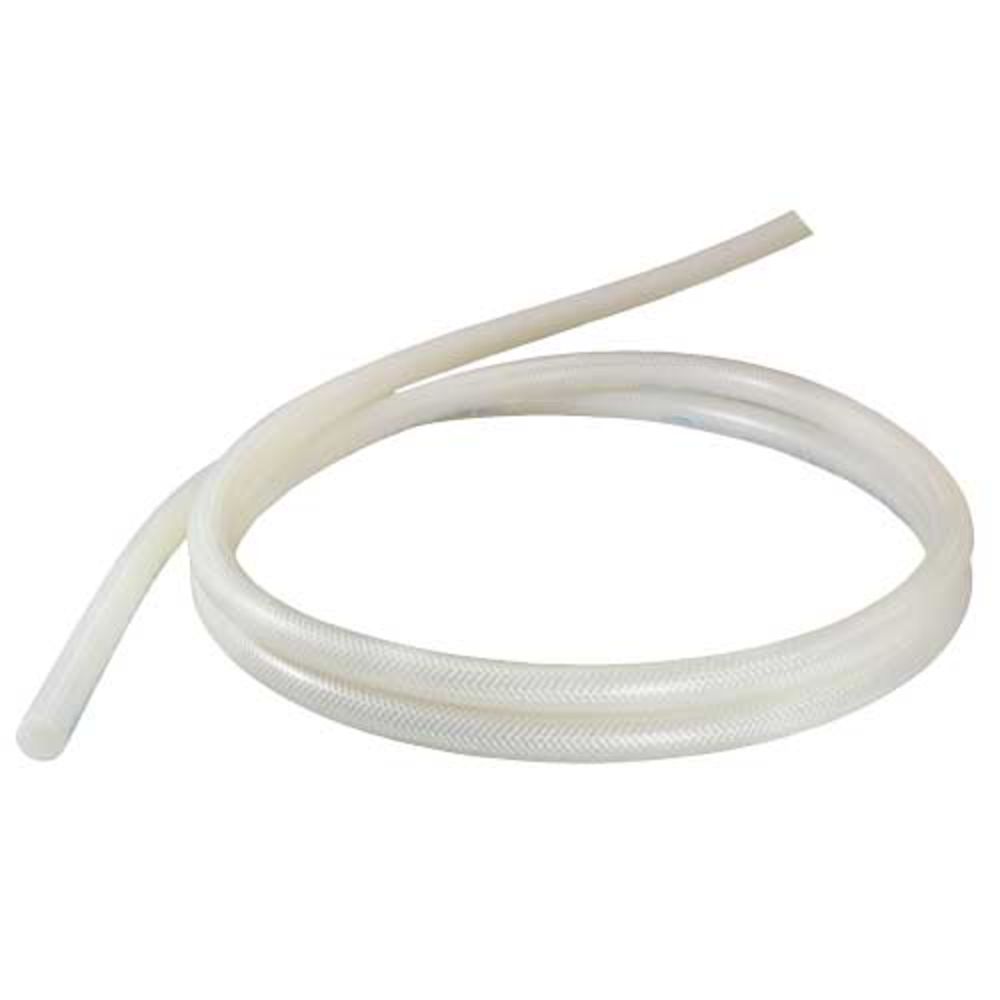

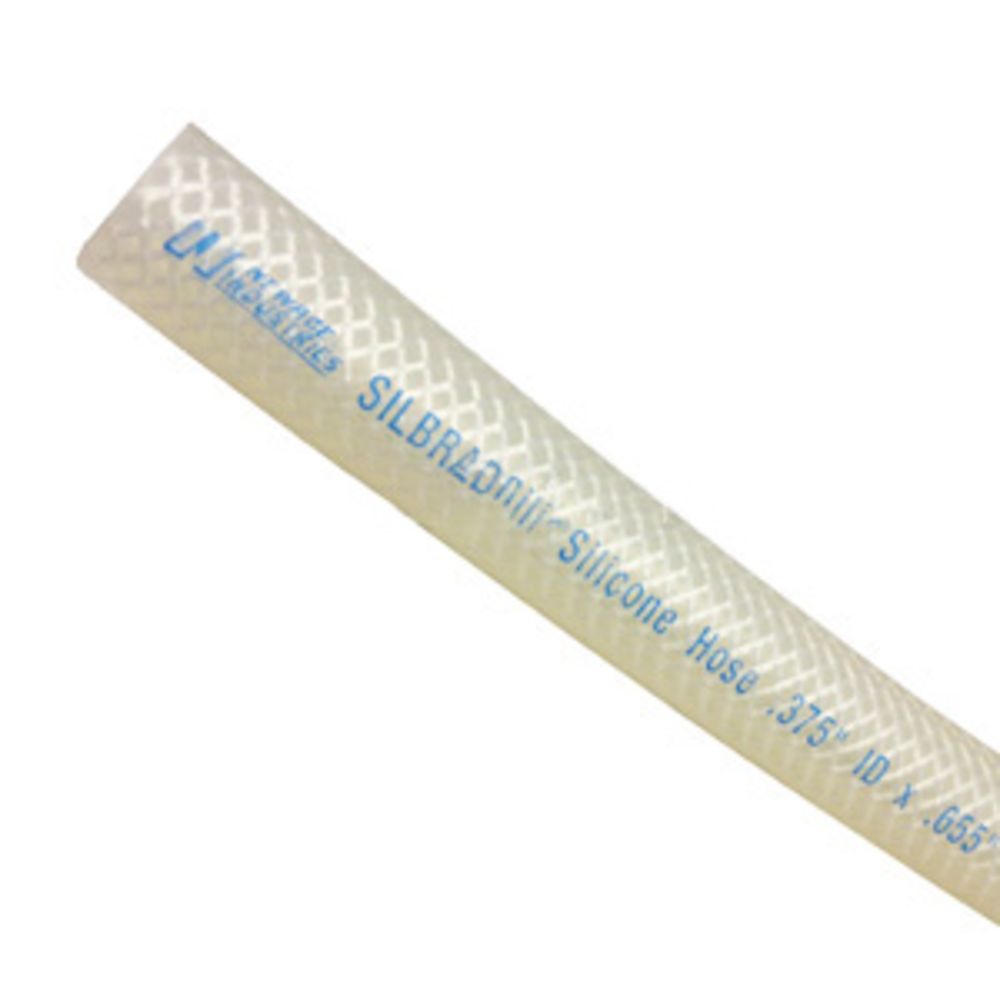

Silbrade Braid Reinforced Silicone Tubing 1/2 ID x .800 OD x 1'

Part Number: 290-080800

Alt. Part Number: 2900457

In Stock

out of stock

In Stock

$11.19


The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Weight & Dimensions

Approx Height (Inches)

0.8 Inches

Approx Width (Inches)

0.8 Inches

Cord Length

100 Feet

Details

Color / Finish

Natural

Material Of Construction

Braided silicone tubing

Max Operating Pressure

423 psi @ 70° F PSI

Max Operating Temperature

350 Degrees Fahrenheit

Operating Pressure Range

141 psi @ 70° F

Origin

USA

Outer Diameter

0.800"

Thickness

0.150 Inches

Inner Diameter

1/2"

Brittle Temperature

-99 Degrees Fahrenheit

Hardness, Shore A

70A(Liner)/60A(Cover)

Tensile Strength

1460 PSI

Warranty & Certifications

Certifications

NSF-51


Silbrade





The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Weight & Dimensions

Approx Height (Inches)

0.8 Inches

Approx Width (Inches)

0.8 Inches

Cord Length

100 Feet

Details

Color / Finish

Natural

Material Of Construction

Braided silicone tubing

Max Operating Pressure

423 psi @ 70° F PSI

Max Operating Temperature

350 Degrees Fahrenheit

Operating Pressure Range

141 psi @ 70° F

Origin

USA

Outer Diameter

0.800"

Thickness

0.150 Inches

Inner Diameter

1/2"

Brittle Temperature

-99 Degrees Fahrenheit

Hardness, Shore A

70A(Liner)/60A(Cover)

Tensile Strength

1460 PSI

Warranty & Certifications

Certifications

NSF-51
