G.A. Murdock

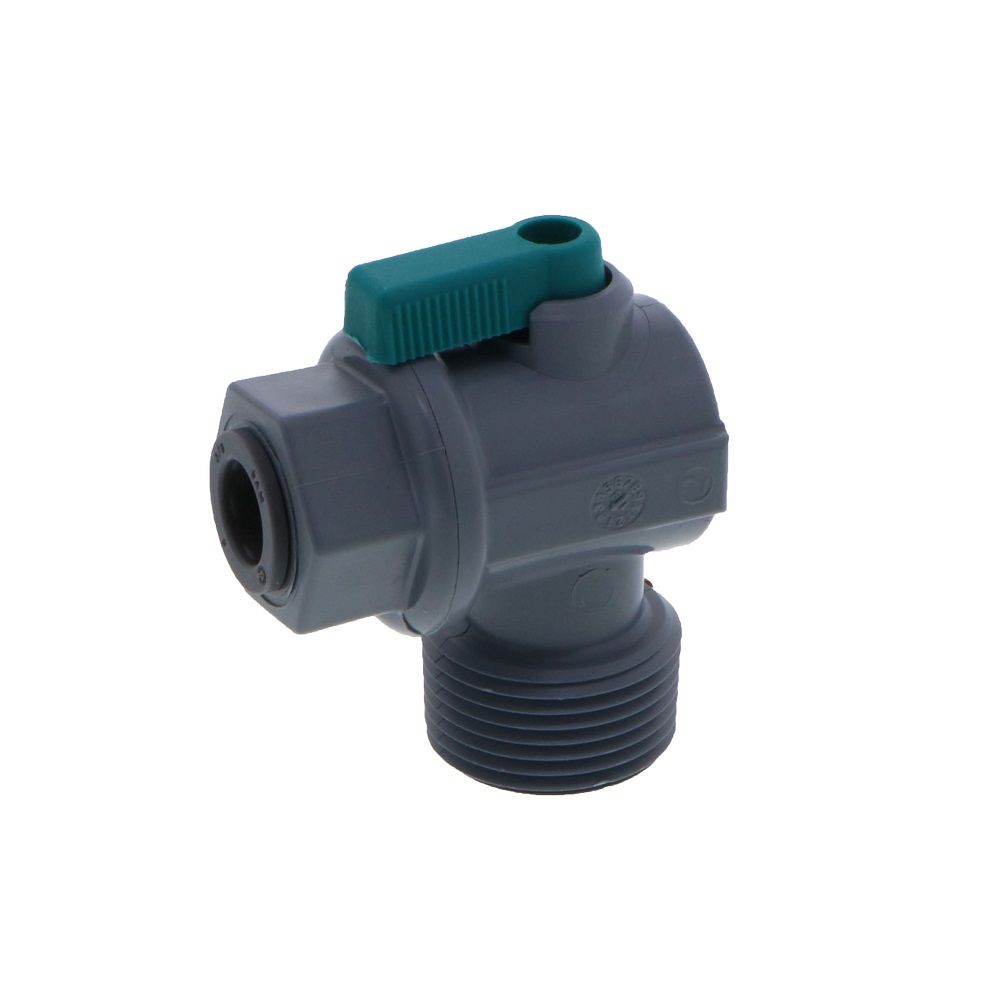

Shut-Off Valve-PVC Elbow Male NPT - 3/8 Push-in x 3/4 Male NPT

Part Number: I1410625

Alt. Part Number: AHFA0607W, I1410425

In Stock

out of stock

In Stock

$10.79

Recommended for use as a TANK VALVE such as the 14 gallon storage tank . A 3/4" Female Coupling is needed to connect to tank .

Features:
  • Exclusive 1/4 turn lever with safety collar
  • Dual O-ring fitting
Specifications:
  • Material: food grade PVC body with EPDM O-Rings and acetal copolymer handle
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Certfication: NSF 51
  • Connection: 3/8" OD push-in x 3/4" Male NPT




Details

Application

Water

Body Material

PVC

Features

Dual O-ring fitting

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

3/8" OD

Seal Material

EPDM

Size

3/4"

Color / Finish

Gray

Connection Type

Male (MPT)



Recommended for use as a TANK VALVE such as the 14 gallon storage tank . A 3/4" Female Coupling is needed to connect to tank .

Features:
  • Exclusive 1/4 turn lever with safety collar
  • Dual O-ring fitting
Specifications:
  • Material: food grade PVC body with EPDM O-Rings and acetal copolymer handle
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Certfication: NSF 51
  • Connection: 3/8" OD push-in x 3/4" Male NPT



Details

Application

Water

Body Material

PVC

Features

Dual O-ring fitting

Inlet/Outlet Connection

3/4" MPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

3/8" OD

Seal Material

EPDM

Size

3/4"

Color / Finish

Gray

Connection Type

Male (MPT)
