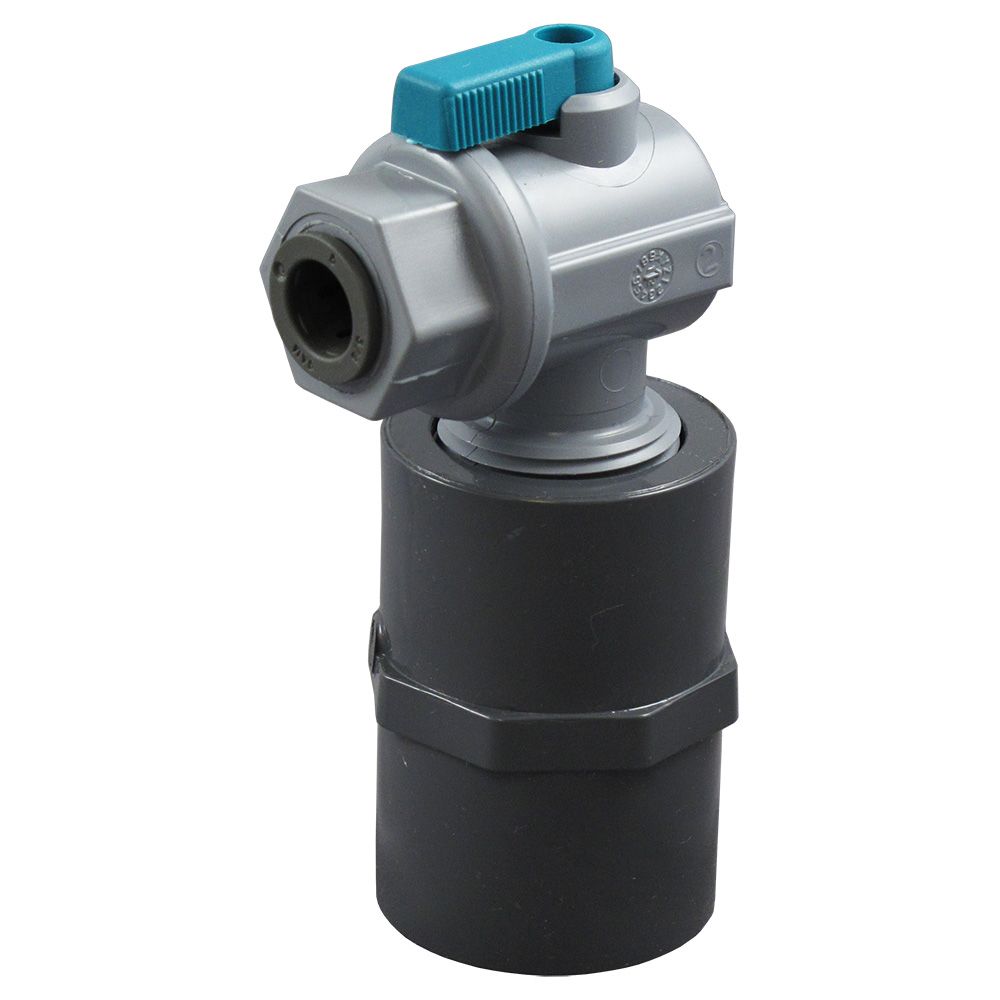

Shut-Off Valve Kit - 3/4 Female NPTF x 1/2 Push-in

Home / Fittings & Valves / Valves / Shut-Off Valve Kit - 3/4 Female NPTF x 1/2 Push-in

TANK BALL VALVE KIT is recommended for the 14 gallon storage tank . A 3/4" Female Coupling is provided to connect 3/4" male NPT end of tank valve to 3/4" male NPT tank inlet.

Features:

Exclusive 1/4 turn lever with safety collar
Dual EPDM O-ring fitting

Specifications:

Material: food grade PVC body with EPDM O-Rings and acetal copolymer handle
Operating Pressure: 150 psi max at 70°F
Temperature range: 33 to 140°F (1 to 60°C)
Certfication: NSF 51
Connection: 1/2" OD push-in x 3/4" Female NPTF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140
Min Temp (°F)	33
Series	Kit
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.55
