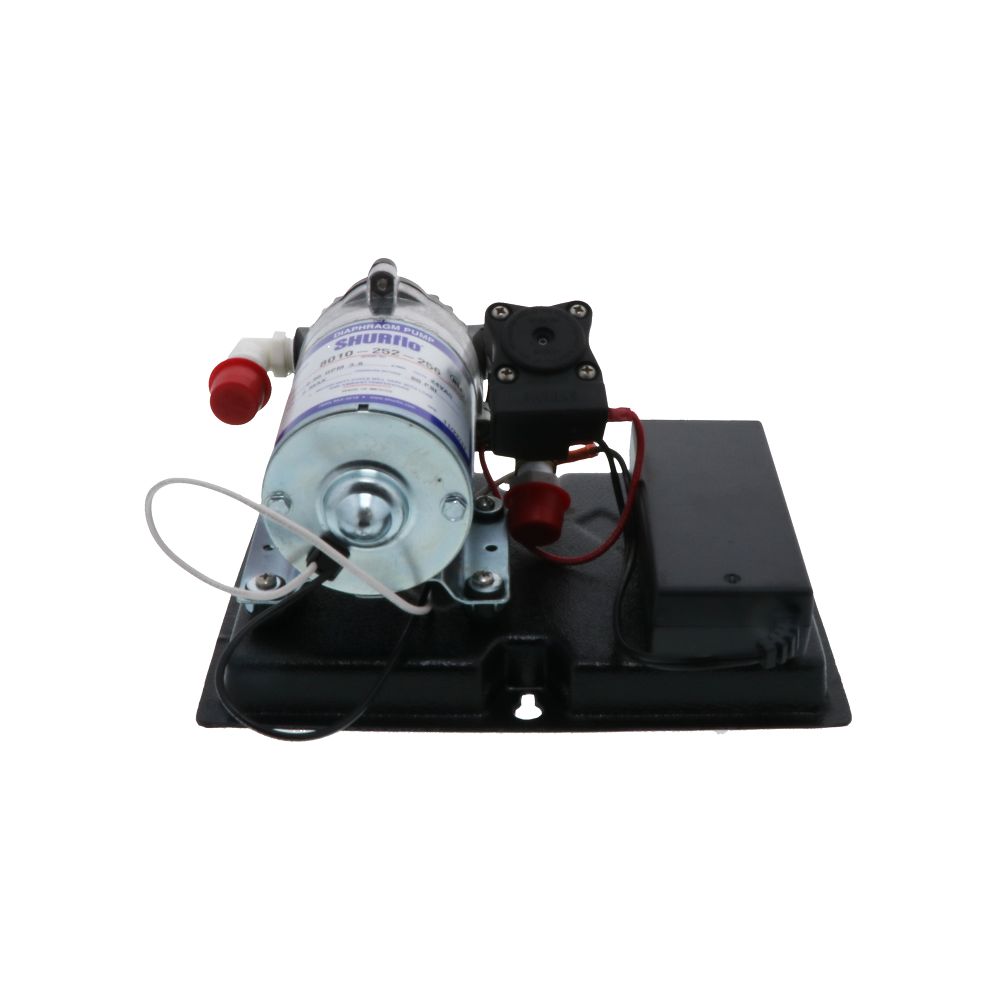

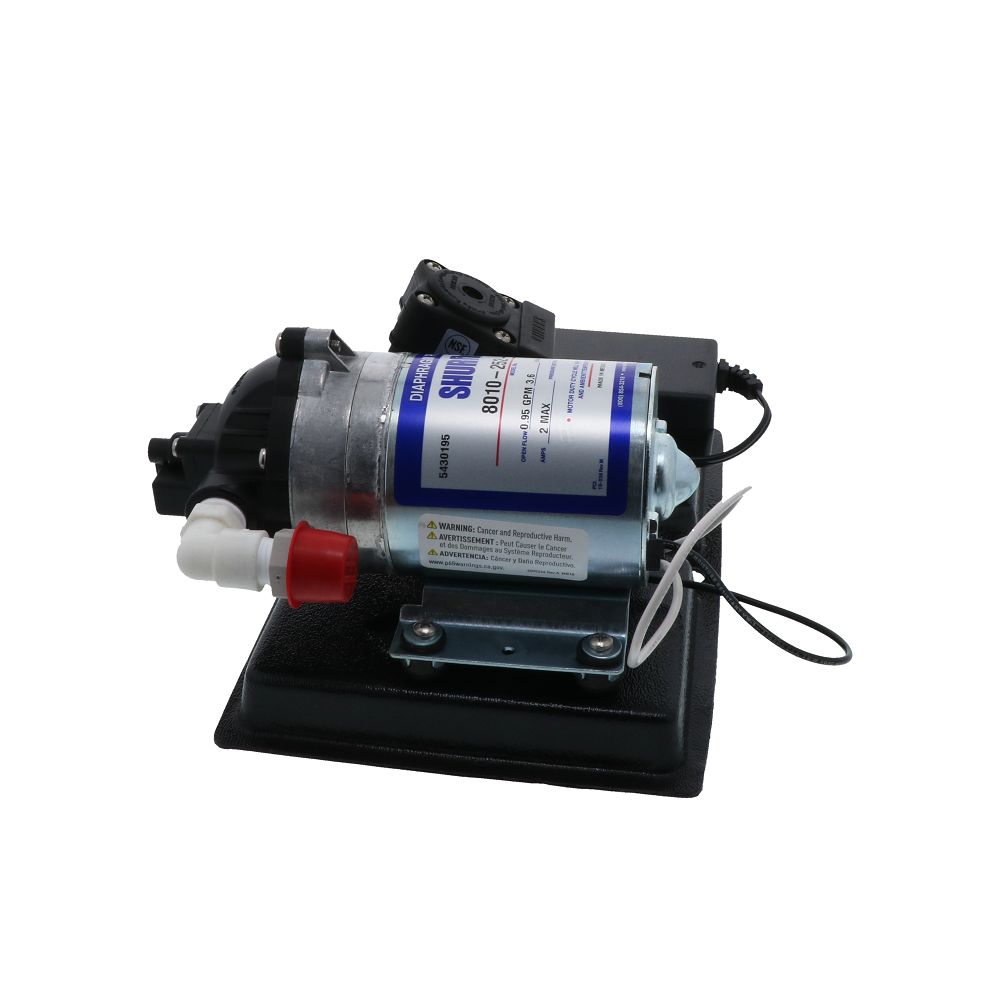

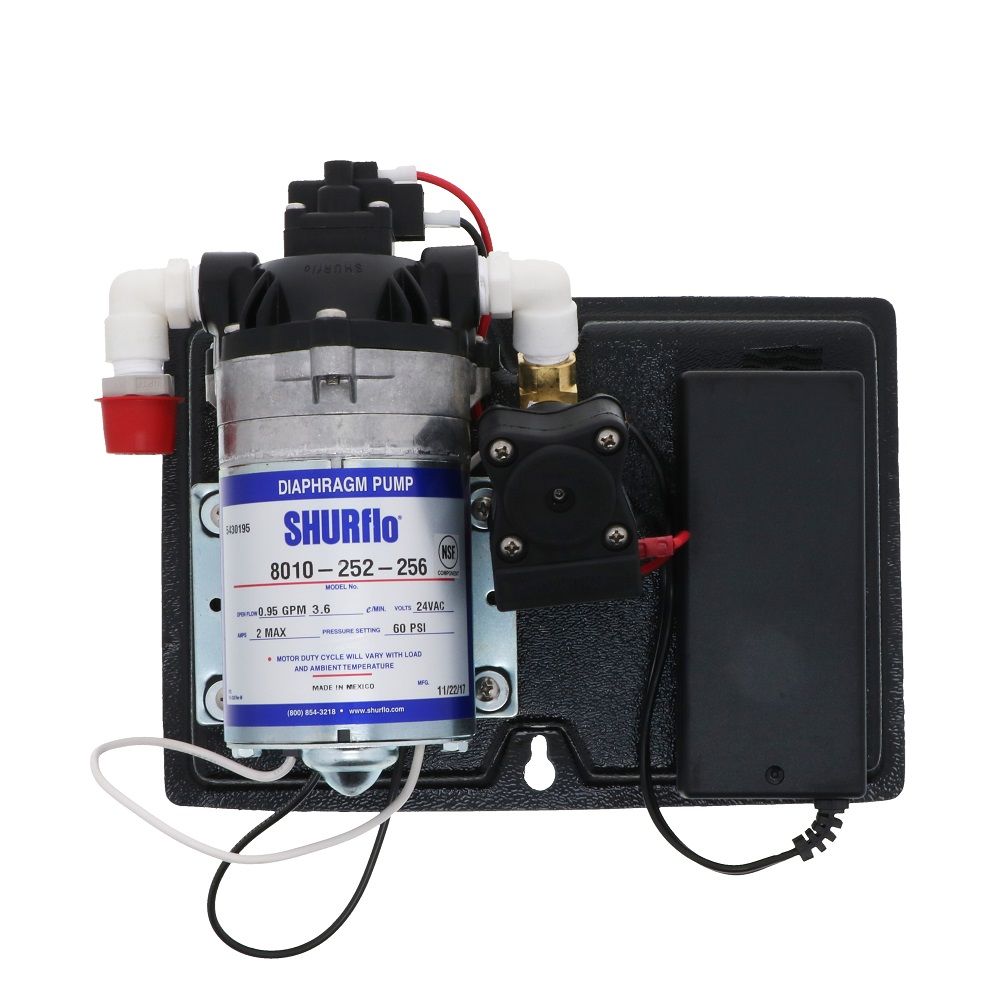

The SHURflo Low Voltage Water Delivery System uses a low voltage 24 Volt pump with a UL listed transfomer. The 82-100-00 system is ready to use. You just plumb it, plug it in and you are ready to pump. This system is ideal for boosting RO water to faucets and dispensers.
Features:
Features:
- Flow Rate: 0.90 gpm
- 115VAC/24VDC UL-listed transformer
- 60 psi shut-off
- Demand Switch
- Low pressure switch shuts pump off if inlet pressure is below 3 psi and turns on when it is above 8 psi
- Inlet/Outlet fittings: 3/8" quick connect
- Self priming up to 7 feet
- NSF Listed
Weight & Dimensions
Weight (lbs) | 8.1 |
Details
Series | 8000 |
Push-In Size | 3/8" OD |
Flow Rate | 0.9 GPM |
Liquid Temperature | 34-170 °F |
Voltage | 100-240VAC |
Power Source | 120 VAC/60 Hz Transformer |
Suction Lift | Self prime up to 7 ft |
Psi Bypass | 60 PSI |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF Listed |
The SHURflo Low Voltage Water Delivery System uses a low voltage 24 Volt pump with a UL listed transfomer. The 82-100-00 system is ready to use. You just plumb it, plug it in and you are ready to pump. This system is ideal for boosting RO water to faucets and dispensers.
Features:
- Flow Rate: 0.90 gpm
- 115VAC/24VDC UL-listed transformer
- 60 psi shut-off
- Demand Switch
- Low pressure switch shuts pump off if inlet pressure is below 3 psi and turns on when it is above 8 psi
- Inlet/Outlet fittings: 3/8" quick connect
- Self priming up to 7 feet
- NSF Listed
Weight & Dimensions
Weight (lbs) | 8.1 |
Details
Series | 8000 |
Push-In Size | 3/8" OD |
Flow Rate | 0.9 GPM |
Liquid Temperature | 34-170 °F |
Voltage | 100-240VAC |
Power Source | 120 VAC/60 Hz Transformer |
Suction Lift | Self prime up to 7 ft |
Psi Bypass | 60 PSI |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF Listed |
