SHURflo

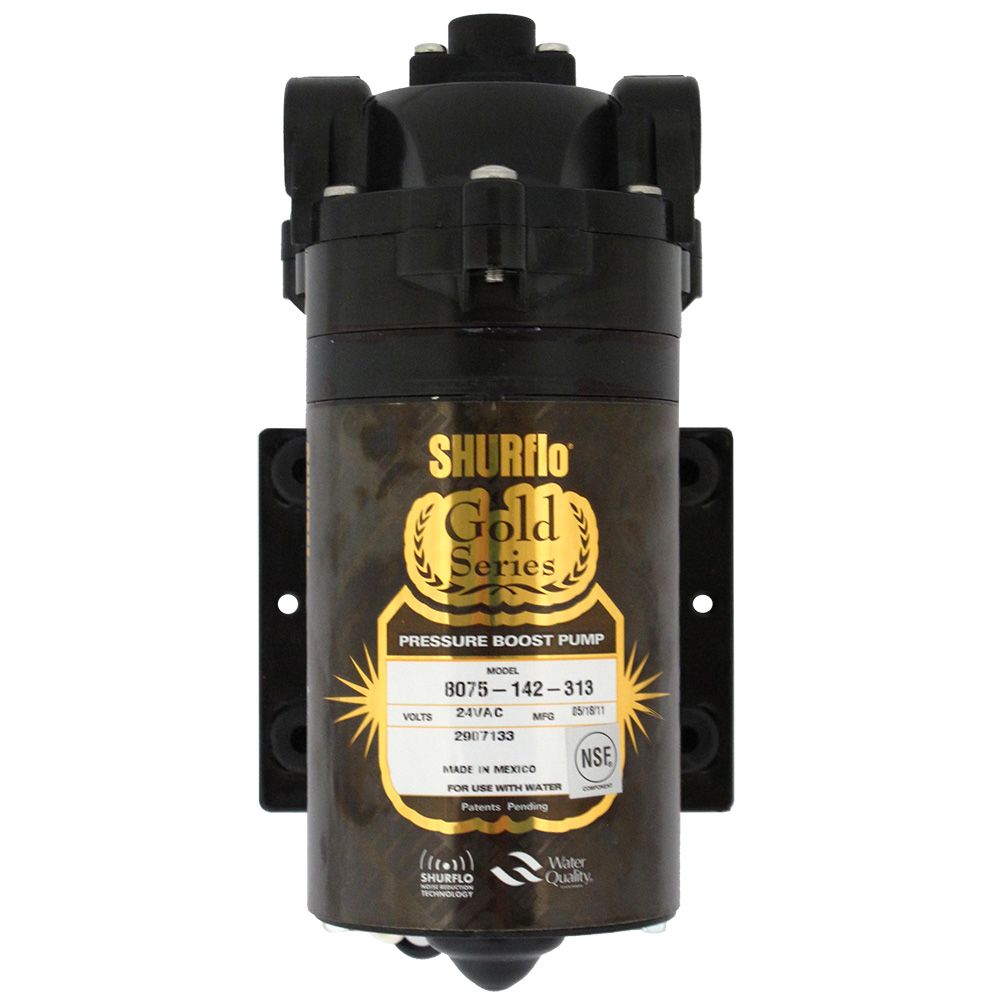

SHURflo 8075-142-313 Gold Series RO Booster Pump 100 GPD 90 PSI 24V

Part Number: 8075-142-313

In Stock

out of stock

In Stock

$157.99

The Gold Series Pumps are the most reliable pumps in the RO industry. The precision bypass maintains a constant, safe outlet pressure regardless of changes in incoming city water pressure. These pumps are the quietest performing pumps available. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit's storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.

Features:
  • Ultra Quiet operation
  • Longest life pump in the industry
  • One-piece solid diaphragm reduces leak points
  • Corrosion resistant motor
  • Built in bypass
  • Can operate on 24V AC or 24V DC power
  • NSF Listed
For the best experience, the following accessories are recommended for purchase with your RO Booster Pump:

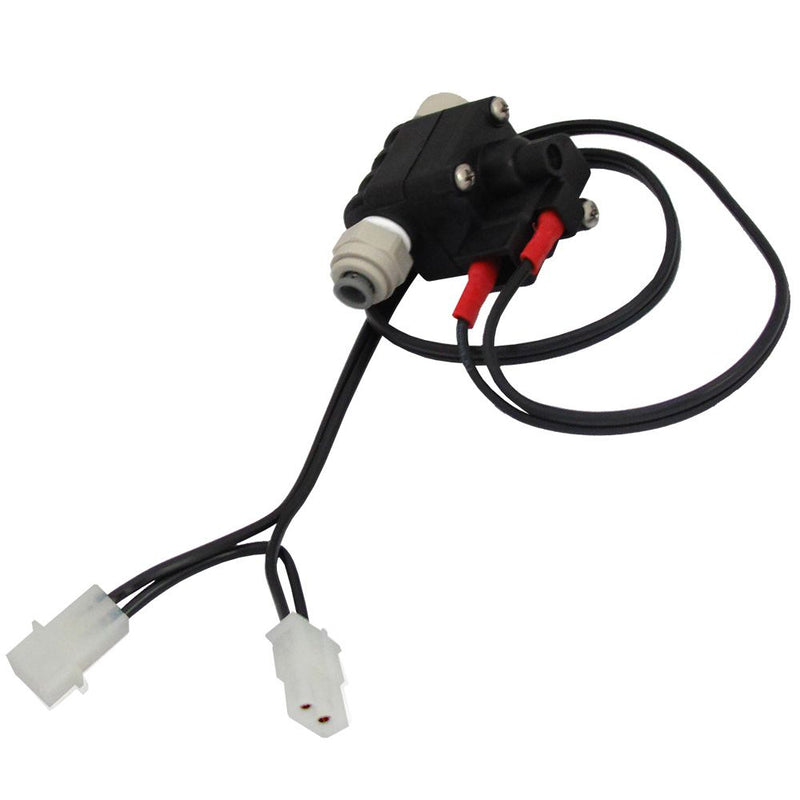

Power Supply/Transformer (required):The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.



Weight & Dimensions

Approx Height (Inches)

4.10"

Approx Length (Inches)

7.72"

Approx Width (Inches)

3.28"

Weight (lbs)

6.3

Details

Amps

0.24-0.93 Amps @ 0-90 PSI

Diaphragm Materials

Santoprene

Housing Material

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Liquid Temperature

34-180 °F

Max Pressure (Psi)

90

Power Source

No cord

Psi Bypass

95 PSI

Series

Gold

Size

3/8"

Wire Option

Bare Wire

Connection Type

Female (FPT)

Flow Rate

100 GPD

Type

Diaphragm Pump

Voltage

24VDC, 24VAC

Warranty & Certifications

Certifications

NSF Listed
