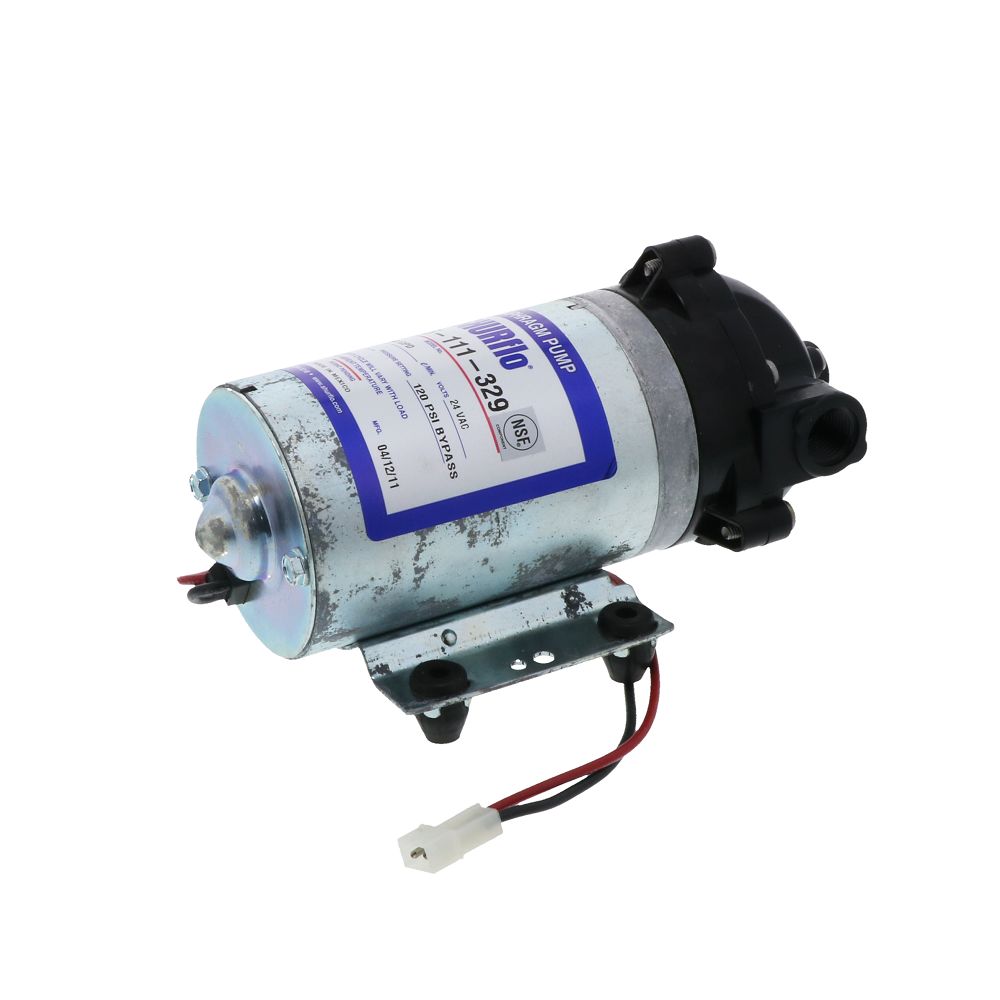

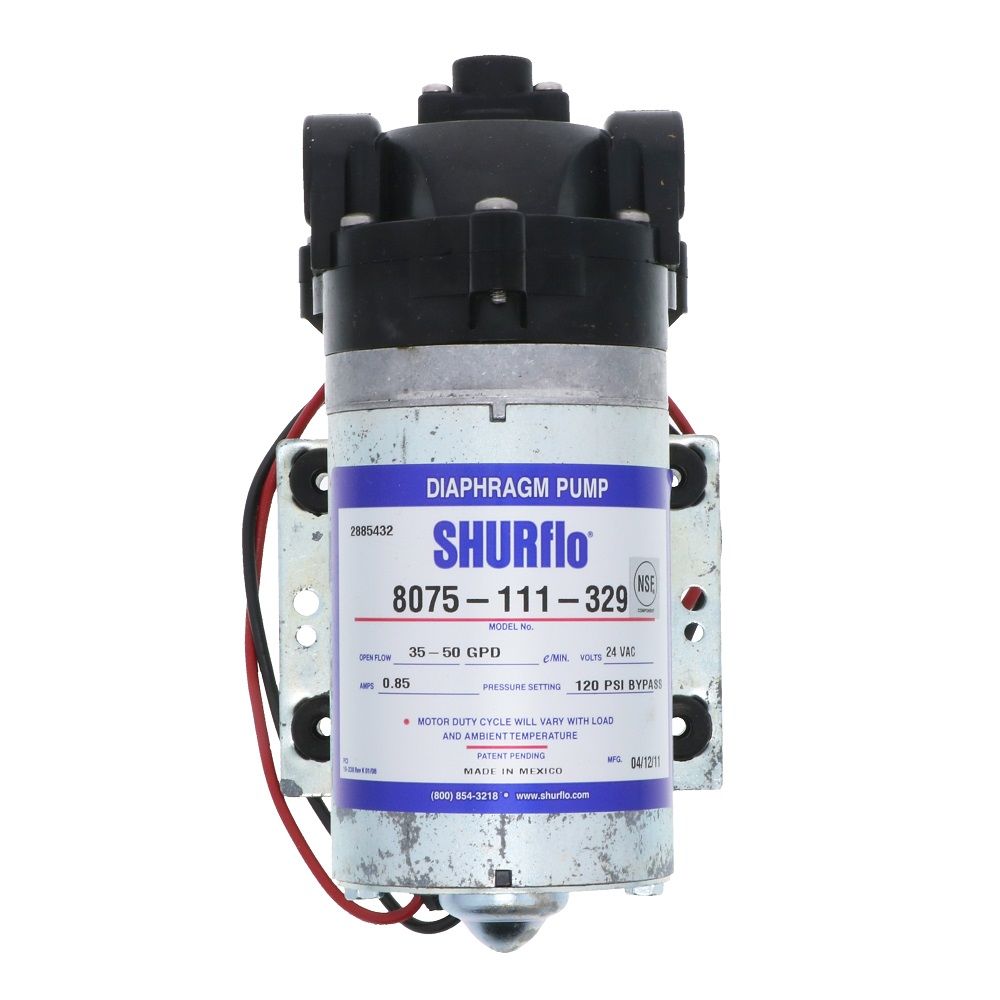

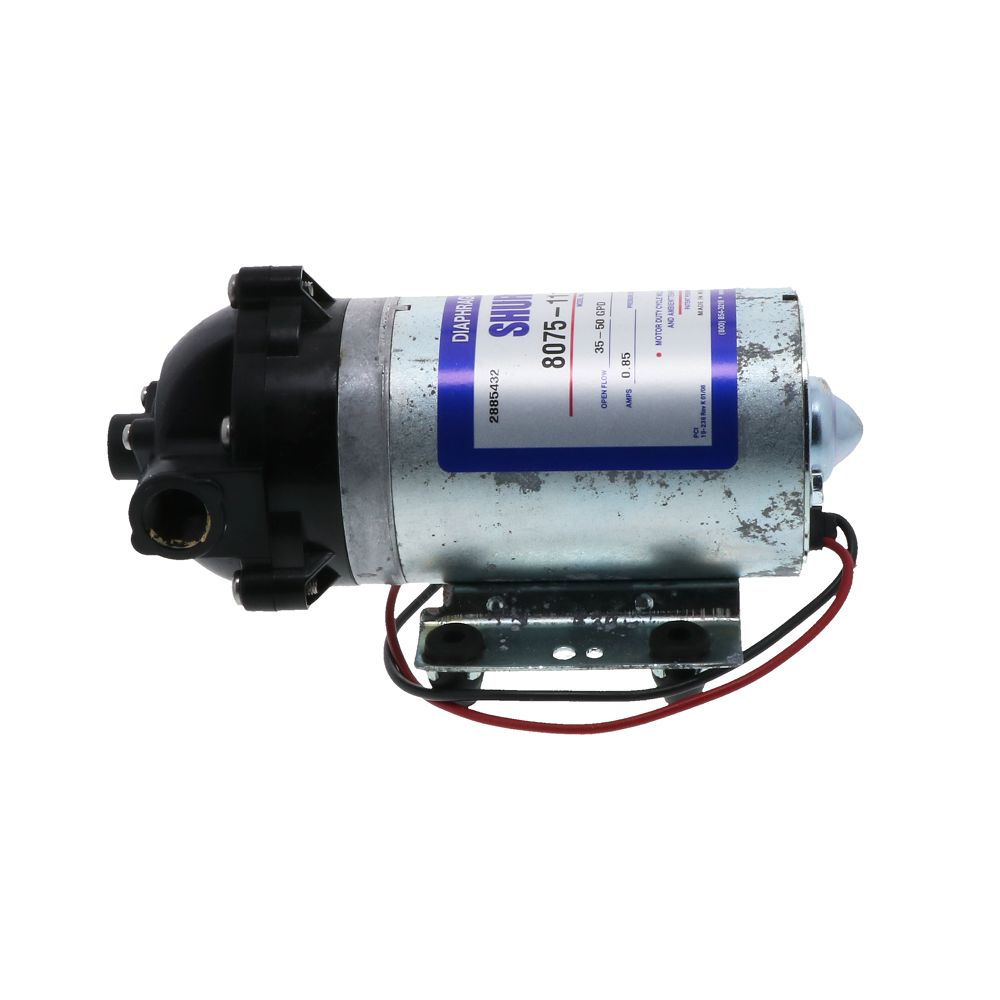

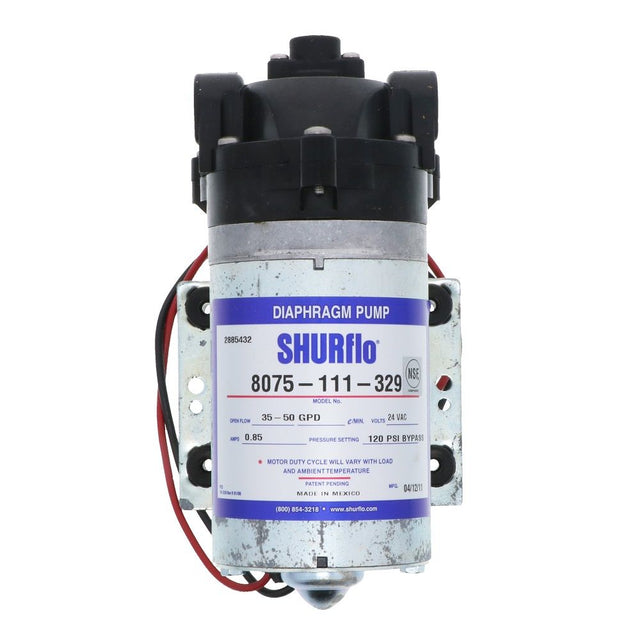

The Shurflo 8075-111-329 RO Booster Pump is the most reliable pump in the RO industry. The precision bypass maintains a constant, safe outlet pressure regardless of changes in incoming city water pressure. These pumps are the quietest performing pumps available. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit's storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.
Features:
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Features:
- Ultra Quiet operation
- Longest life pump in the industry
- One-piece solid diaphragm reduces leak points
- Corrosion resistant motor
- Built in bypass
- Can operate on 24V AC or 24V DC power
- NSF Listed
- Connections: 3/8" FPT
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Weight & Dimensions
Weight (lbs) | 5.3 |
Approx Height (Inches) | 4.10" |
Approx Length (Inches) | 7.72" |
Approx Width (Inches) | 3.28" |
Details
Series | 8000 |
Diaphragm Materials | Santoprene |
Flow Rate | 50 GPD |
Housing Material | Zinc Plated Steel |
Liquid Temperature | 34-180 °F |
Size | 3/8" |
Voltage | 24VDC, 24VAC |
Psi Bypass | 120 PSI |
Inlet/Outlet Connection | 3/8" FPT |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF Listed |
The Shurflo 8075-111-329 RO Booster Pump is the most reliable pump in the RO industry. The precision bypass maintains a constant, safe outlet pressure regardless of changes in incoming city water pressure. These pumps are the quietest performing pumps available. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit's storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.
Features:
- Ultra Quiet operation
- Longest life pump in the industry
- One-piece solid diaphragm reduces leak points
- Corrosion resistant motor
- Built in bypass
- Can operate on 24V AC or 24V DC power
- NSF Listed
- Connections: 3/8" FPT
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Weight & Dimensions
Weight (lbs) | 5.3 |
Approx Height (Inches) | 4.10" |
Approx Length (Inches) | 7.72" |
Approx Width (Inches) | 3.28" |
Details
Series | 8000 |
Diaphragm Materials | Santoprene |
Flow Rate | 50 GPD |
Housing Material | Zinc Plated Steel |
Liquid Temperature | 34-180 °F |
Size | 3/8" |
Voltage | 24VDC, 24VAC |
Psi Bypass | 120 PSI |
Inlet/Outlet Connection | 3/8" FPT |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF Listed |
