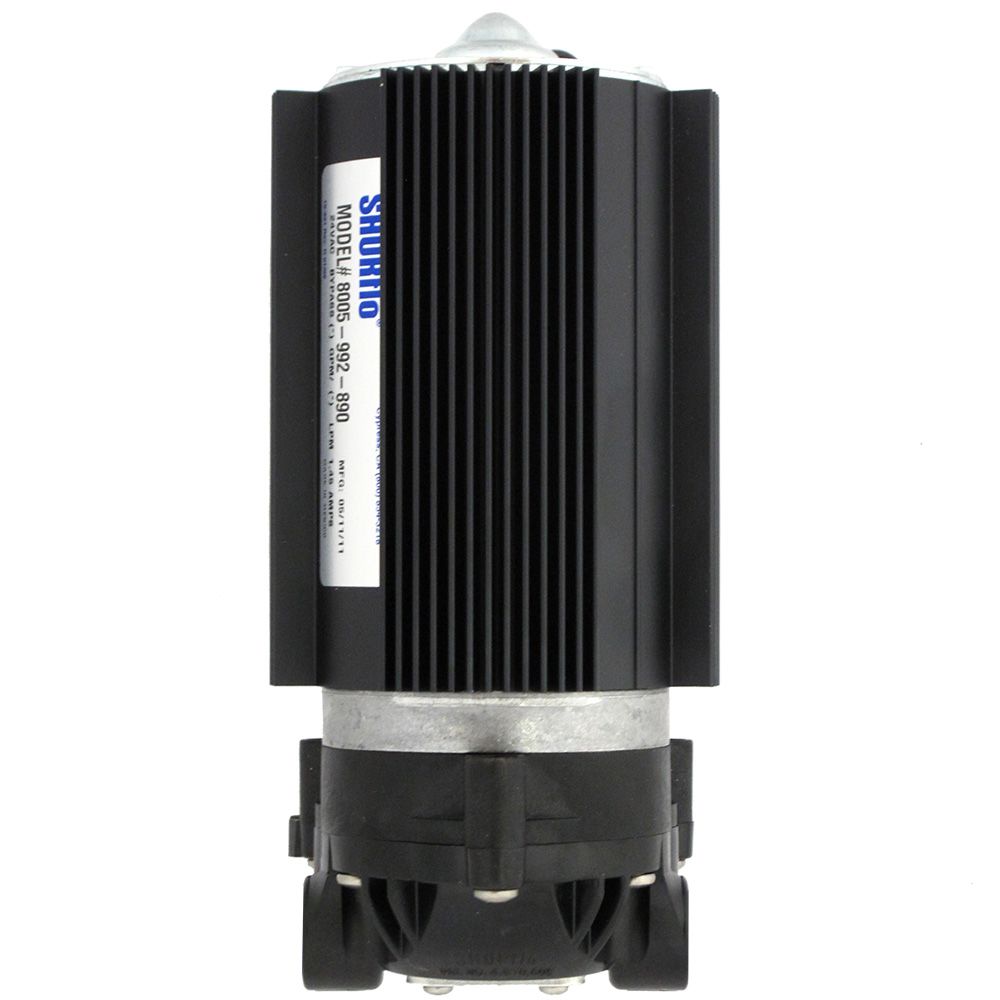

SHURflo 8000 Series RO Pumps are the most widely used pumps for RO. They are ideal for high pressure / low flow applications with low amp draw. They can be mounted in any position, are compact, and are designed for long trouble-free life. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit's storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.
Features:
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Features:
- For 150 gpd RO systems
- 125 psi internal bypass
- Can run dry without damage
- Self priming up 7 vertical feet
- 3/8" NPT female ports
- Santoprene diaphragm
- Built-in check valve
- NSF, UL and CSA listed
- Can operate on 24V AC or 24V DC power
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Weight & Dimensions
Weight (lbs) | 3.9 |
Approx Height (Inches) | 4.08" |
Approx Length (Inches) | 8.4" |
Approx Width (Inches) | 4" |
Details
Series | 8000 |
Max Pressure (Psi) | 125 |
Amps | 0.55 -1.68 Amps @ 10-120 PSI |
Diaphragm Materials | Santoprene |
Flow Rate | 150 GPD |
Liquid Temperature | 170 °F |
Size | 3/8" |
Voltage | 24VDC, 24VAC |
Inlet/Outlet Connection | 3/8" FPT |

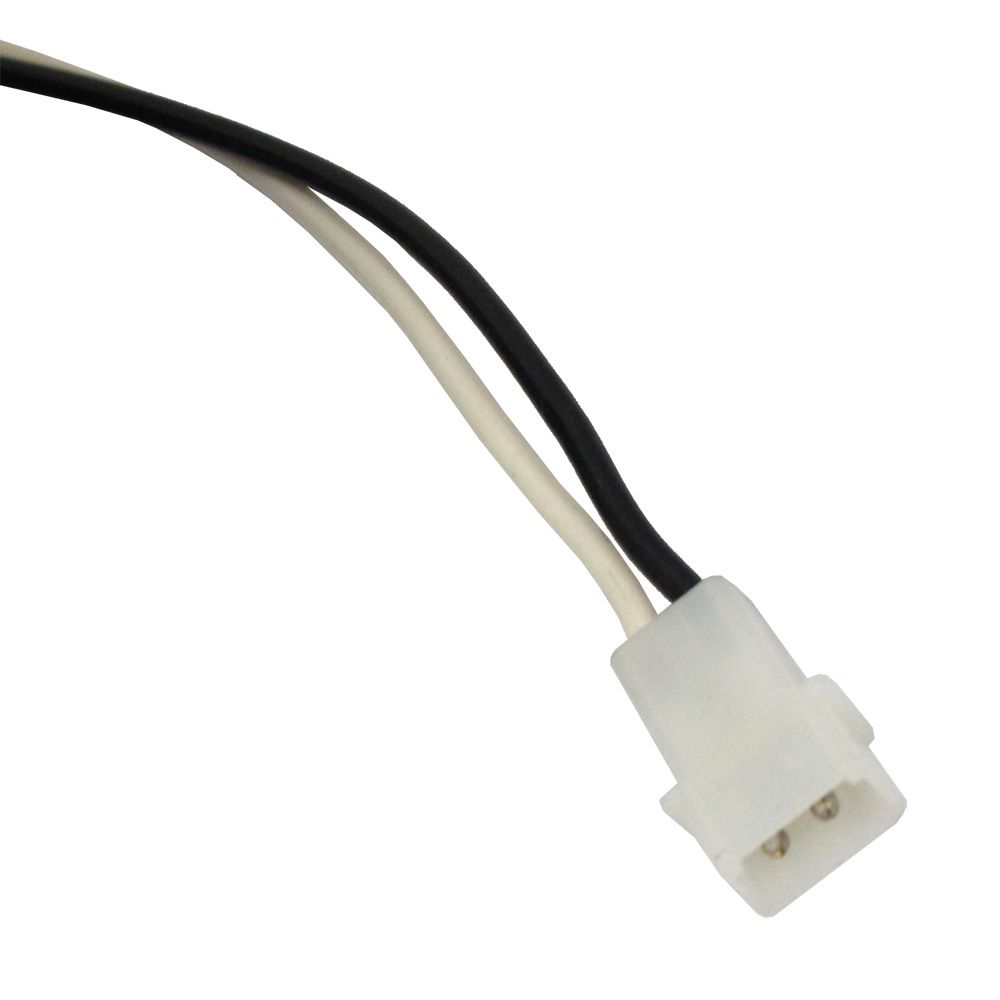

Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF; UL; CSA |
SHURflo 8000 Series RO Pumps are the most widely used pumps for RO. They are ideal for high pressure / low flow applications with low amp draw. They can be mounted in any position, are compact, and are designed for long trouble-free life. This booster pump is designed for operation with a Tank Pressure Switch, which monitors the water pressure in the RO unit's storage tank, and turns the pump on or off in response to the storage tank pressure. A Low Pressure Shut-Off Switch may also be installed, which will ensure the pump is shut off if the feed water is interrupted. Also, a Power Supply/Transformer is required for use with your booster pump.
Features:
- For 150 gpd RO systems
- 125 psi internal bypass
- Can run dry without damage
- Self priming up 7 vertical feet
- 3/8" NPT female ports
- Santoprene diaphragm
- Built-in check valve
- NSF, UL and CSA listed
- Can operate on 24V AC or 24V DC power
Power Supply/Transformer (required):
The SHURflo 60-044-00 Power Supply/Transformer plugs into a standard wall outlet and converts to the voltage (24v) required by the pump. Tank Pressure Switch:Turns the pump on or off in response to the storage tank pressure. The SHURflo Tank Pressure Switches have wire harnesses, and either 1/4" QC Fittings or 1/4" FPT. Low Pressure Shut-Off Switch:The SHURflo 94-080-01 Low Pressure Switch ensures the pump is shut off if the feed water is interrupted.
Weight & Dimensions
Weight (lbs) | 3.9 |
Approx Height (Inches) | 4.08" |
Approx Length (Inches) | 8.4" |
Approx Width (Inches) | 4" |
Details
Series | 8000 |
Max Pressure (Psi) | 125 |
Amps | 0.55 -1.68 Amps @ 10-120 PSI |
Diaphragm Materials | Santoprene |
Flow Rate | 150 GPD |
Liquid Temperature | 170 °F |
Size | 3/8" |
Voltage | 24VDC, 24VAC |
Inlet/Outlet Connection | 3/8" FPT |
Wire Option | Bare Wire |
Warranty & Certifications
Certifications | NSF; UL; CSA |
