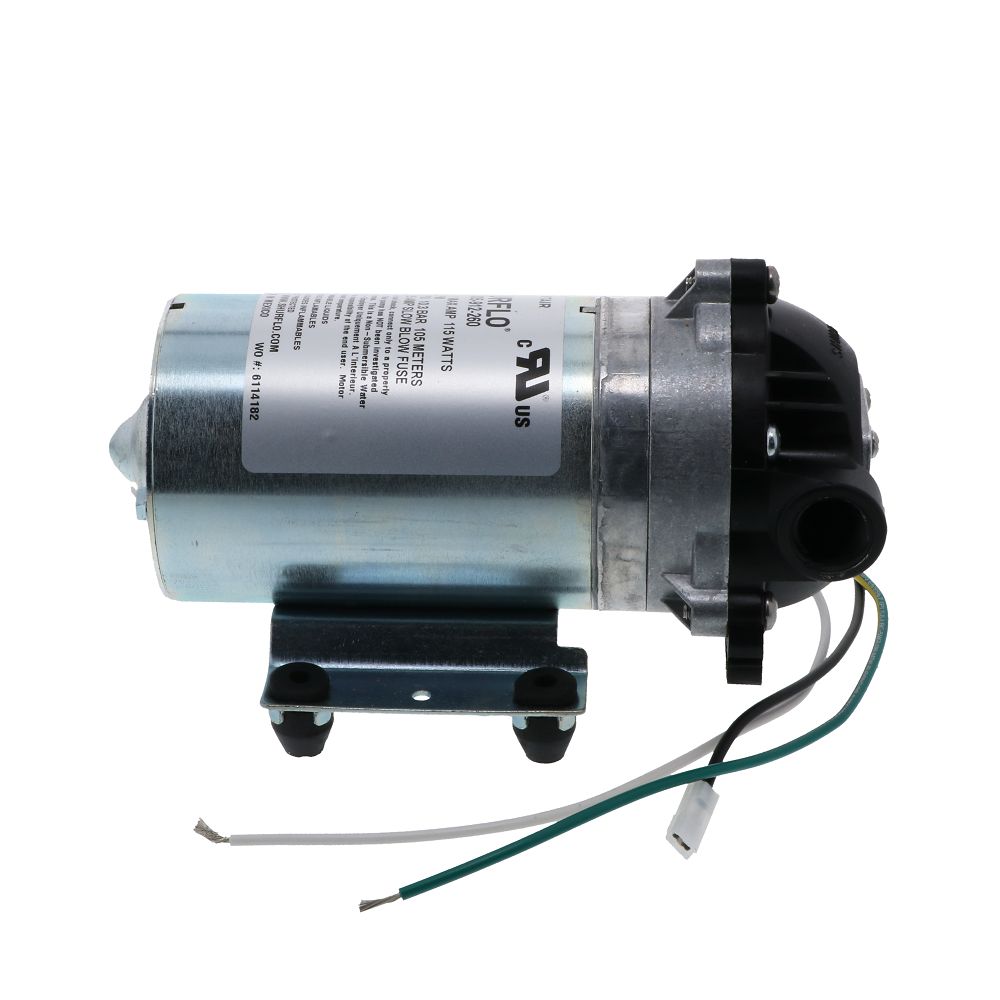

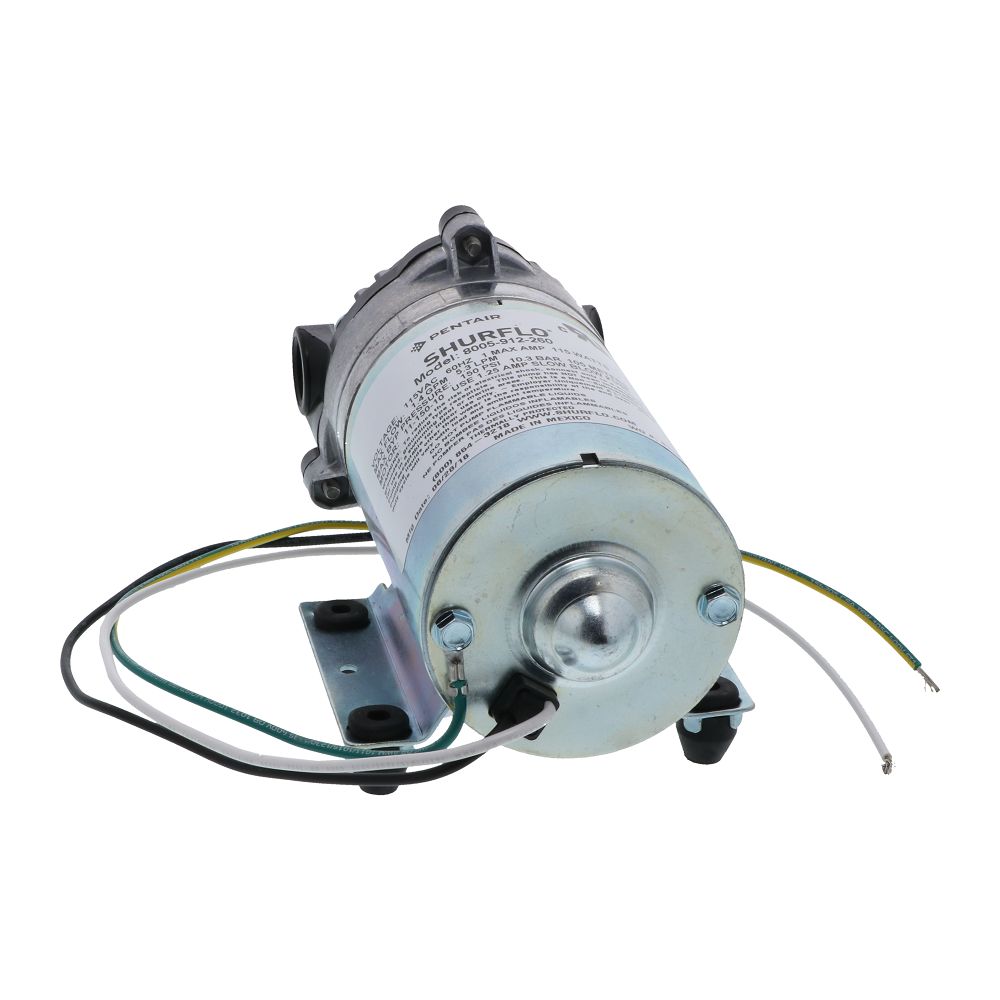

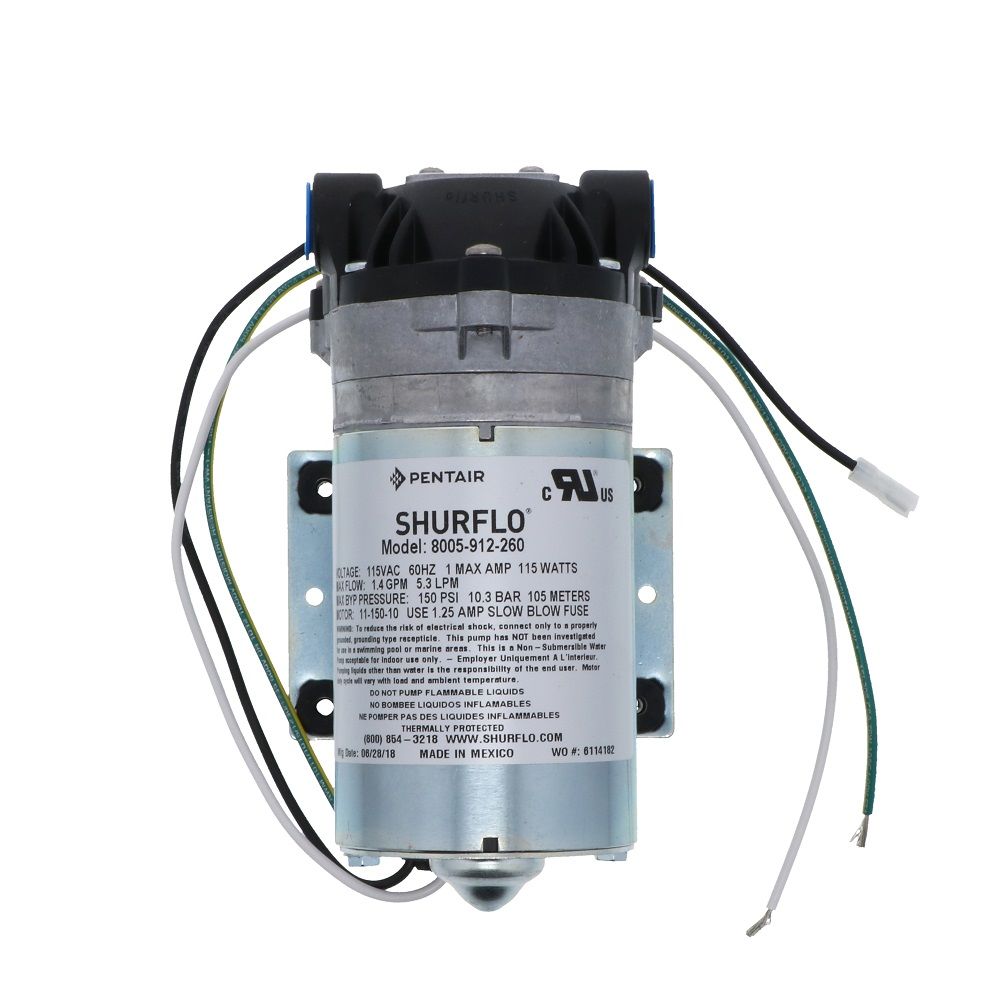

SHURflo 8005-912-260 Demand Pump 1.5 gpm 150 psi 115VAC

The SHURflo 8005-912-260 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM. The pump can be mounted in any position, is compact and is designed for long trouble-free life.

Features:

1.5 GPM flow rate
150psi internal bypass
Can run dry without damage
3/8" NPT female ports
Santoprene® diaphragm
Built-in check valve
UL Recognized Component
NSF and CSA listed

Applications:

Water delivery

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Diaphragm Materials	Santoprene
Housing Material	Zinc Plated Steel
Inlet Connection	3/8" FPT
Inlet Pressure	30 PSI
Outlet Connection	3/8" FPT
Power Source	no cord
Psi Bypass	150 PSI
Pump Max Flow Rate (Gpm)	1.4
Pump Max Pressure (Psi)	150
Series	8000
Size	3/8"
Voltage Type	AC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	7.5
Product Width	4
Product Weight (lbs)	5.5

Product Details
Diaphragm Materials	Santoprene
Housing Material	Zinc Plated Steel
Inlet Connection	3/8" FPT
Inlet Pressure	30 PSI
Outlet Connection	3/8" FPT
Power Source	no cord
Psi Bypass	150 PSI
Pump Max Flow Rate (Gpm)	1.4
Pump Max Pressure (Psi)	150
Series	8000
Size	3/8"
Voltage Type	AC
Wire Option	Bare Wire
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	23.75 in.
Shipping Width	18 in.
Shipping Height	6.25 in.
Product Weight & Dimensions
Product Height	6.25
Product Length	23.75
Product Width	18
Product Weight (lbs)	30.806

SHURflo 8005-912-260 Demand Pump 1.5 gpm 150 psi 115VAC Manual
